Probe MMCX adaptor 3,5mm
Professional-grade PCBite handsfree probe accessory for hardware development, debugging, and bringup.
// also available at
// description
Product Description.

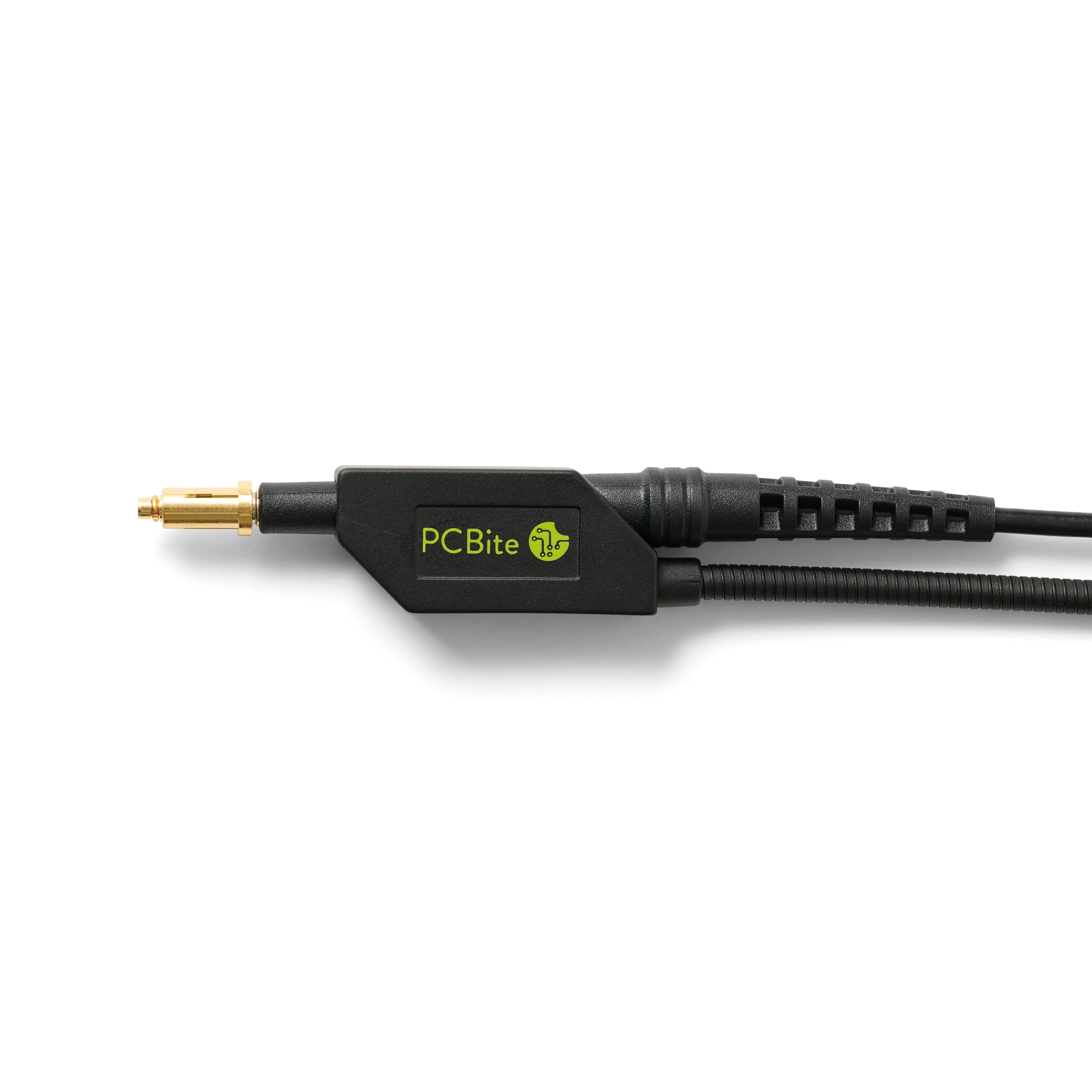

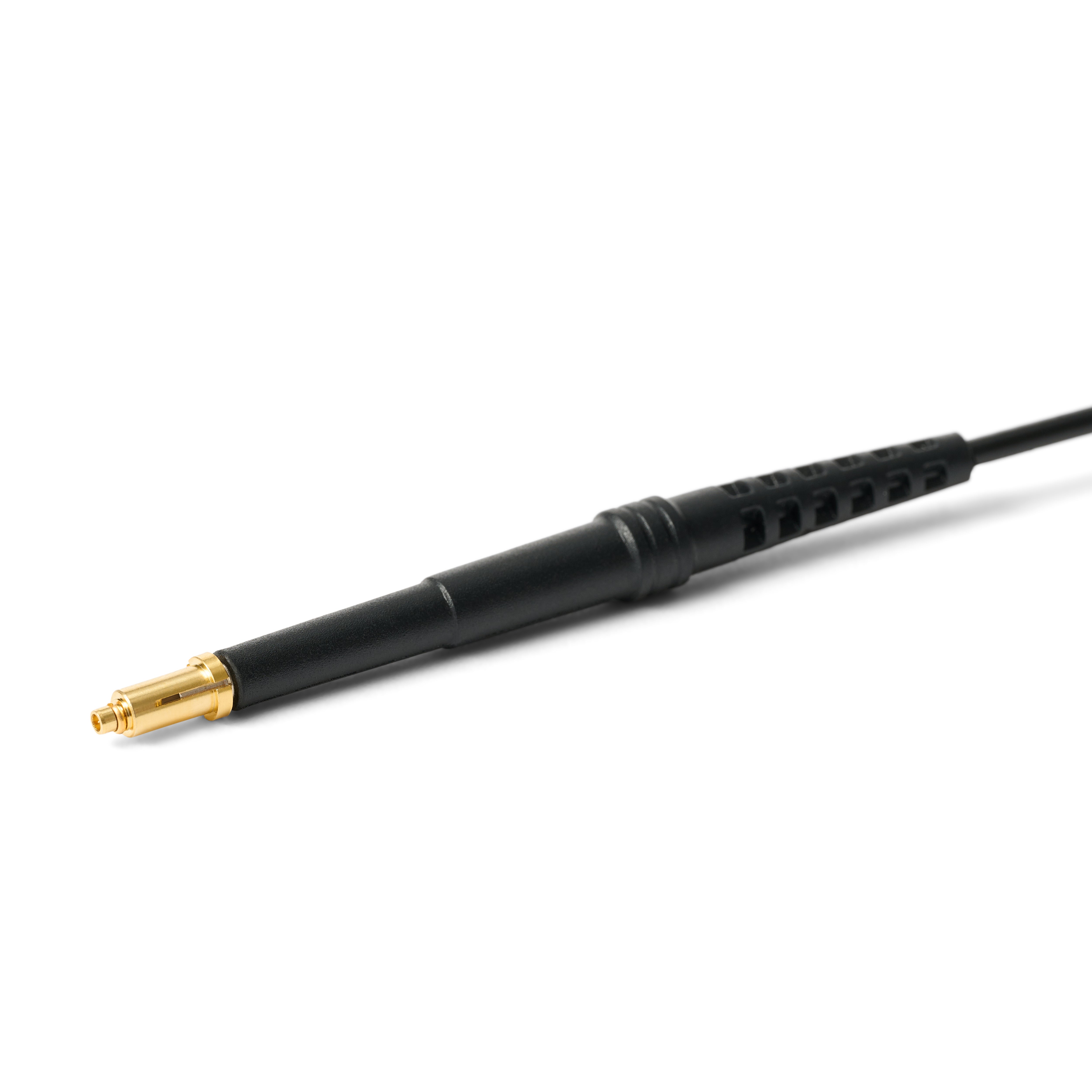

Expand the capabilities of your PCBite probe with our MMCX Probe Adapter, a game changer for reducing noise in sensitive measurements.

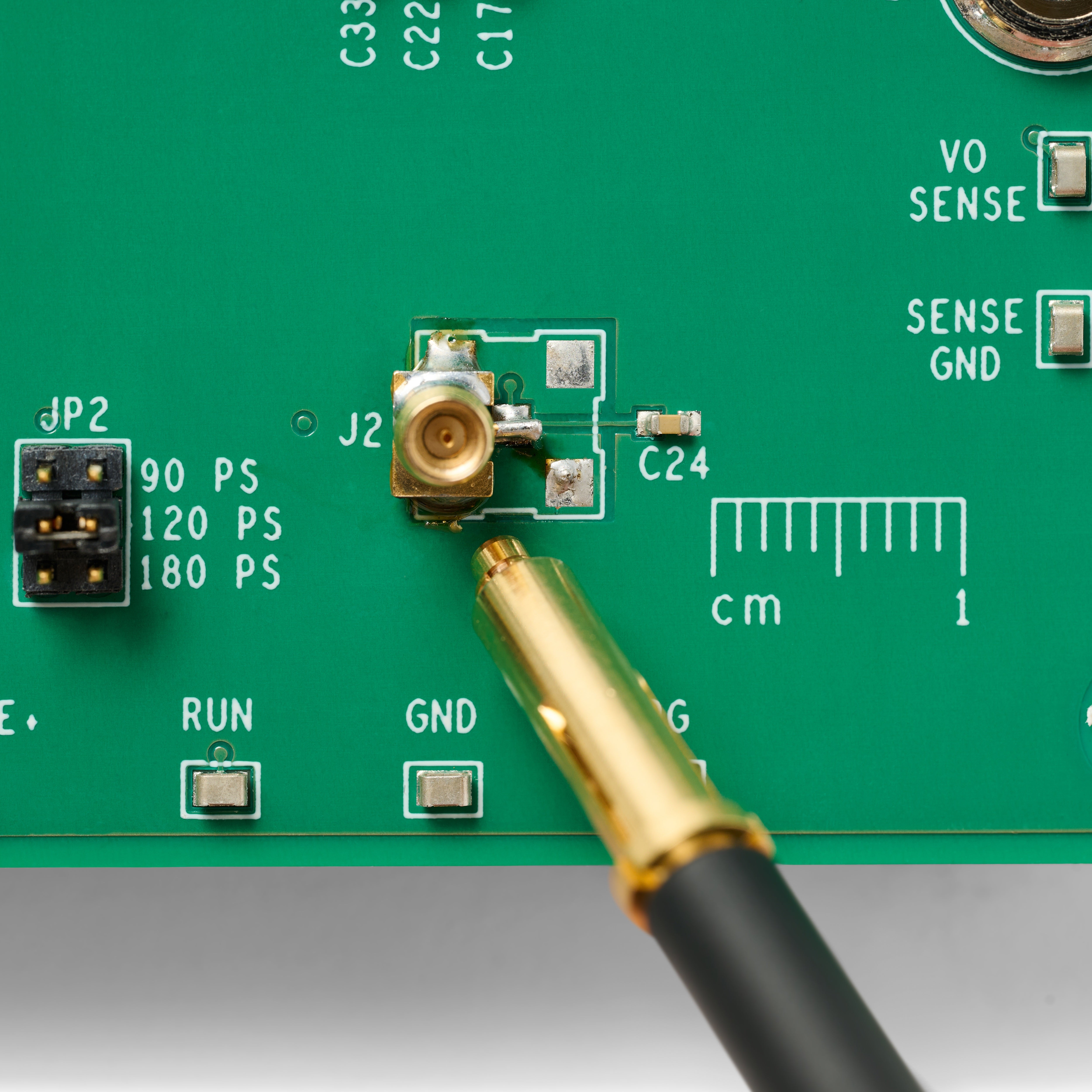

By connecting the probe signal and ground directly to an MMCX connector, the adapter drastically shortens the ground path, virtually eliminating noise pickup.This is especially critical when testing and verifying sensitive applications such as power supply designs and analog circuits, where clean signal integrity is essential.Bandwidth with MMCX adapter (-3dB): SQG15AC and SQG15DC, No bandwidth limitation >1.5GHz SQG30AC and SQG30DC, Bandwidth limitation ~2.6GHzMMCX adapter increases the length of signal reducing the bandwidth of the SQG30AC and SQG30DC probes.
The probes with MMCX adapter can continue to measure above the stated bandwidth but with decreased signal.
// what's included
In the box.

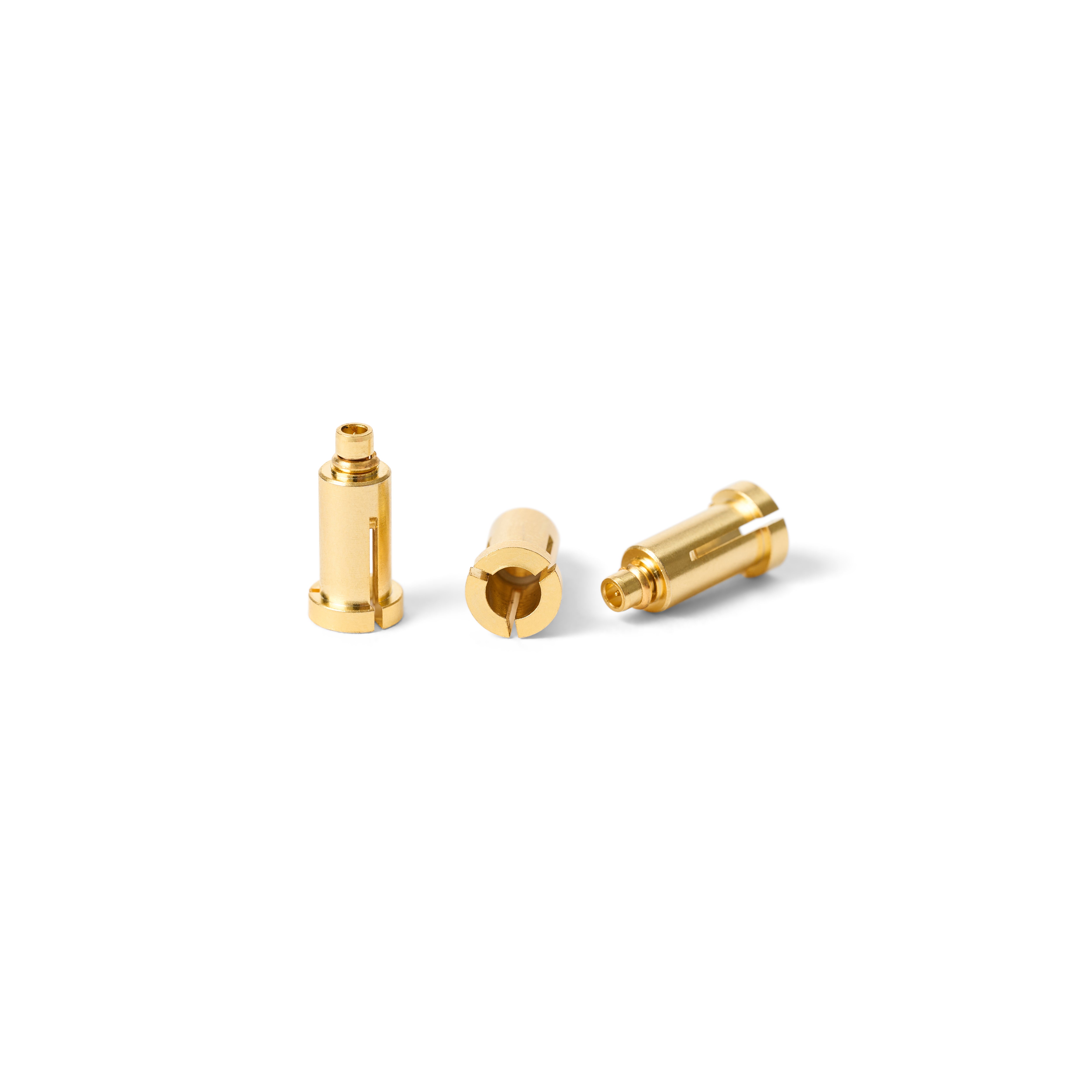

- 1x MMCX adaptor. Compatible with the following Sensepeek PCBite high frequency probes: SQG15-AC, SQG15-DC, SQG30-AC, SQG30-DC.

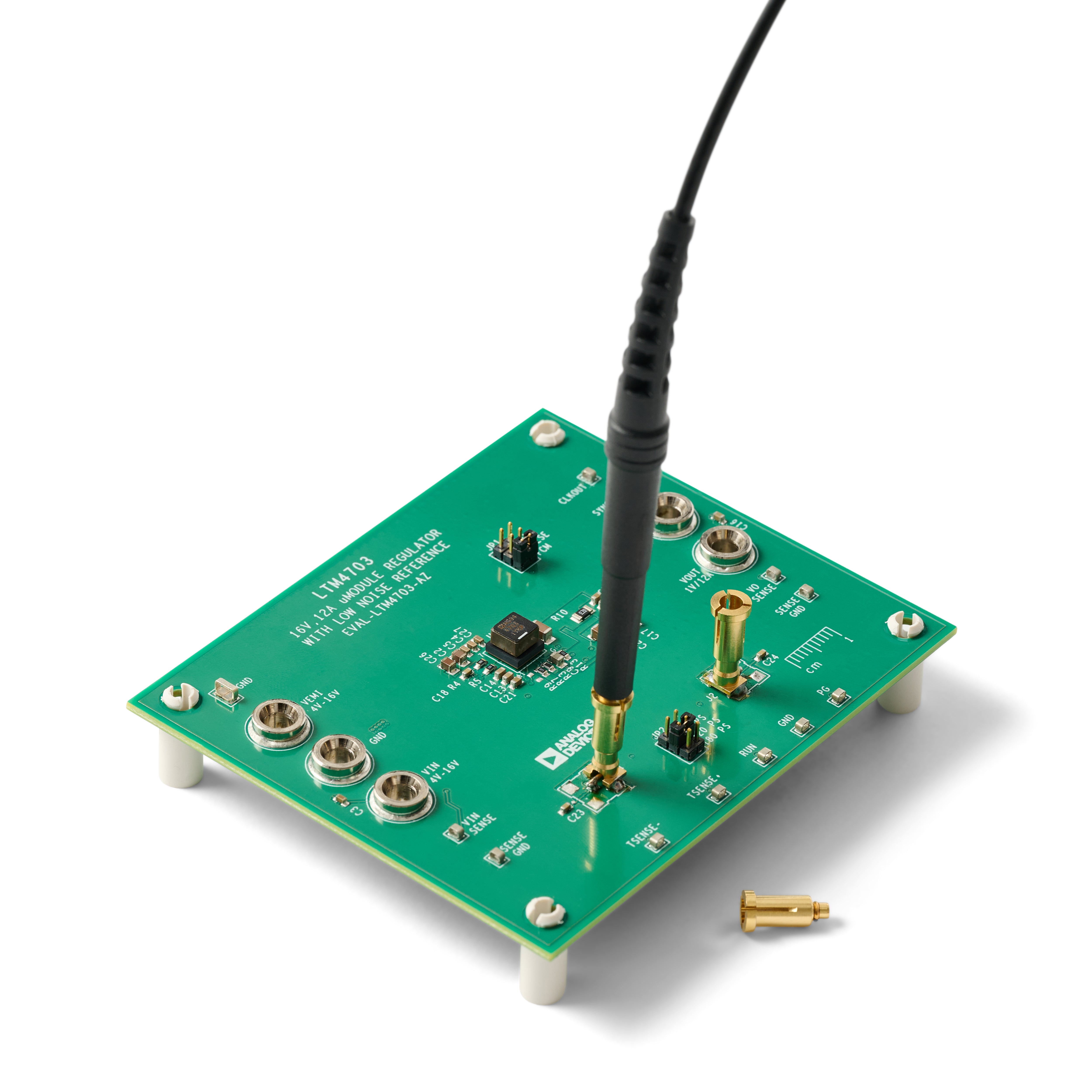

Not included: Probe or probeholder shown on picture.
