SP100 - 100 MHz Oscilloscope Probe

Discontinued We're huge fans of the Sensepeek PCBite probe kit, and this oscilloscope probe is the perfect add-on to it.

The first truly handsfree 100MHz 10:1 oscilloscope probe!

Makes instant measurements or long triggering sessions a breeze.

No more soldering wires to connect your probe or complicated tools to setup, just positioning the probe needle on any test point or component in the signal path and release.

Saves time and frustration during development, verification and repairs.

The minimalist design and the spring loaded test needle makes it possible to simultaneously measure on fine pitch components and nearby signals.

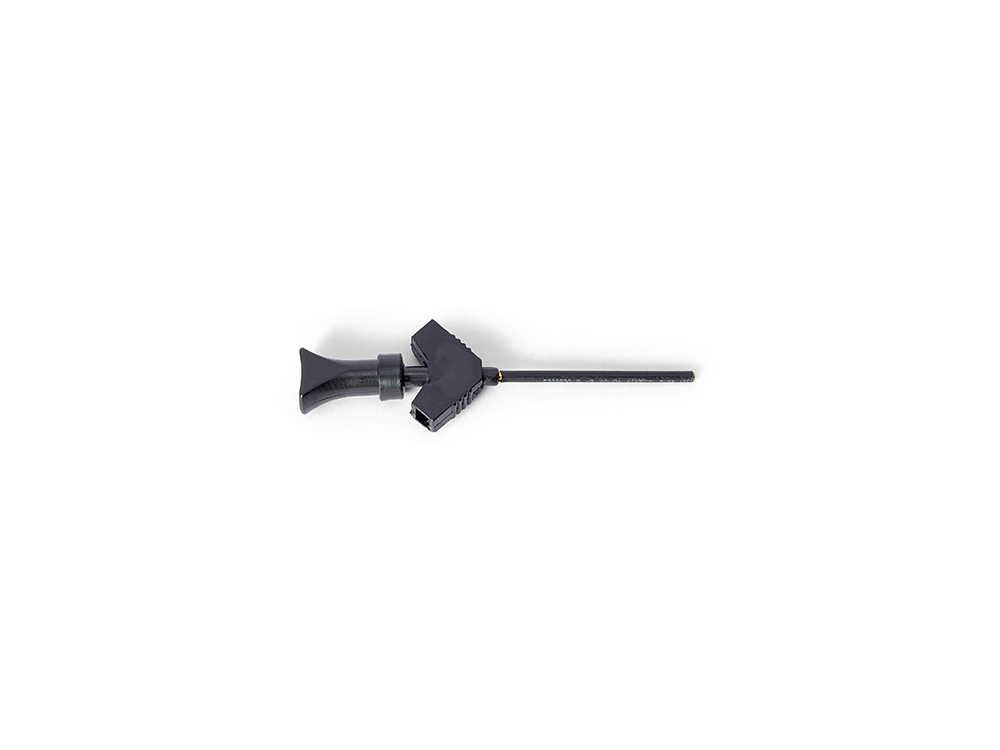

The ground probe connection has a detachable quality hook and the cable fits directly on a 2.54mm (0.100”) pitch pin header.

The SP100 comes with a powerful magnet in the base, as for all PCBite probes and holders which makes the probe easy to place and reposition.

This probe is perfect for those who already have a PCBite Kit.

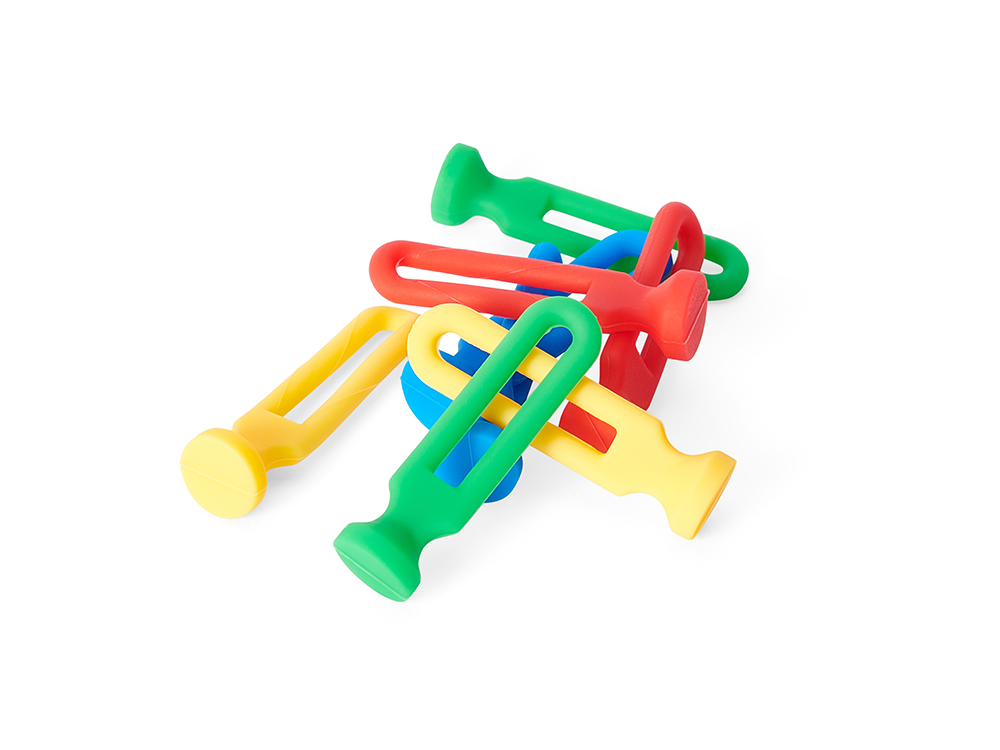

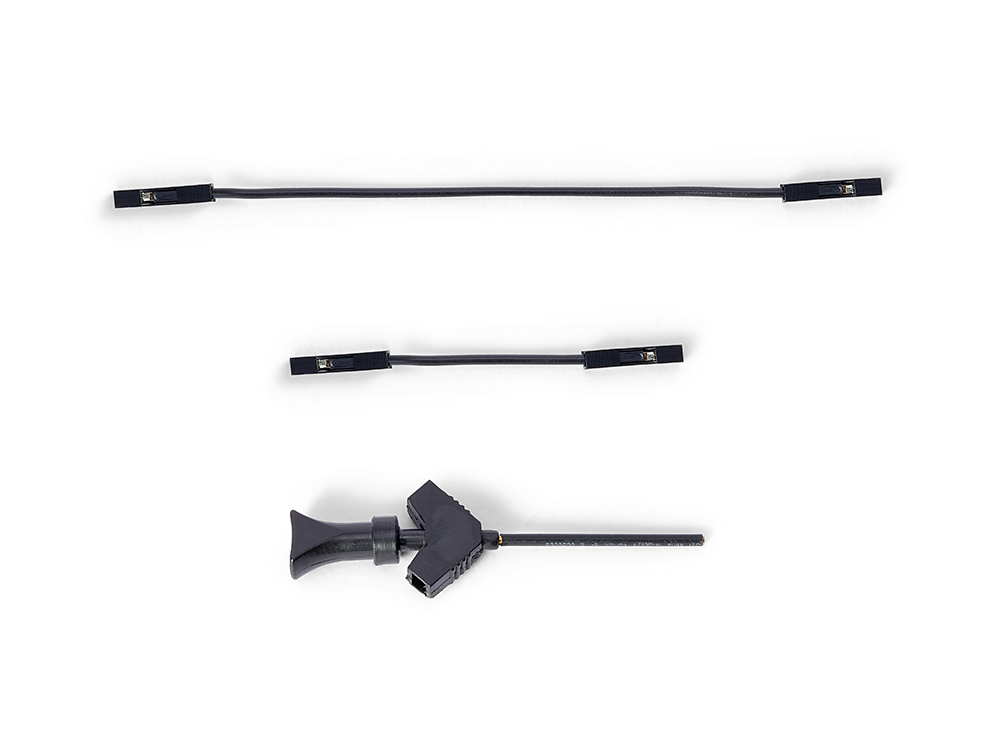

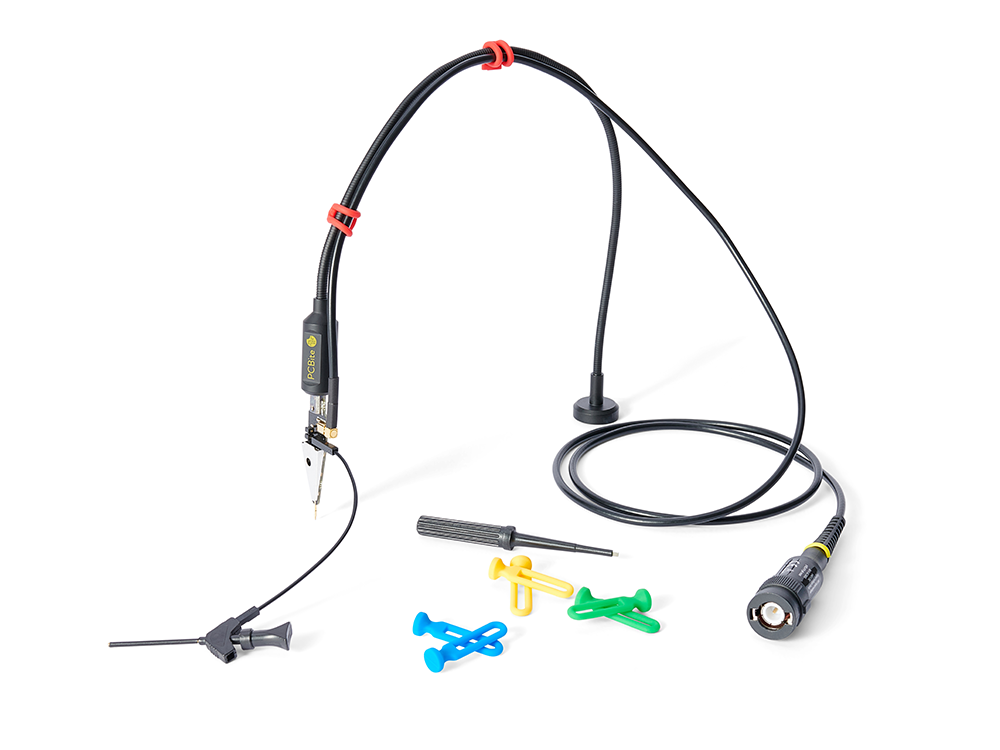

The following items are included in the package: 1x SP100 - 100 Mhz handsfree oscilloscope probe 1x Testhook with detachable cable for ground connection 1x Set of color coded cable holders(4 colors) 1x Extra test needle You can find the official user's guide and performance data for this product published by Sensepeek here: User's Guide Performance Data
