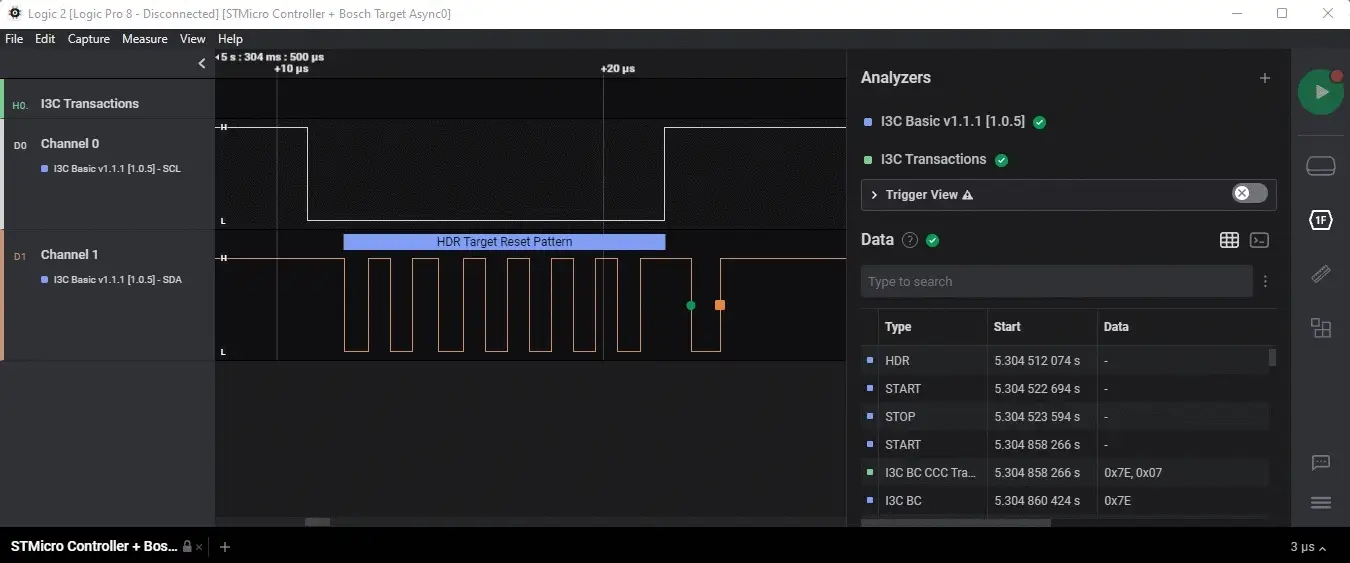

I3C Basic Protocol Analyzer.
Premium Plugin for Saleae Logic.
Binho is proud to introduce the first I3C Basic℠ Protocol Analyzer for firmware development and embedded systems testing. Leave that stack of silicon-validation equipment in the lab, speed up development, and save a pile of money — all at the same time.
// key features
What it does.
- Support for I3C Basic℠ Specification v1.0, v1.1, v1.1.1, and v1.2
- Support for 12.5 MHz SDR, HDR-DDR, and HDR-BT Modes
- Direct & Broadcast CCC Command Decoding
- Support for In-Band Interrupts and Hot-Join Requests
- Support for Private Read & Private Write
- Support for Multi-lane Transfers
- Byte-Level and Transaction-Level Decoding
- Real-Time Decoding & HLA Support
- Support for Automated I3C Testing
- World-class technical support from I3C Experts
// applications
Where it fits.
From firmware bring-up to production validation, the analyzer plugs into the workflow.
Firmware Development & Testing
Debug and validate I3C firmware implementations with real-time protocol decoding.
Device Driver Development & Testing
Accelerate driver development with detailed transaction analysis.
Automated Hardware Testing
Integrate protocol analysis into automated test frameworks.
Performance Analysis
Measure and optimize I3C bus utilization and timing.
MCTP over I3C / BMC
Debug Management Component Transport Protocol implementations.
DDR5 / JESD300-5 SPD
Analyze Serial Presence Detect implementations for DDR5 memory modules.
NVMe-MI
Decode NVMe Management Interface traffic tunneled over I3C for SSD and storage-device management.
IOs over I3C Bridge
Trace GPIO expansion and I/O bridging as devices extend control pins across the I3C bus.
// compatibility
Works with the Saleae stack.
Software Compatibility
-
Saleae Logic 1.x
Version 1.2.29 and up
-
Saleae Logic 2.x
Version 2.3.43 and up
-
Cross-Platform Support
Windows, Mac, & Ubuntu
Hardware Compatibility
-
Saleae Logic MSO
Full compatibility including analog analysis
-
Saleae Logic Pro 8 / Pro 16
Full compatibility
-
Saleae Logic 8
I3C bus voltage cannot be less than 1.8V
Note: this analyzer plugin requires hardware and software from Saleae. Saleae Logic desktop software is available free of charge for use with their hardware devices.
// licensing
Flexible licensing.
Two tiers of functionality — only pay for the features you'll use.
Flex Licensing
Our flex licensing allows the license to be shared among team members working on internet-connected PCs. Perfect for teams that need flexible access across multiple developers.
- Shared among team members
- Internet connection required
- No license server setup required
- Works with any Saleae Logic device
Node-Locked Licensing
Node-locked licenses work on computers without internet access, with no tedious license-server setup required. Ideal for secure or isolated development environments.
- Locked to specific computer
- No internet required
- Works in secure environments
- Works with any Saleae Logic device
// what's included
In the download.
A purchase of the I3C Basic℠ Analyzer Plugin for Saleae Logic includes the following digital files:
-
I3C Basic Analyzer Plugin binaries for:
- › Windows (.dll)
- › macOS (.so)
- › Linux (.so)
- I3C Transactions HLA Extensions
- Automation API Example Scripts (Python)
- Example I3C Capture files (.sal)
- Getting Started Guide [PDF]
- Analyzer Datasheet [PDF]
// request a quote
Get pricing.
Interested in the I3C Basic℠ Protocol Analyzer Plugin? Fill out the form and we'll get back to you with pricing information.
// our edge
We don't just follow the I3C spec.
We don't watch from the sidelines. Plugfest after plugfest, our team is in the room where vendor I3C implementations come together — finding edge cases, debugging quirks, and validating real silicon against the spec.
// plugfest
4 years in a row at the MIPI I3C Plugfest.
We brought the analyzer to every I3C Plugfest since 2022 to confirm its performance against existing and upcoming I3C devices — the strongest proof that the analyzer reads real silicon correctly, not just spec-compliant captures.
// 01
Munich
June 2022
// 02
San Jose
June 2023
// 03
Taipei
September 2024
// 04
Warsaw
June 2025
// mipi alliance
Binho is a MIPI Alliance
Contributor Member.
Active in the I3C Working Group since 2023. Our founder, Jonathan Georgino, currently serves as co-vice chair of the I3C Working Group.
// track record
We've been doing this for years.
Long enough to know where the gotchas live.
// 01 · standards
We help write the spec.
Binho is a MIPI Alliance Contributor Member, actively shaping I3C — a foundational protocol for cutting-edge embedded systems.
// 02 · tools
We build the tools.
200+ semiconductor companies use Binho tools to develop, validate, and ship devices with I3C protocol support.
// 03 · plugfests
We prove it in the field.
We've verified our tools at the past 4 MIPI I3C Plugfests — and helped others verify theirs too.
// trusted by engineering teams at
MIPI® and I3C® are registered trademarks owned by MIPI Alliance. I3C Basic℠, Debug for I3C℠, I3C HCI℠ and DisCo for I3C℠ are service marks of MIPI Alliance. Saleae® and Saleae Logic® are registered trademarks owned by Saleae Inc.
Accelerate your
I3C development.
Ready to take your I3C development to the next level? Schedule a live demo or reach out with questions.
