XyphroLabs USBGpib V2
German-engineered USB to GPIB adapter for legacy IEEE-488 instruments — full standards compliance, slim profile, and cross-platform support.
Official XyphroLabs product. This is the genuine USBGpib V2 from XyphroLabs. Your purchase directly supports the ongoing development and maintenance of this open-source project.
// description
Product Description.
The USBGpib V2 provides modern USBTMC connectivity for legacy GPIB instruments, offering a reliable, compact, and future-proof solution for test and measurement automation. Designed and developed in Germany over six years, this adapter has been extensively tested across instruments from new to decades-old, ensuring robust compatibility and operation.
With its slim 1.5 cm profile and thin USB cabling, the USBGpib V2 dramatically reduces bench clutter compared to traditional "garden hose" GPIB cables. Each adapter includes a unique identifier, allowing multiple units to be connected and operated reliably on the same PC without port mapping issues.
The adapter implements full IEEE-488.2 support via USBTMC, including status byte reading, triggering, service requests, and termination settings. It works seamlessly with all standard VISA providers (NI VISA, Rohde & Schwarz VISA, Keysight VISA) and integrates fully with LabVIEW, MATLAB, PyVISA, and PyVISA-py. Cross-platform support includes Windows, macOS, FreeBSD, and Linux.
// key features
Designed for your test bench.
// connectivity
Modern USBTMC connectivity.
- Converts legacy GPIB instruments into standard USB test devices
- Full IEEE-488.2 support via USBTMC protocol
- Status byte reading, triggering, and service requests
- Transparent operation like modern USB measurement equipment
// form factor

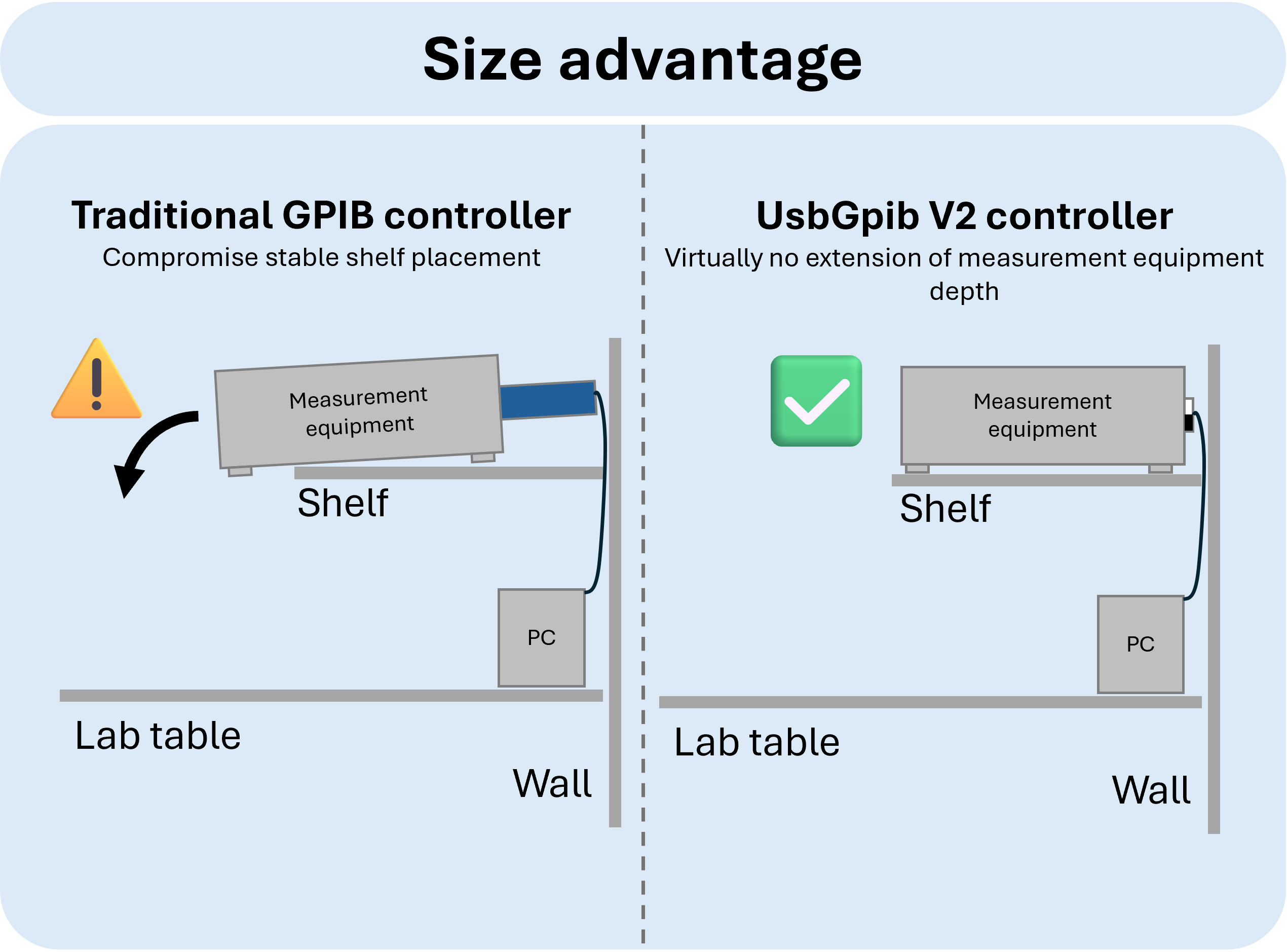

Compact & practical.

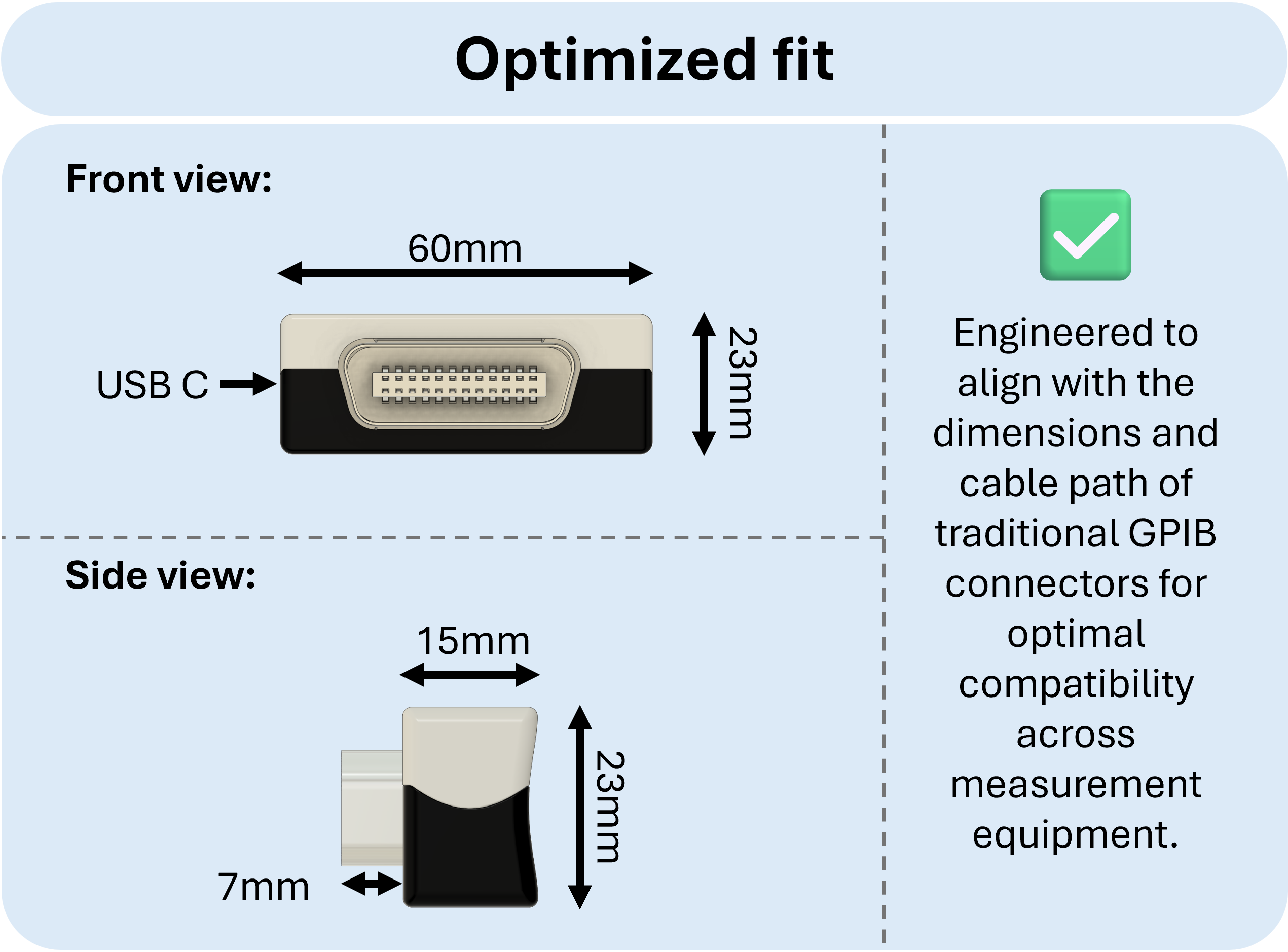

- Slim 1.5 cm depth for space-efficient installation
- Thin USB cables that reduce bench clutter
- Lets instruments sit closer to walls
- Lightweight 30 g design for portability
// multi-adapter
Multi-adapter support.
- Unique identifier per unit
- Multiple adapters on the same PC, reliably
- No COM port mapping issues
- Consistent accessibility across multiple machines
// cross-platform

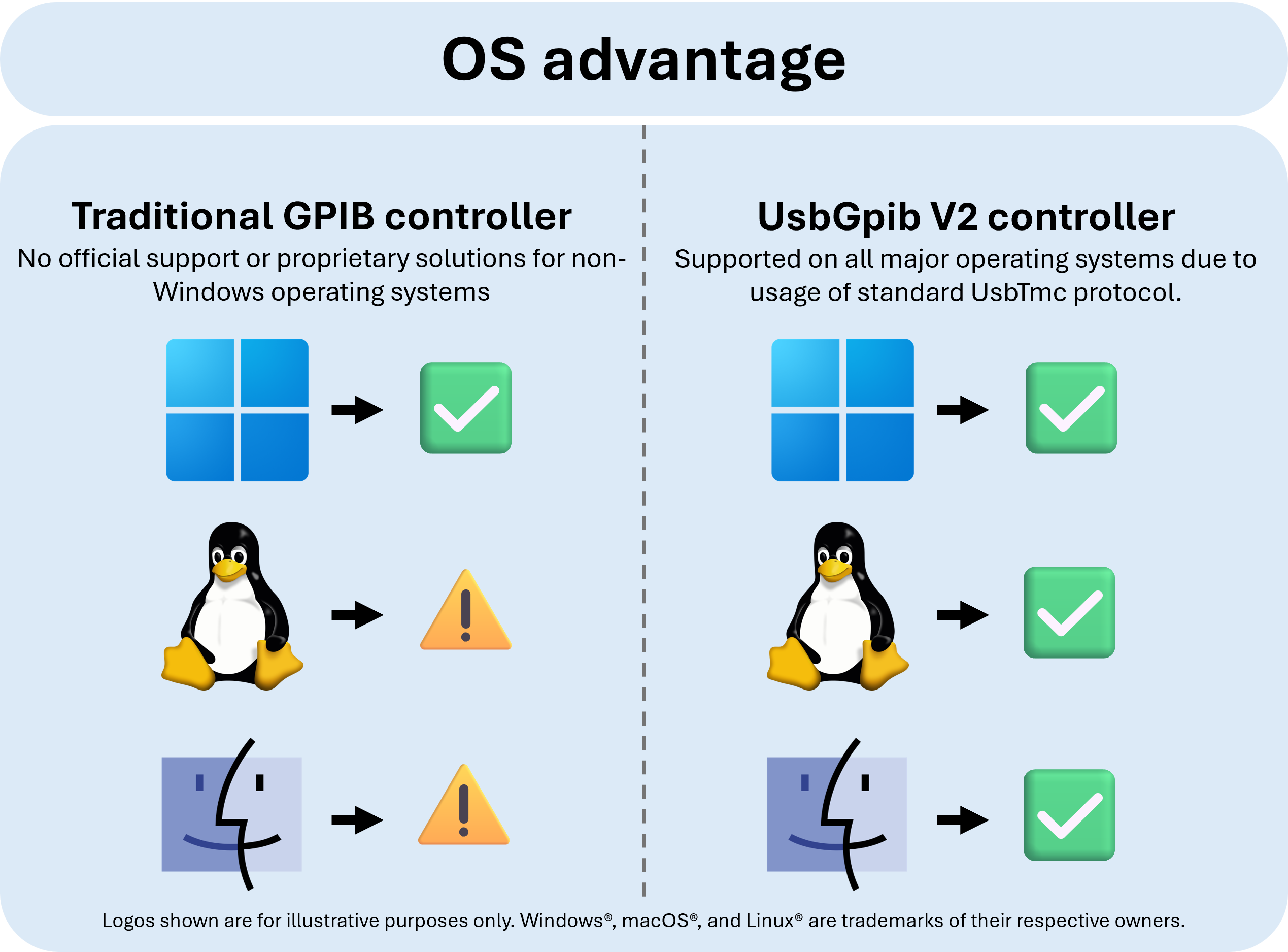

Cross-platform support.
- Windows, macOS, FreeBSD, and Linux
- No custom drivers required
- Standard USBTMC class compliance
- USB 2.0 interface, bus-powered
// tool integration
Drops into existing toolchains.
- All standard VISA providers supported
- LabVIEW, MATLAB, PyVISA, PyVISA-py
- Drop-in solution for established workflows
- Compatible with modern automation tools
// reliability
Reliability & support.
- German-engineered over 6 years of development
- Extensively tested with decades of instruments
- Field-upgradeable firmware
- Active maintenance and updates
// applications
Target Use-Cases.
- Legacy Instrument Modernization
- Automated Test Equipment (ATE)
- Laboratory Measurement Systems
- Research & Development Testing
- Industrial Measurement & Control
- Production Test Benches
// specifications
Technical specifications.
- Interface
- USB 2.0 to IEEE-488 Bus, USB Test & Measurement (USBTMC) protocol
- Compliance
- HPIB, GPIB, IEEE-488.1, IEEE-488.2 compatible; USB TMC 488.2 including service request
- Operating Systems
- Windows, Linux, macOS, FreeBSD
- Power Supply
- Bus-powered via USB
- Connectors
- USB Type-C and IEEE-488 (24 pin)
- Dimensions
- 60 mm × 23 mm × 15 mm (W × H × D)
- Weight
- 30 g (adapter only) · 85 g (packaged)
- Enclosure
- 3D-printed plastic
- Country of Origin
- Germany
- RoHS Status
- ROHS3 compliant
// compatible instruments
Decades of instruments. Verified.
A partial list — USBGpib V2 is compatible with any IEEE-488.2 compliant instrument.
Rohde & Schwarz
- FSV Spectrum Analyzer
- SMU200A Signal Generator
- ZNB Vector Network Analyzer
- RTO Oscilloscope Series
Keysight (Agilent/HP)
- E3631A Power Supply
- 34401A Multimeter
- E4428C Signal Generator
- E5071C Network Analyzer
- DSO-X Series Oscilloscopes
Tektronix
- TDS2000 Series Oscilloscopes
- AFG3000 Function Generator
- Keithley 2000 Multimeter
- Keithley 2400 SourceMeter
Other Manufacturers
- Gould Digital Oscilloscopes
- Fluke Multimeters
- And many more legacy instruments
Ready to Modernize
Your Legacy GPIB Instruments?
Add the USBGpib V2 to your test bench and bring your classic instruments into the modern era.
