Instrumenting an I3C bus is a common challenge faced by developers and a question we often receive from our customers. Developed in partnership with Sensepeek, makers of the PCBite line of handsfree probes and soldering, test, and measurement accessories, the Binho I3C Handsfree Probe Pack with PCBite Kit provides a best-in-class debugging experience to I3C circuits with the world’s first and only low-capacitive bidirectional handsfree probe. This passive 1:1 low-capacitance probe is suitable for use with test instruments supporting communication over digital serial interfaces. The solution is specifically tailored to I3C with a total capacitive load < 45pF @ 12.5 MHz.

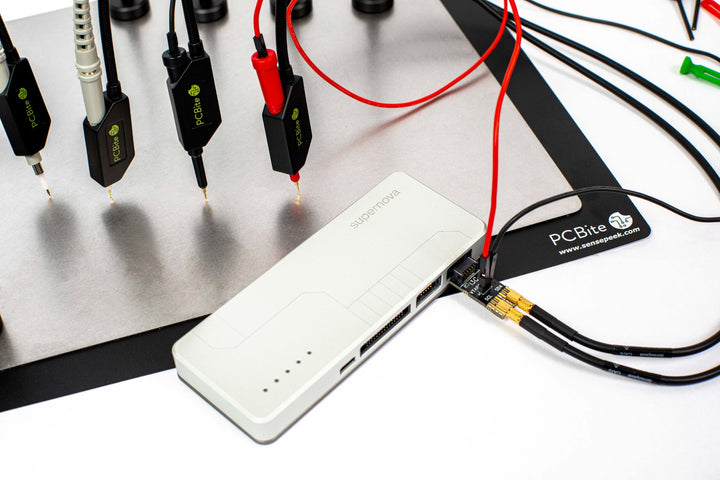

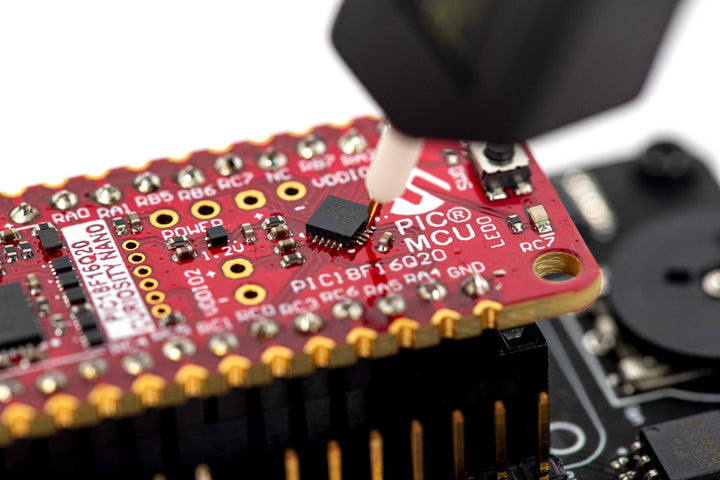

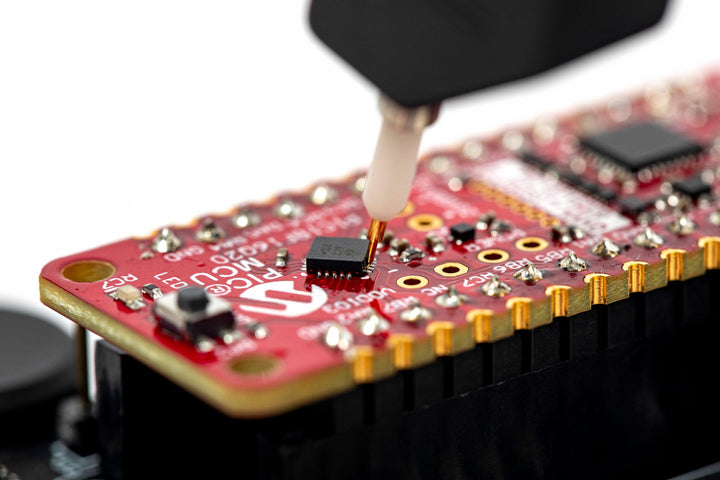

We are pleased to provide this convenient solution which interfaces elegantly with Supernova and Saleae Logic to save time and frustration during development, verification, and rework/repairs. No more soldering wires to connect your probe or complicated tools to set up, just position the probe needle on any test point or component in the signal path and release. The SQ series of probes can be used handheld without the probe holder as they have an insulated grip but their full potential is when used for taking measurements handsfree. Both length and weight of the SQ probes are perfectly balanced to be used with PCBite PCB holders and base plate, which is a requirement for handsfree function.
This kit includes everything you need to get up and running. This kit is ideal for users who do not already have a PCBite kit base plate and holders, or those who would like a full additional setup to add to their test bench.
Key Features
Target Applications
- Handsfree, Solderless debugging
- Firmware Development & Verification
- Proof of Concept Development
- Automated HW/FW Testing
The full product datasheet is available at the link below:
Binho I3C Handsfree Probe Packs Datasheet

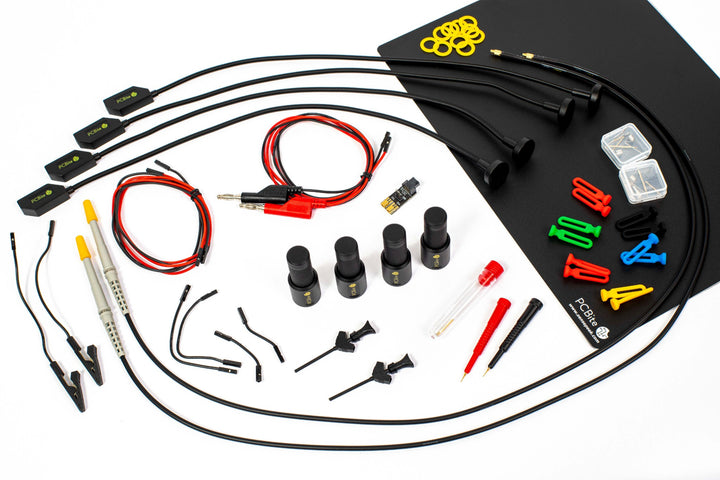

Included Components
The following items are included in the box:
- 2 x Handsfree probes for I3C SCL & SDA signals, including the following items:
- 2 x SQB1 low capacitive bidirectional probes with spring tipped test needle
- 2 x SQ probe holders
- 2 x Test hooks with detachable cables (5cm & 10cm) for ground connections
- 2 x Alligator cables for ground connections
- 2 x Standard ground springs for handheld usage
- 2 x Custom ground springs for handsfree usage
- 1 x Set of color-coded cable holders
- 2 x Probe tip protectors
- 2 x Extra test needles
- 2 x Handsfree Probes for Power & Ground, including the following items:
- 2 x SQ10 probes and pin tipped test needles, red and black
- 2 x Banana to 2.54mm female headers, red and black
- 1 x Set of cable holders, red and black
- 2 x Extra test needles

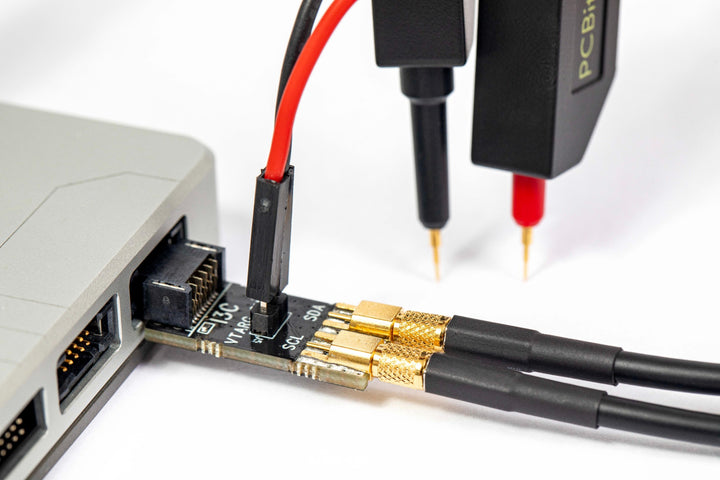

- 1 x Adapter board for Binho Supernova
- 1 x Adapter board for Saleae Logic
- 1 x PCBite Kit, including the following items:
- 4 x PCBite PCB holders
- 1 x Large Base plate (A4)
- 1 x Set of insulating washers
- 1 x Microfiber cloth
- 1 x Insulation Cover
