In Stock - Ships within 48 hours!

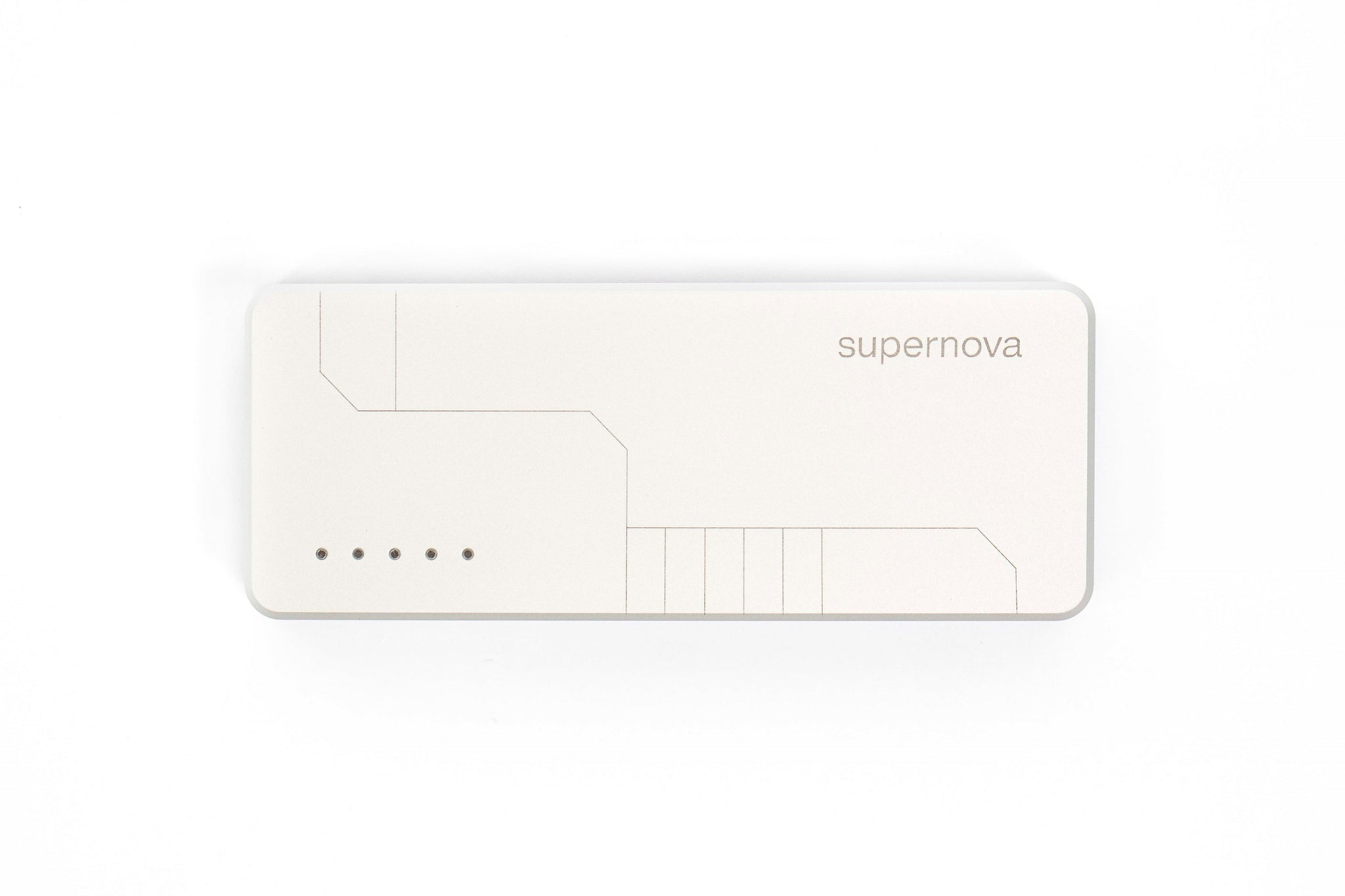

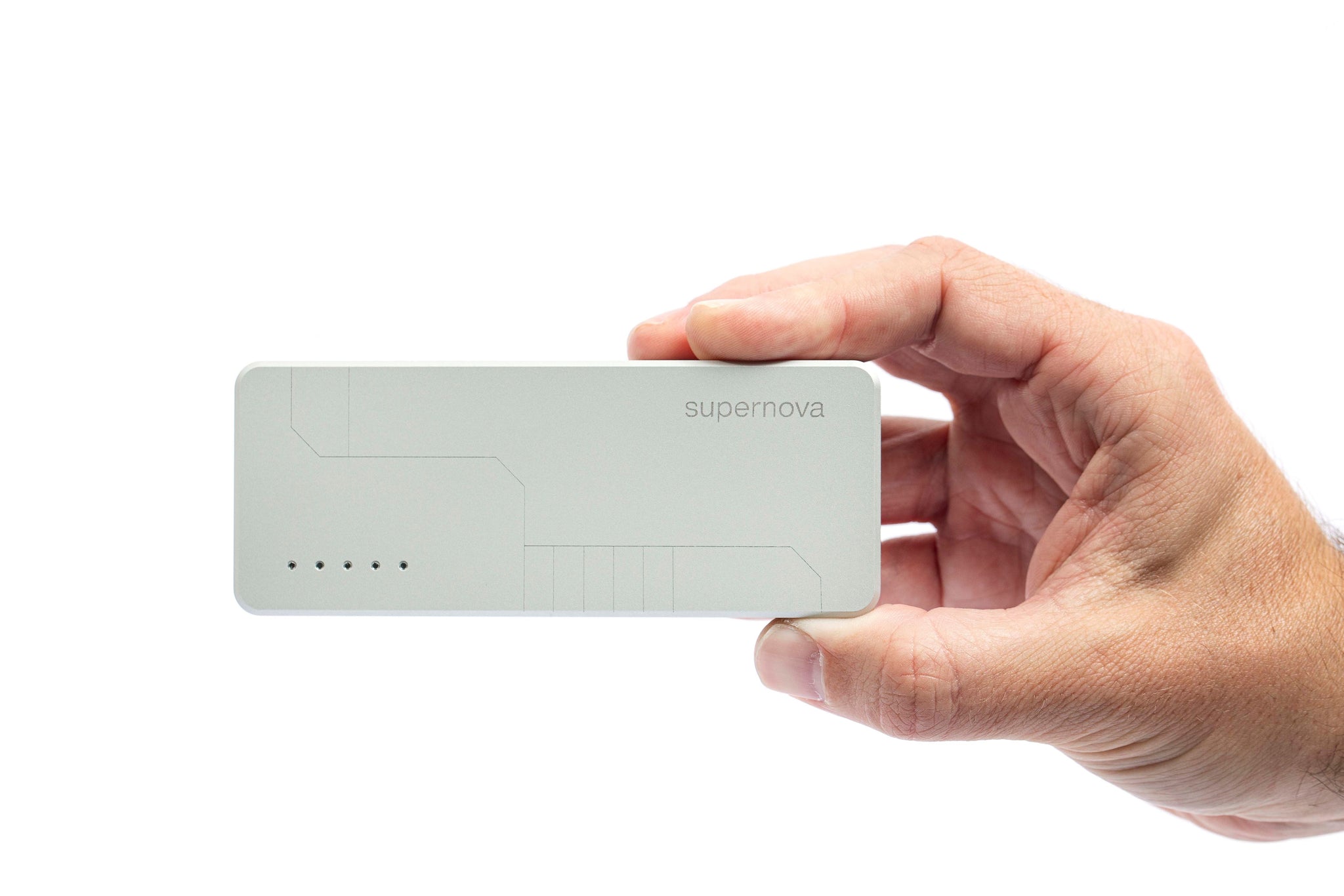

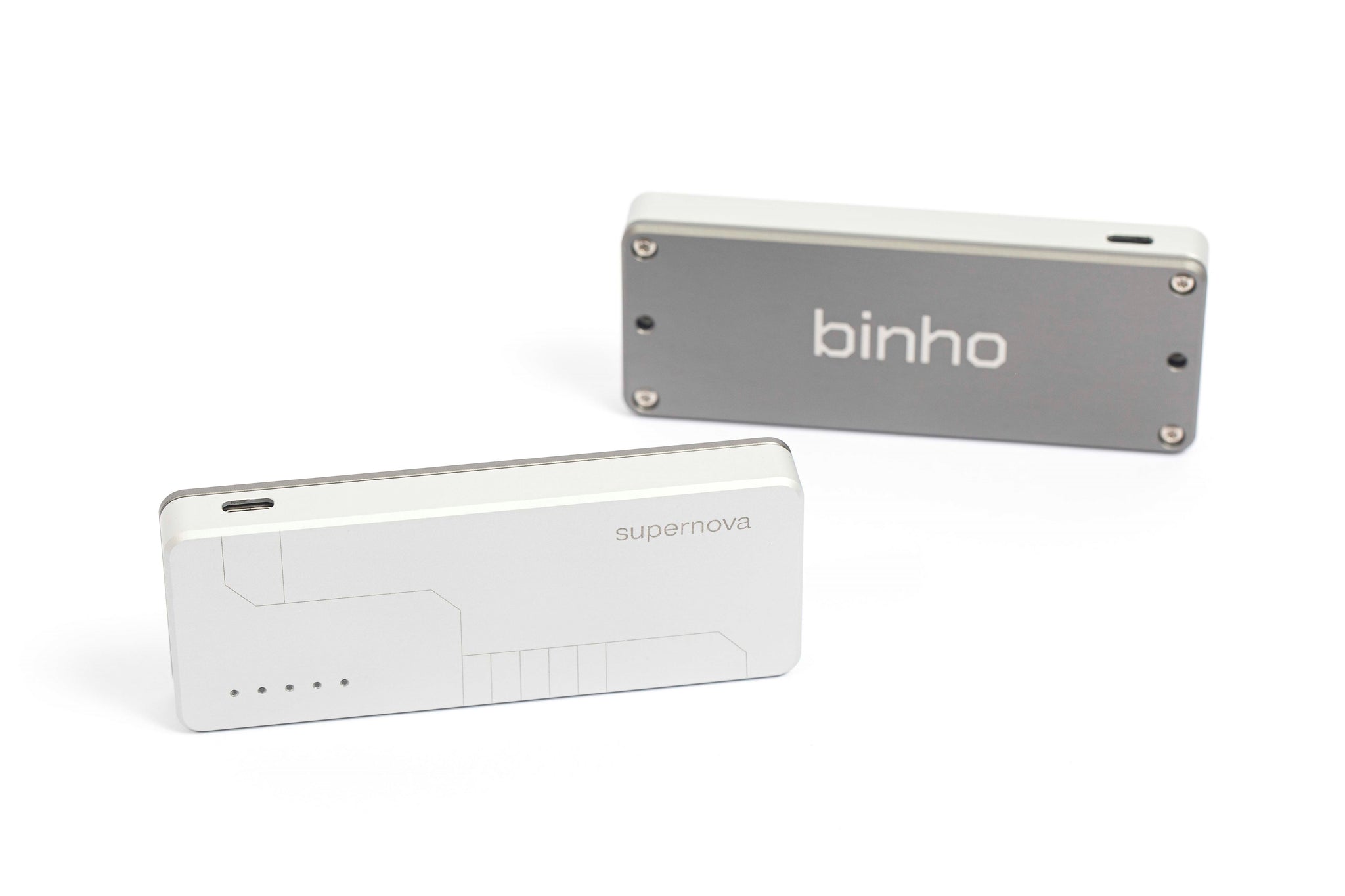

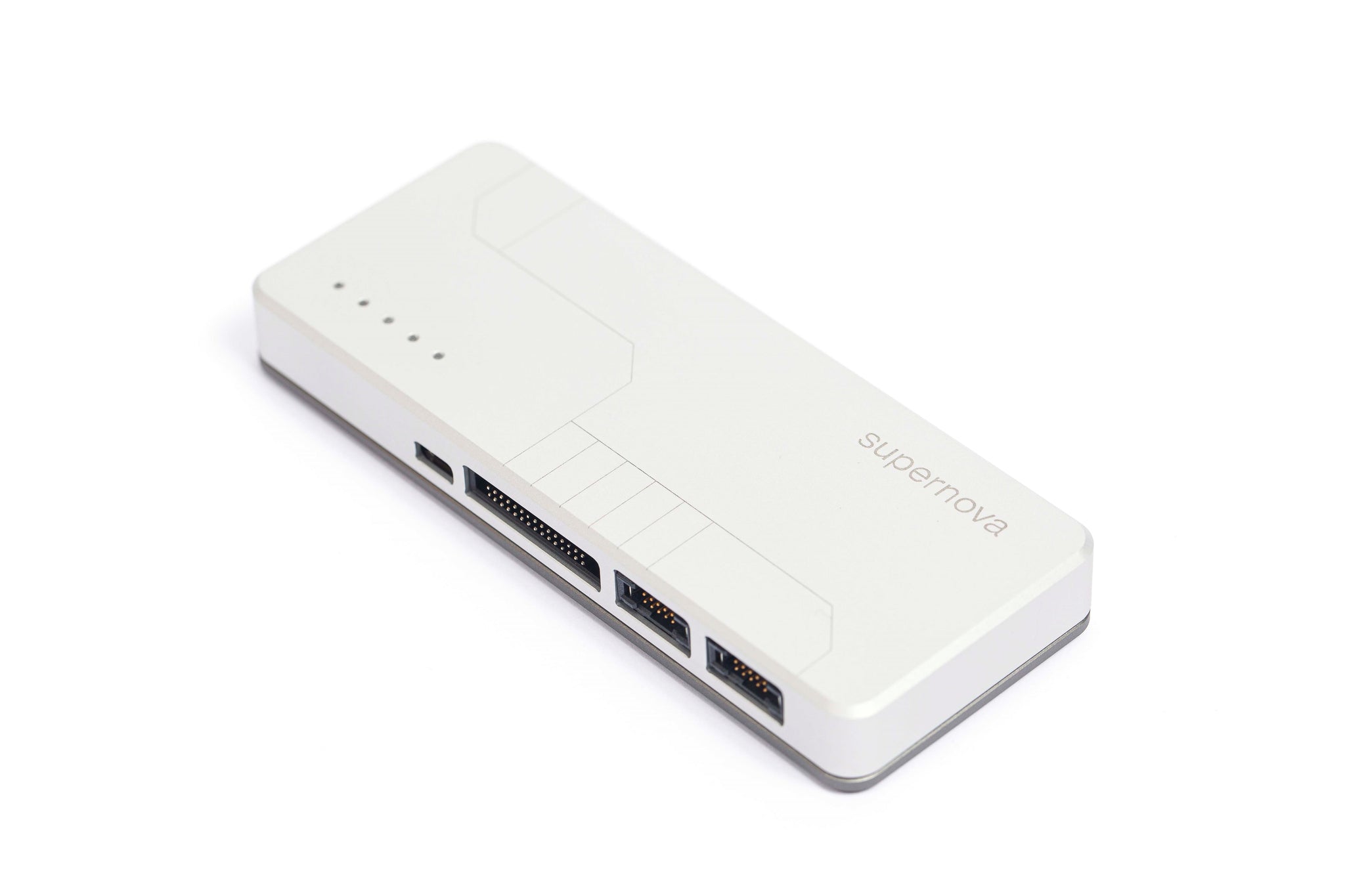

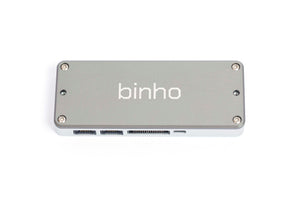

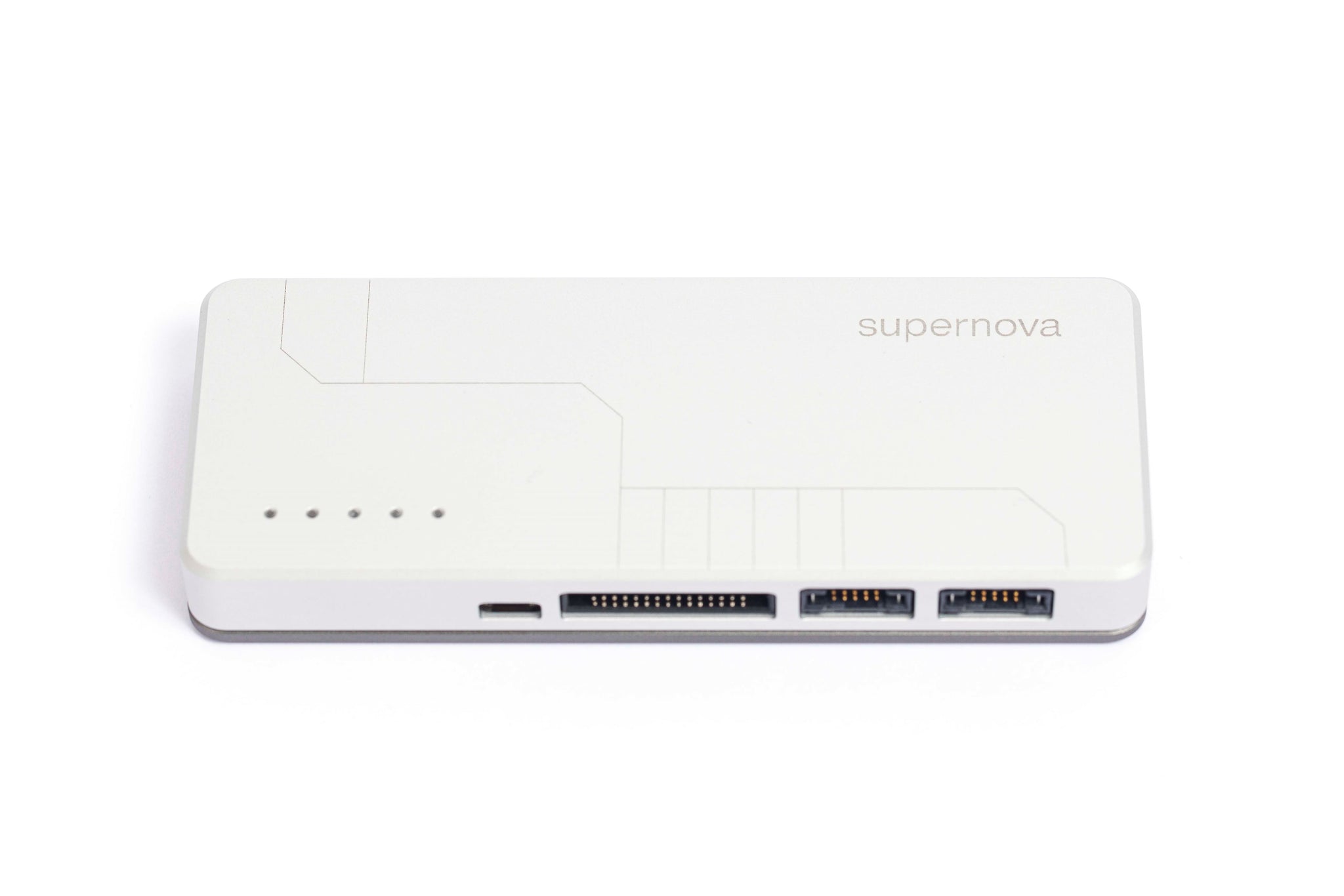

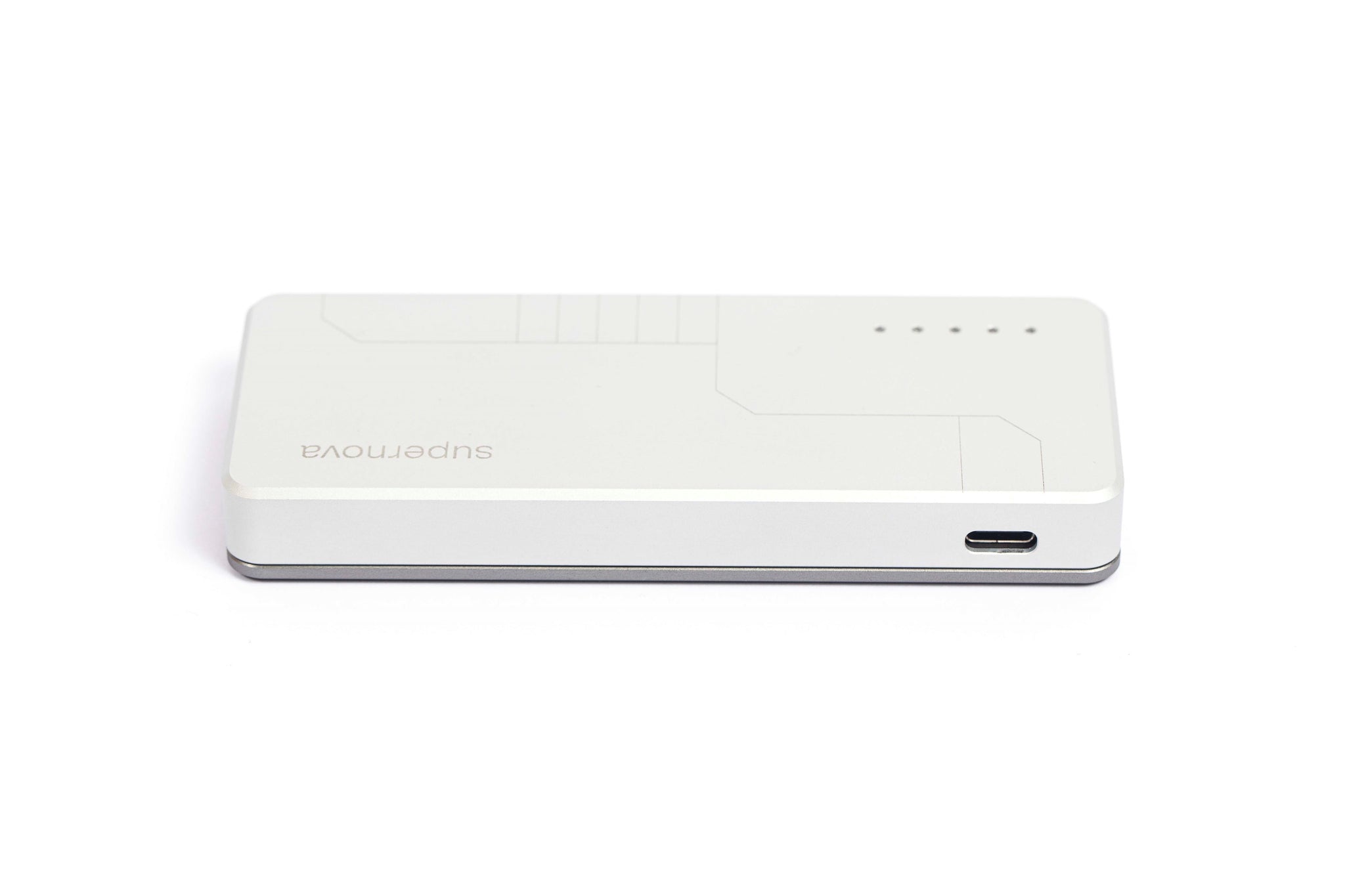

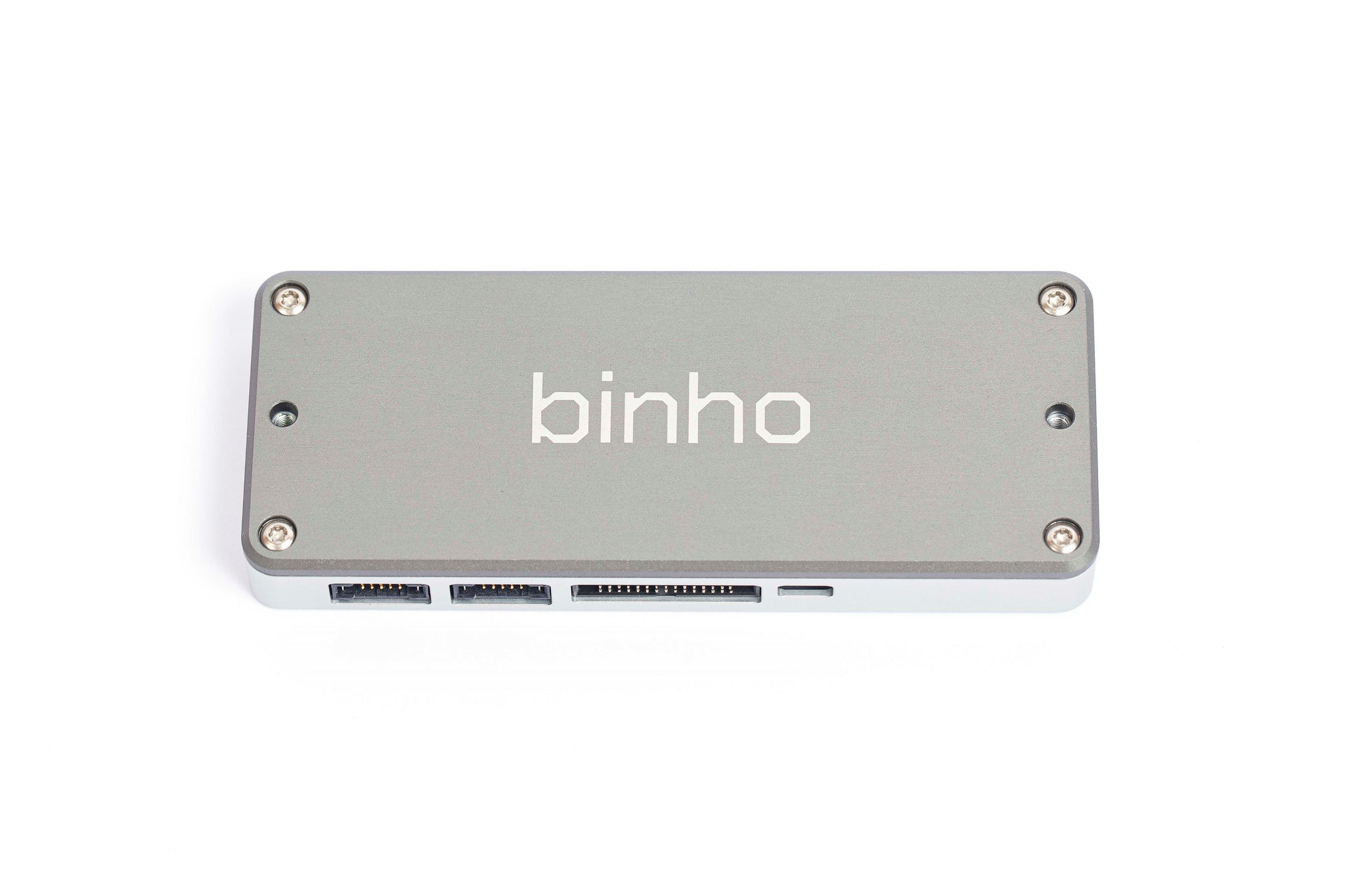

The Binho Supernova USB Host Adapter allows one to interface their computer directly to hardware circuits. Featuring MIPI I3C Protocol v1.1.1 support, the Supernova offers an unmatched value proposition in the test tool market. The Supernova features a modern USB Type-C port for connection to the host PC, 5 x RGB LEDs for visual status indication, and a variety of DUT-facing connections all in a compact, robust machined-aluminum enclosure including integrated mounting holes.
Beyond I3C, the host adapter is able to communicate on several other digital buses: I2C, SPI, and UART. All of these protocols are implemented on their own dedicated pins and can be operated simultaneously. A bank of 6 x dedicated digital GPIO pins can be assigned to other related or unrelated purposes such as GPIO, interrupts, resets, chip selects, etc, as well as operating as digital PWM outputs (coming soon).
Key Features
Target Applications
- Device Driver Development
- Firmware Development & Verification
- Proof of Concept Development
- Automated HW/FW Testing
- FLASH & EEPROM Programming
- NVMe-MI (MCTP over I3C) & JESD300-5 SPD Applications
The full product datasheet is available at the link below:
Binho Supernova Product Datasheet
Software Support
Use our Binho Mission Control cross-platform desktop GUI software to point-and-click to send I3C Transactions. Supernova also comes with a fully-baked python library to make automated testing a breeze. We even provide examples for real-time data streaming from I3C Targets using Jupyter Notebooks. For those looking to implement Supernova into their own software applications, we also offer a C/C++ SDK for direct device access.
*New* Try the Online Demo

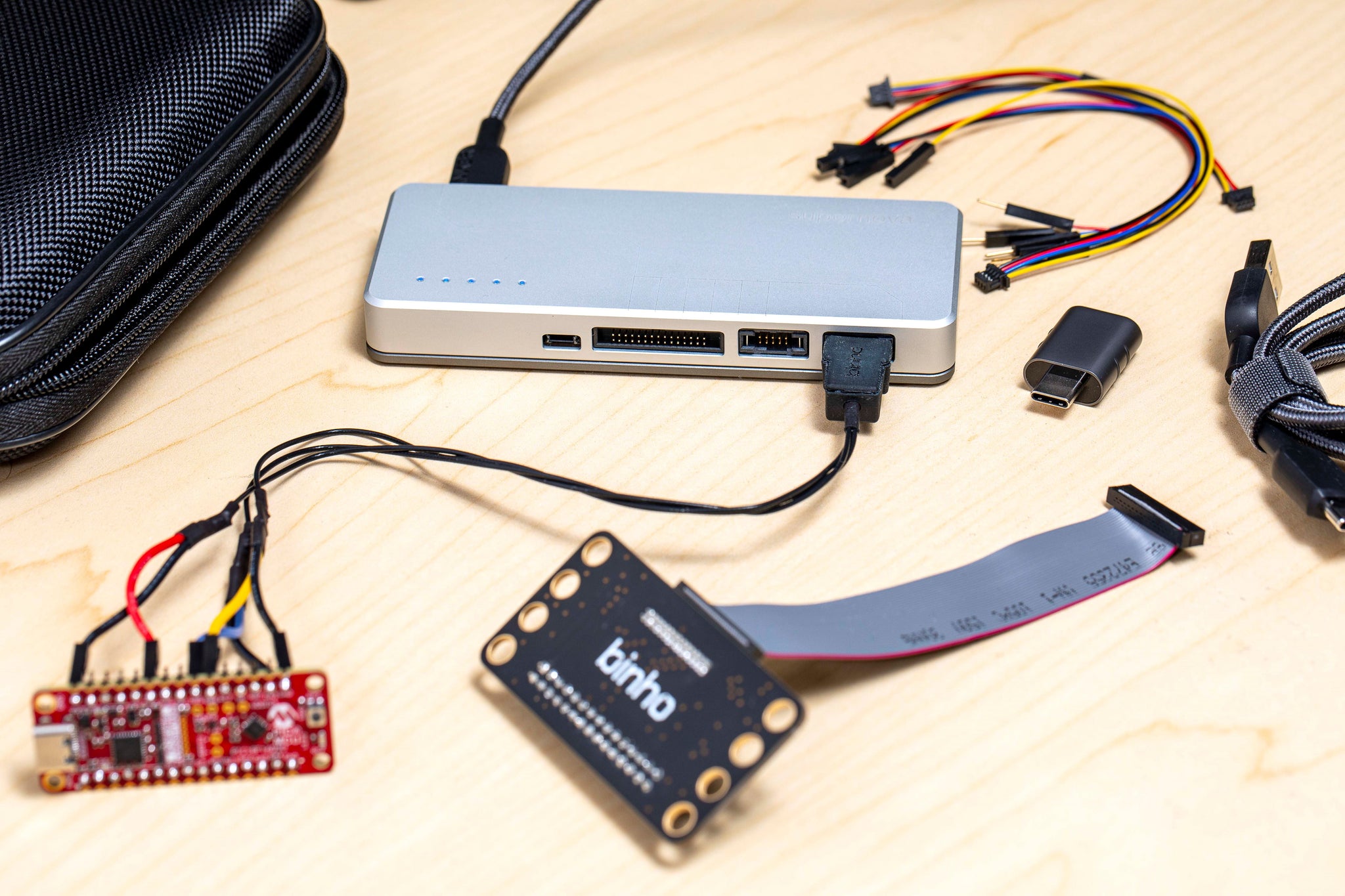

The team at Microchip has produced an interactive online demo that pairs up their PIC18F16Q20 MCU acting as an I3C Target with the Binho Supernova serving as the I3C Controller. This demo highlights Supernova's I3C protocol capabilities, as well as its ability to be integrated into test fixtures and custom software stacks such as the framework that conducts this online demo in a web browser: Microchip TRY: I3C Protocol Features.

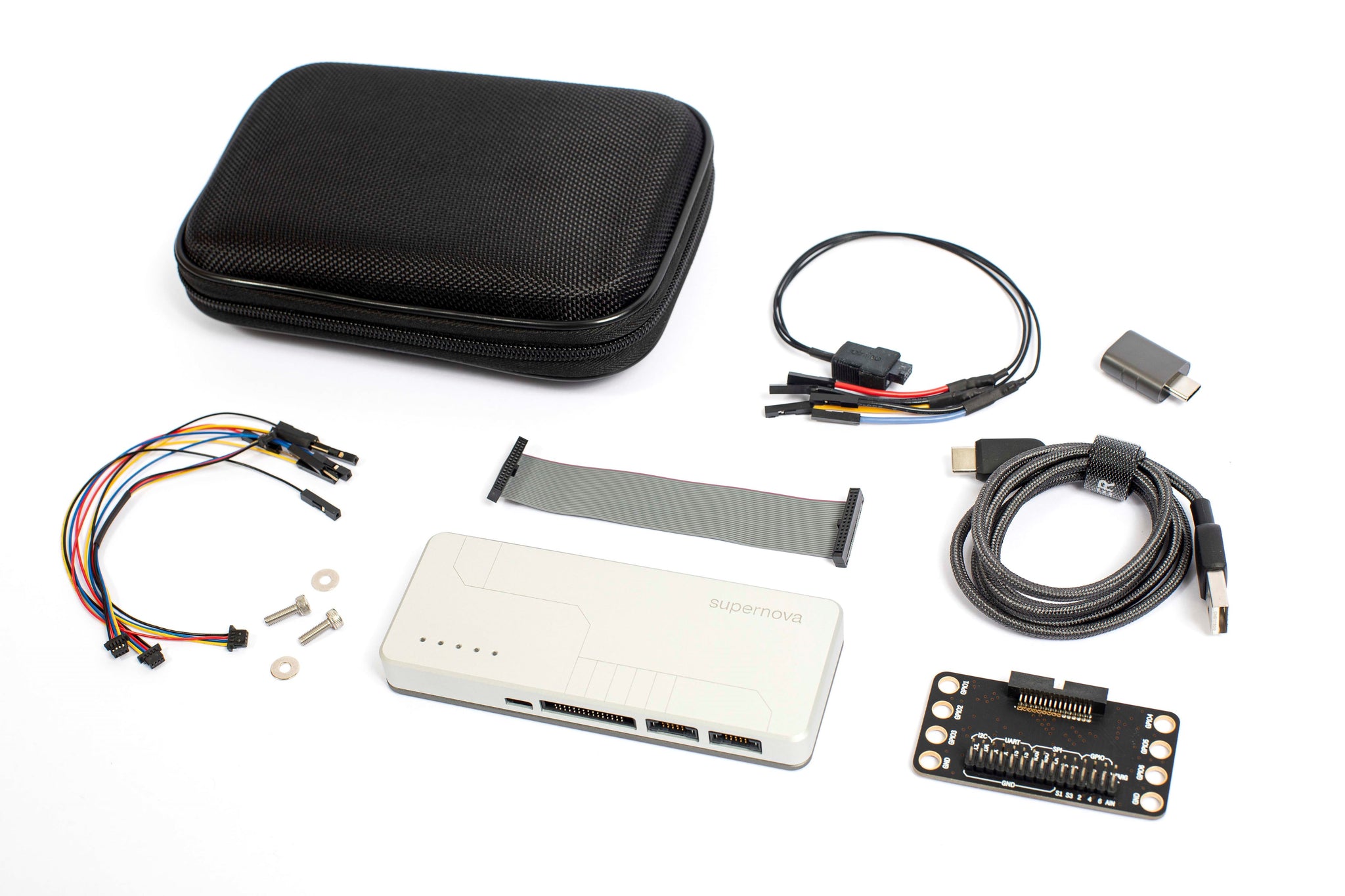

Included Components
Supernova comes with everything you need to get up and running including:
- 1 x Binho Supernova USB Host Adapter
- 1 x I3C Port Kit:
- 1 x I3C Harness terminated with 2.54mm female headers
- 6 x 1-position centered male-to-male pin headers
- 1 x I3C Port to 4 pin JST SH (Qwiic compatible) adapter
- 1 x Dedicated I2C Port Kit:
- 1 x 4 pin JST SH (Qwiic compatible) to 4 pin JST SH cable
- 1 x 4 pin JST SH (Qwiic compatible) cable with male headers
- 1 x 4 pin JST SH (Qwiic compatible) cable with female headers
- 1 x Multifunction Port Breakout Kit:
- 1 x 30 conductor IDC ribbon cable
- 1 x Ribbon cable to 2.54mm pitch header breakout board
- 1 x USB Kit:
- 1 x USB Type C to Type A Cable
- 1 x USB Type A to Type C Adapter
- 1 x Mounting Kit:
- 2 x Mounting Screws
- 2 x Washers

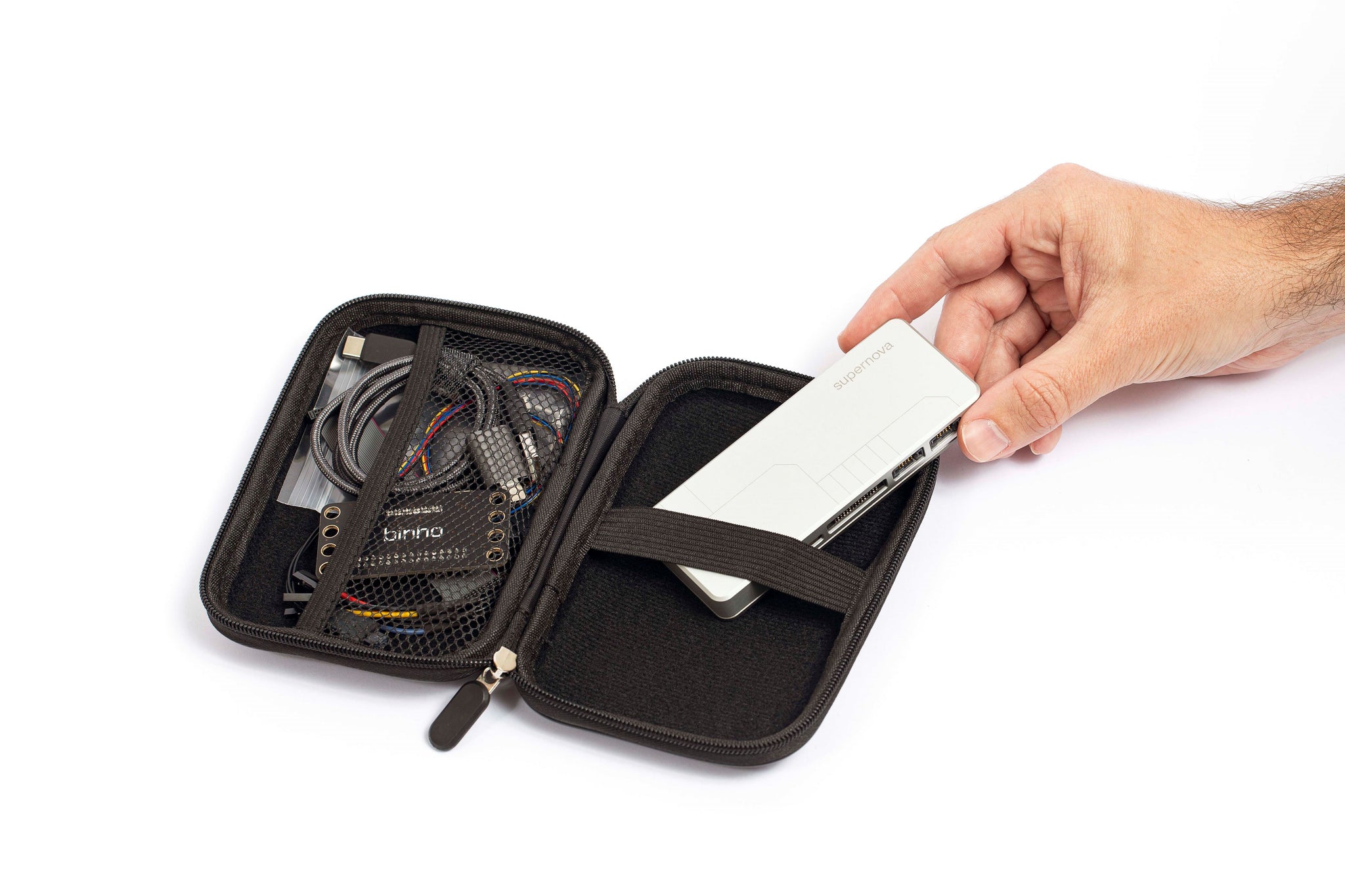

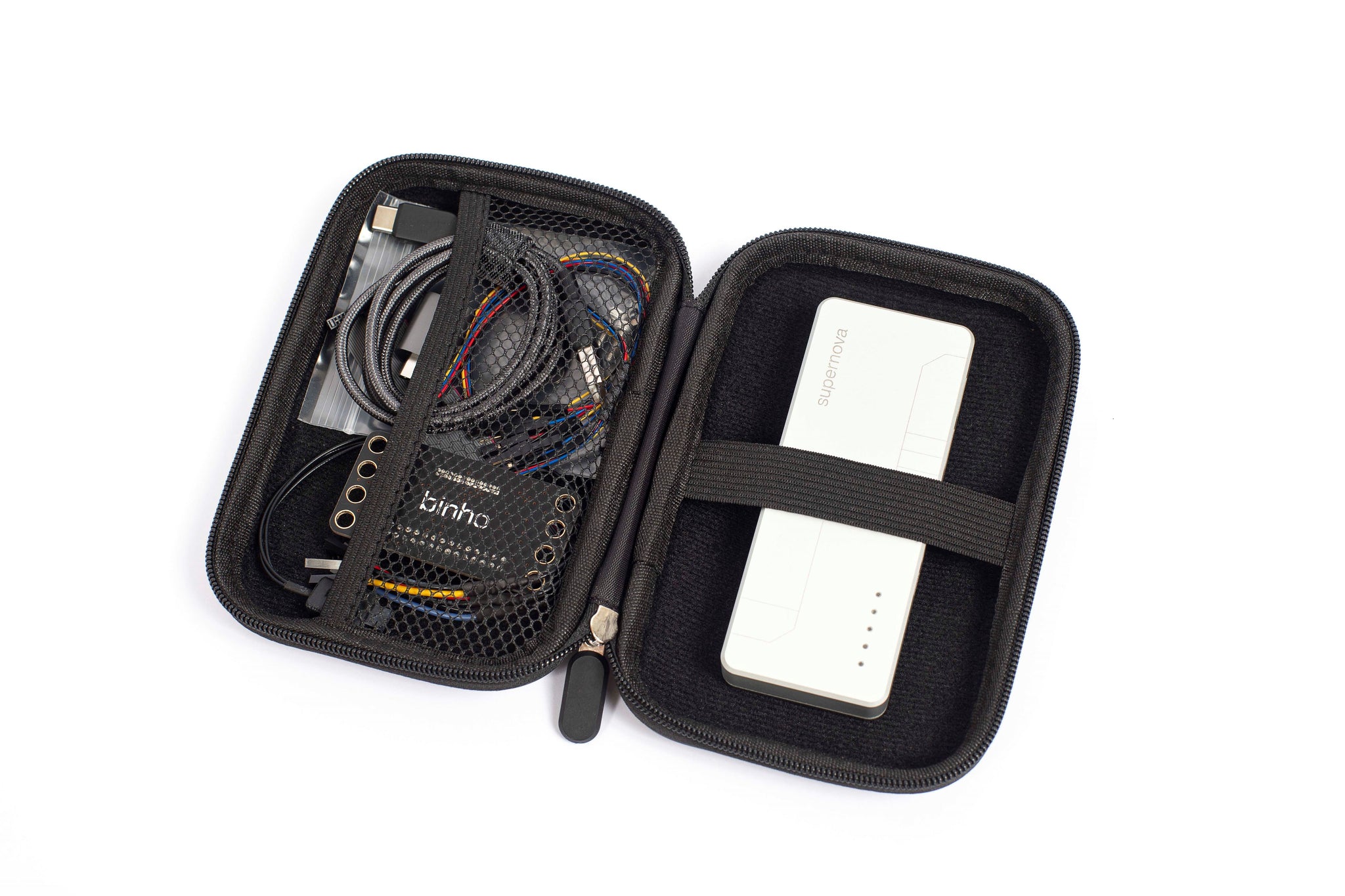

- 1 x Custom Protective Zippered Carry Case
