Binho Pulsar

$599.00 SKU: BIN105

In Stock - Ships within 48 hours!

Quantity

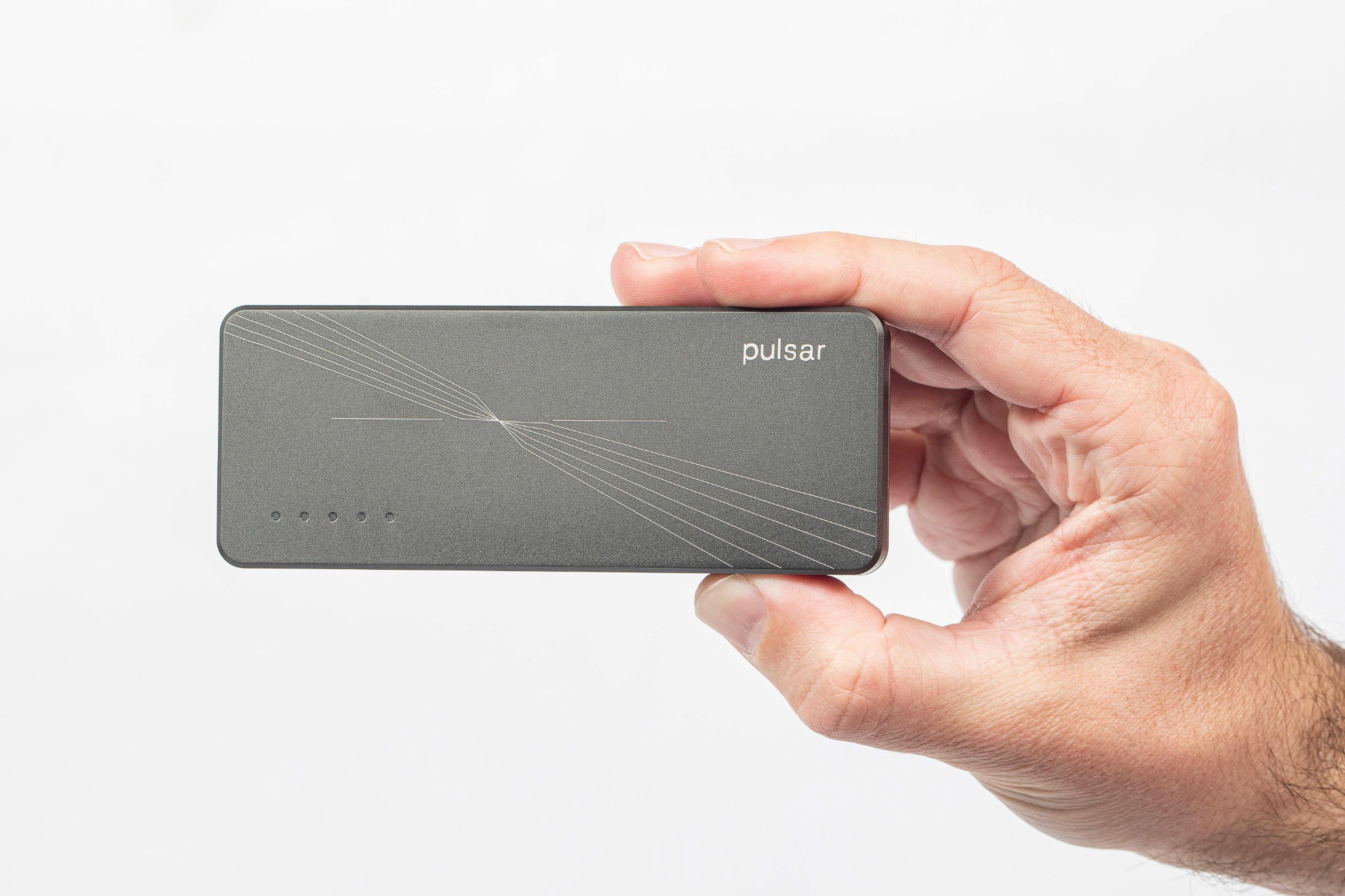

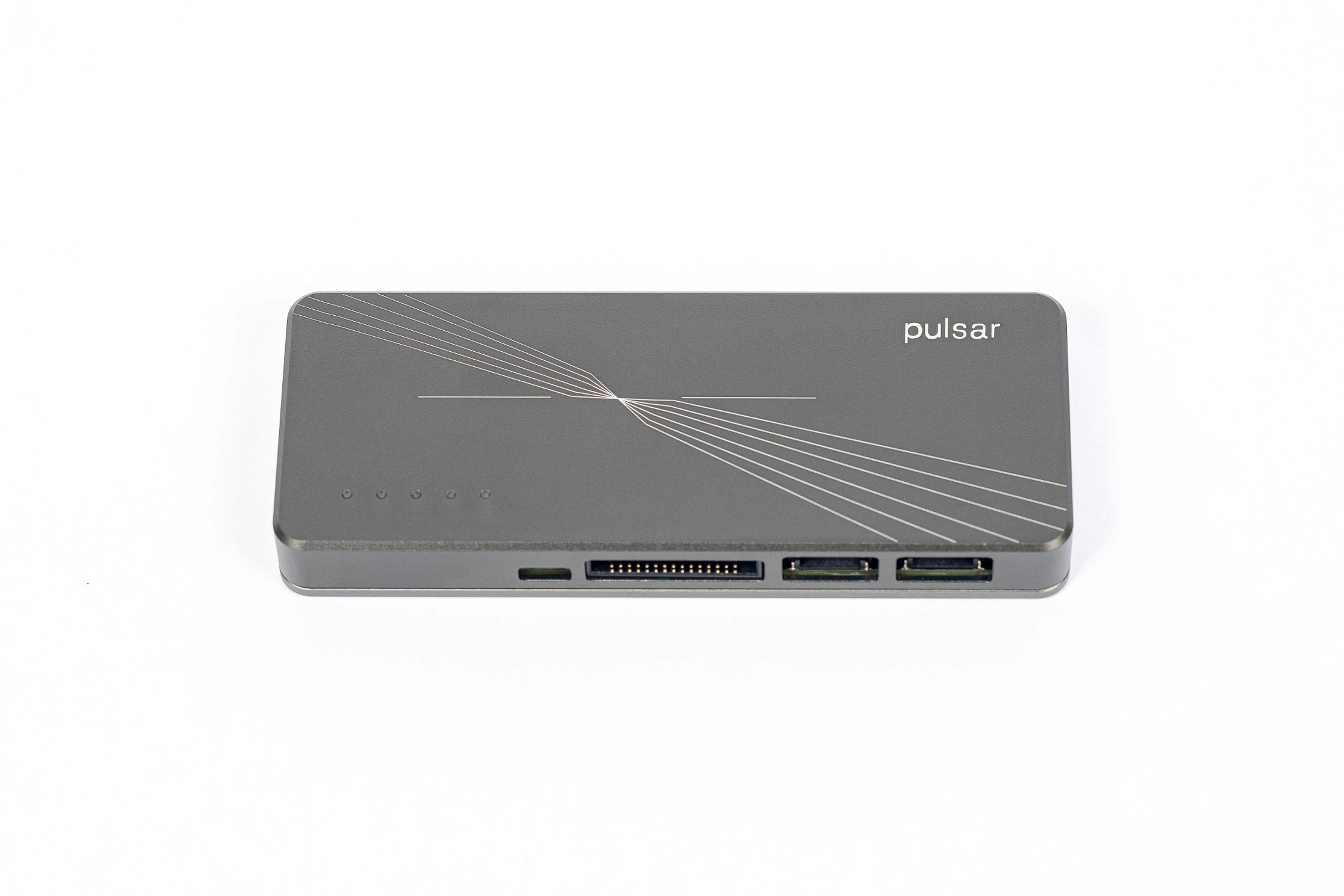

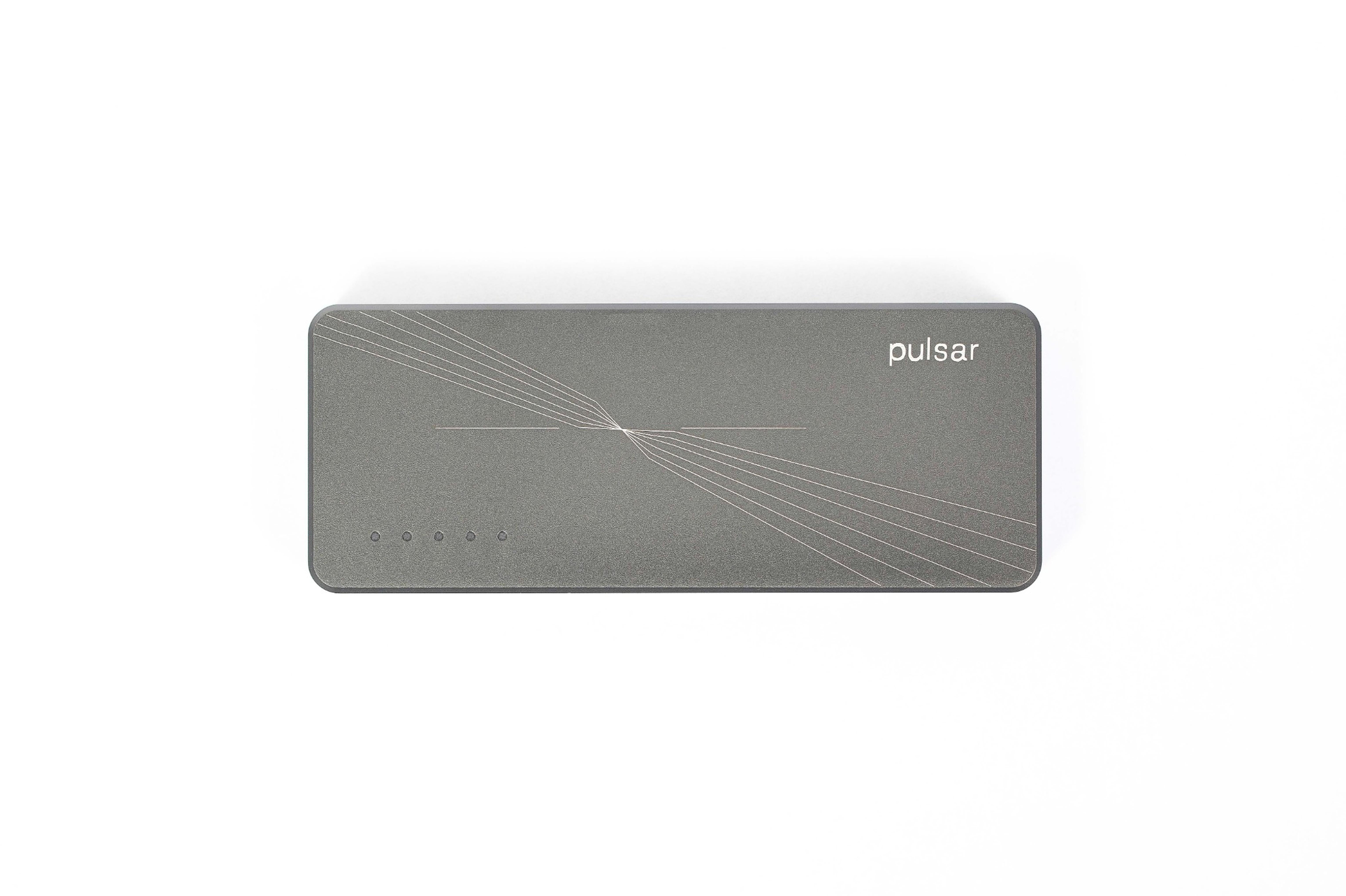

The Binho Pulsar USB Host Adapter allows one to interface a PC directly to hardware circuits. Featuring a USB 2.0 High Speed 480 Mbps link to the host, the Pulsar offers an unmatched value proposition in the test tool market. The Pulsar features a modern USB Type-C port, 5 x RGB LEDs for visual status indication, and a variety of DUT-facing connections all in a compact, robust machined-aluminum enclosure including integrated mounting holes.

The host adapter is able to communicate on many digital buses: I2C, SPI, UART, RS-485, 1-Wire, and CAN-FD. All of these protocols are implemented on their own dedicated pins and can be operated simultaneously. A bank of 6 x dedicated digital GPIO pins can be assigned to other related or unrelated purposes such as GPIO, interrupts, resets, chip selects, etc, as well as operating as digital PWM outputs.

Key Features

Protocol Support

USB High Speed Connection

480 Mbps USB 2.0 High Speed

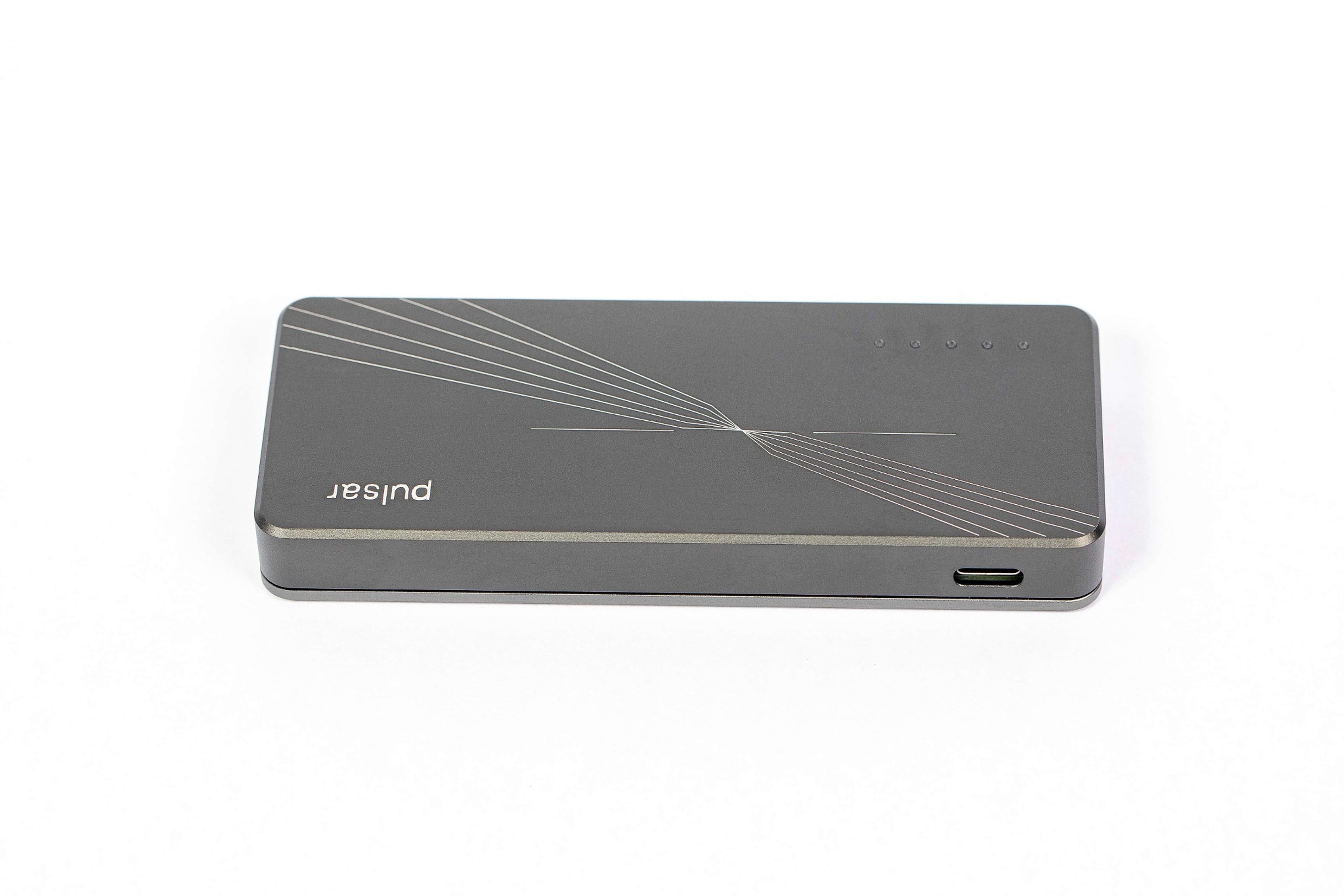

USB Type-C connection to host PC

SPI Protocol

SPI Controller
All 4 SPI Modes Supported
Up to 50 MHz max clock speed
Up to 4 x CS signals
Configurable MSB/LSB
SPI Peripheral (coming soon)
Voltage range from 1.2V to 3.3V

I2C Protocol

I2C Controller
1 MHz max clock speed
7-bit Addressing, Clock Stretching
Configurable Pull-up Resistors
10-bit Addressing (coming soon)
I2C Peripheral (coming soon)
Voltage range from 1.2V to 3.3V

UART Protocol

115200 max baud
Support for Hardware Flow Control
Voltage range from 1.2V to 3.3V

RS-485 Protocol

-7V to +12V Common-Mode Input
Half-Duplex

CAN-FD Protocol

Optimized for use in 12V systems
Up to 5 Mbps data rate
(coming soon)

1-Wire Protocol

Standard and Overdrive speeds
3.3V and 5V operation
(coming soon)

GPIO Pins

6 x Digital IO pins
Voltage range from 1.2V to 3.3V
Configurable as Interrupts
PWM Support (coming soon)

Additional Features

Power & Connectivity

Provides downstream power to DUT
Programmable from 1.2V to 3.3V

Enclosure & Design

Robust Machined Aluminum Enclosure
5 x RGB Status LEDs

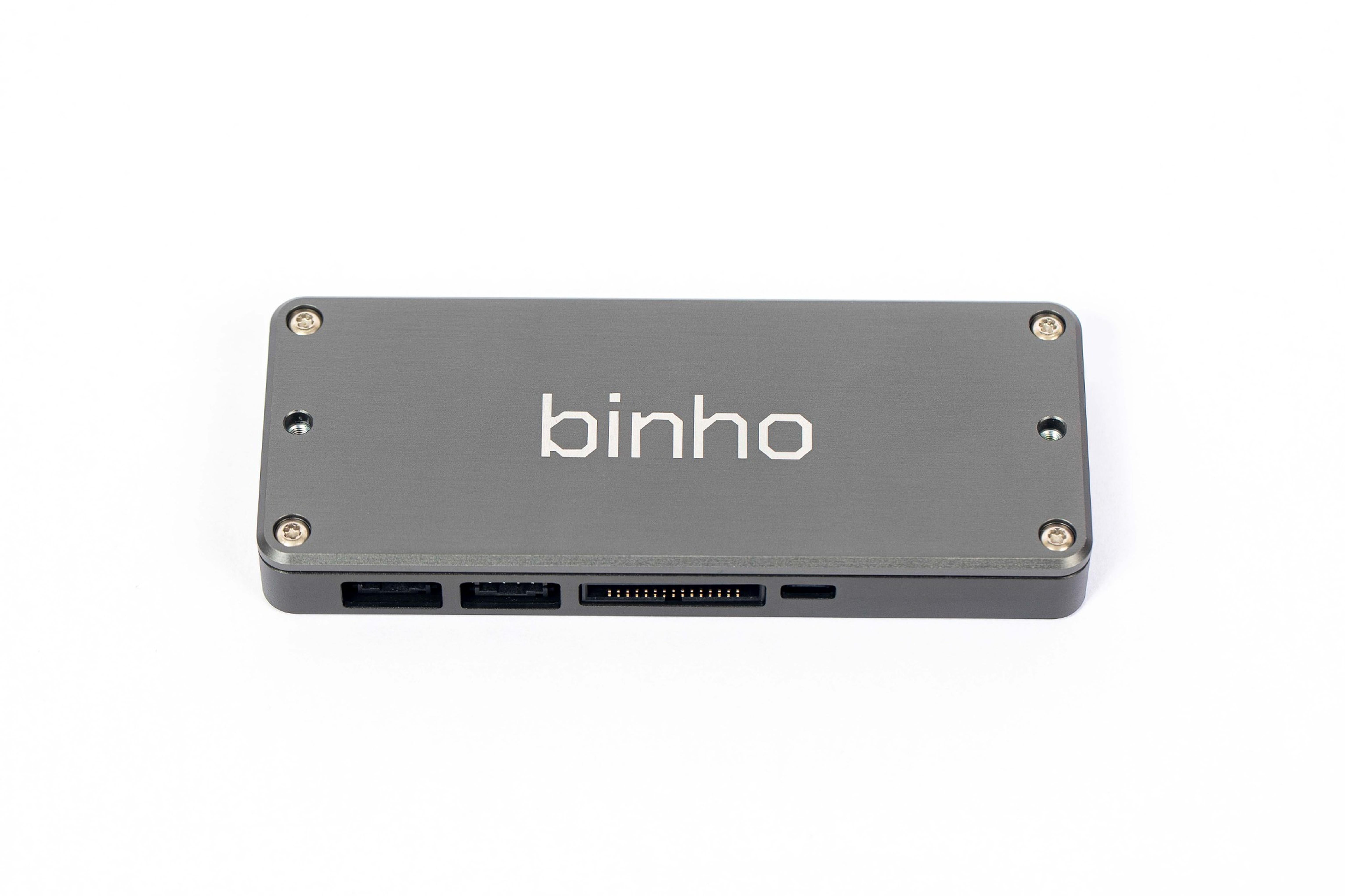

Integrated mounting holes
Silent, Fanless design

Software & Support

Full-featured Software Support
Point-and-Click GUI
Cross-Platform: Windows, Mac, Linux
Python, C/C#/C++ SDKs
Field-Upgradeable Device Firmware

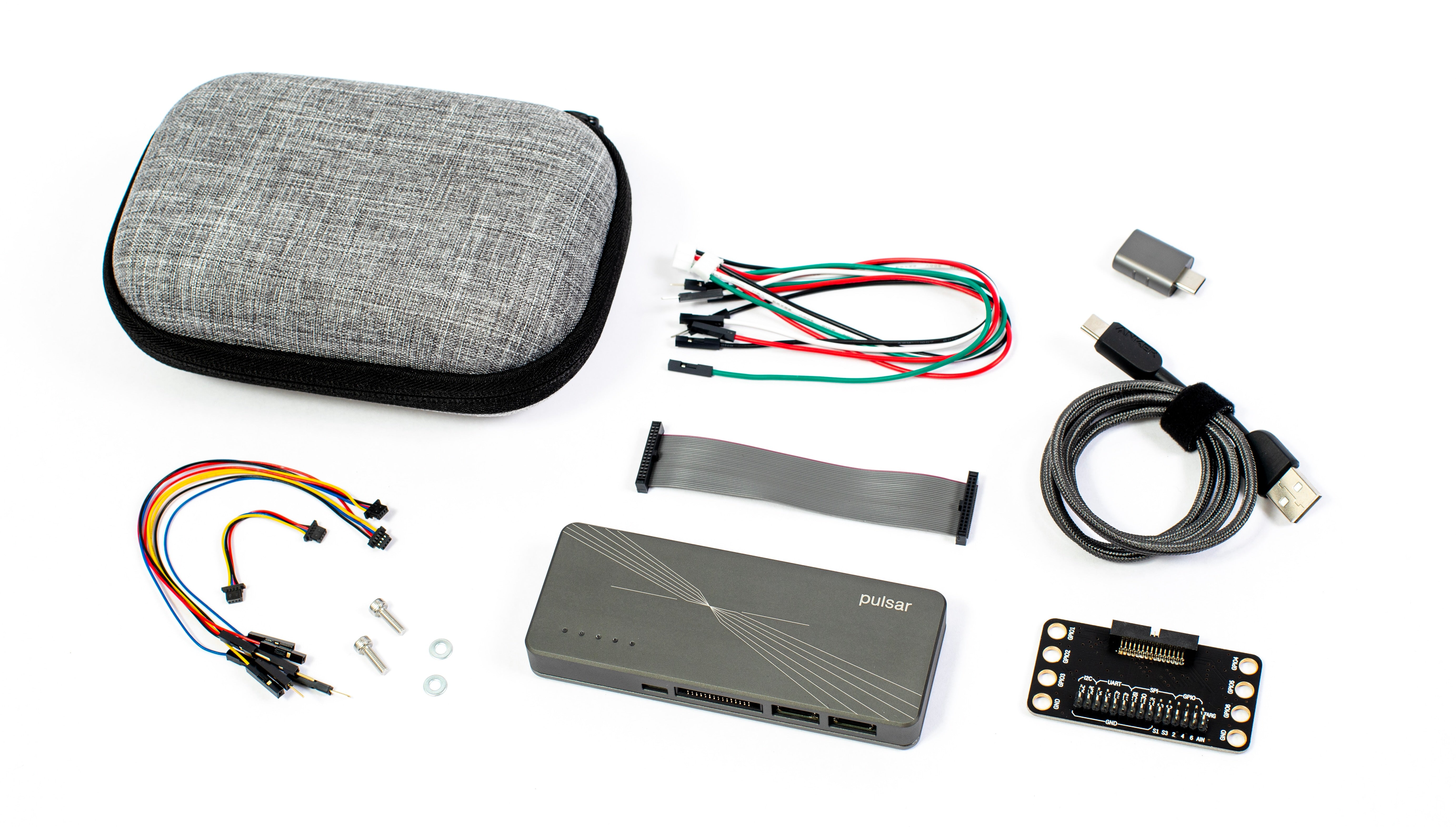

Package Contents

All cables and accessories included

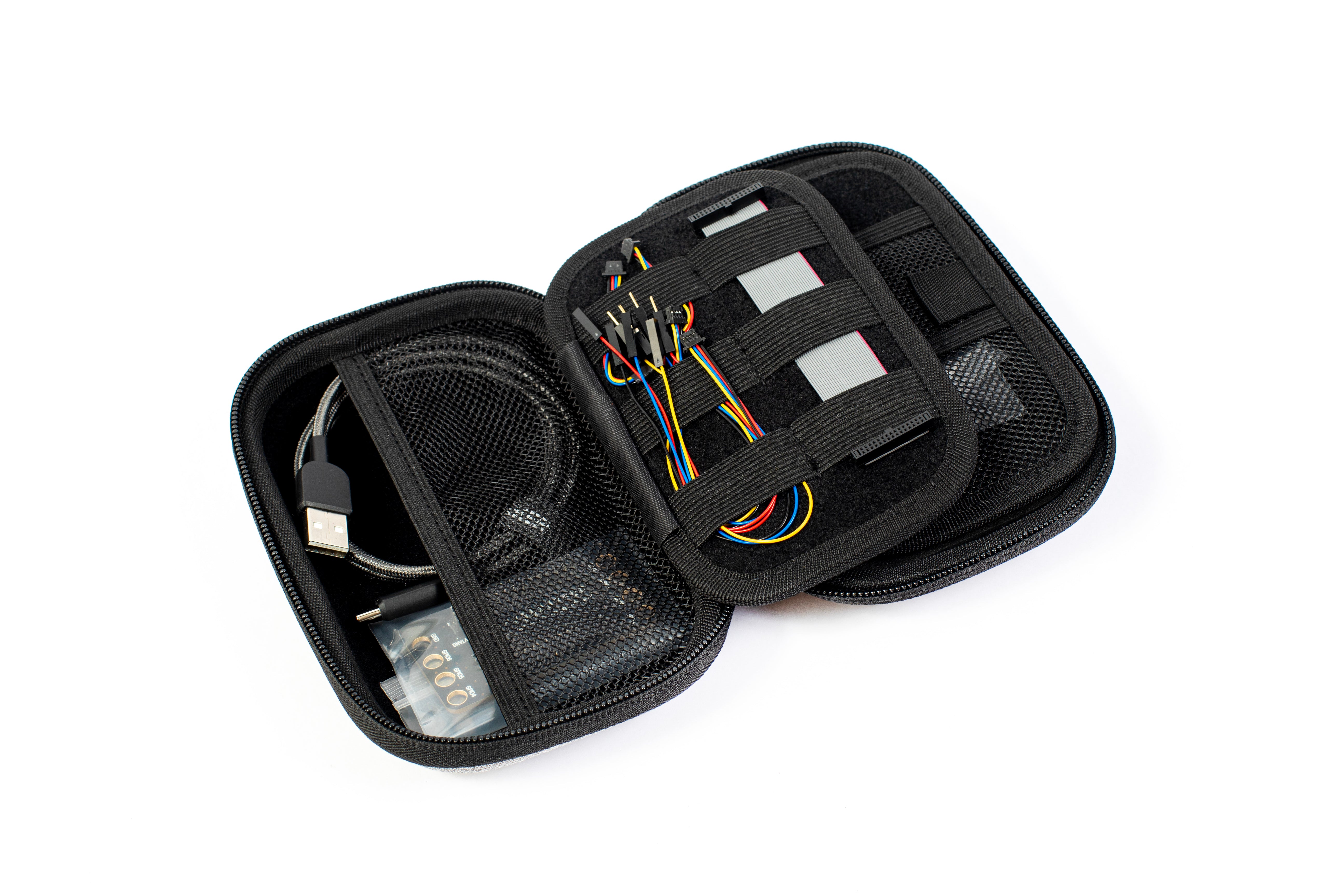

Stored in custom zippered case

Target Applications

Device Driver Development

Test and validate device drivers with comprehensive protocol support

Firmware Development & Verification

Streamline firmware development with real-time protocol analysis

Proof of Concept Development

Rapidly prototype and test new hardware concepts

Automated HW/FW Testing

Integrate into automated test systems for hardware and firmware validation

FLASH & EEPROM Programming

Program and verify memory devices with multiple protocol support

The full product datasheet is available at the link below:

Binho Pulsar Product Datasheet

Software Support

Use our Binho Mission Control cross-platform desktop GUI software to point-and-click to send I2C, SPI, and UART transactions. Pulsar also comes with a fully-baked python library to make automated testing a breeze. We even provide numerous examples for real-time data streaming from various devices using Jupyter Notebooks among other helpful resources. For those looking to implement Pulsar in their own software applications, we also offer a C/C++ SDK for direct device access.

Learn More About Mission Control View Documentation
