mikroBUS Adapter Board

$79.00 SKU: BIN106
In Stock — Ships within 48 hours

// works with

Binho Supernova Binho Pulsar

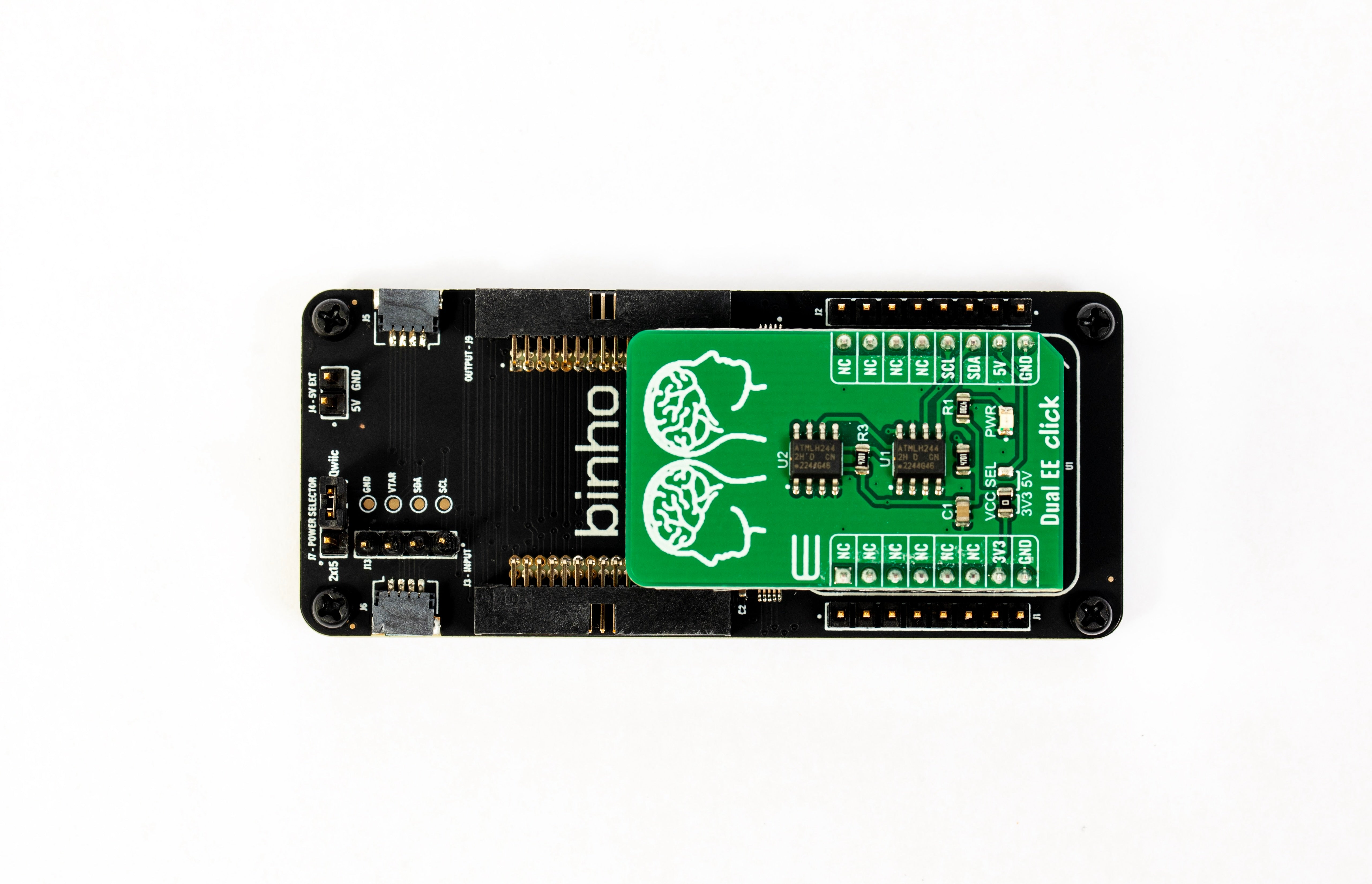

The mikroBUS Adapter Board is a perfect complement to both Supernova and Pulsar host adapters, making it easy to interface with 1700+ Click boards™ from MikroE.

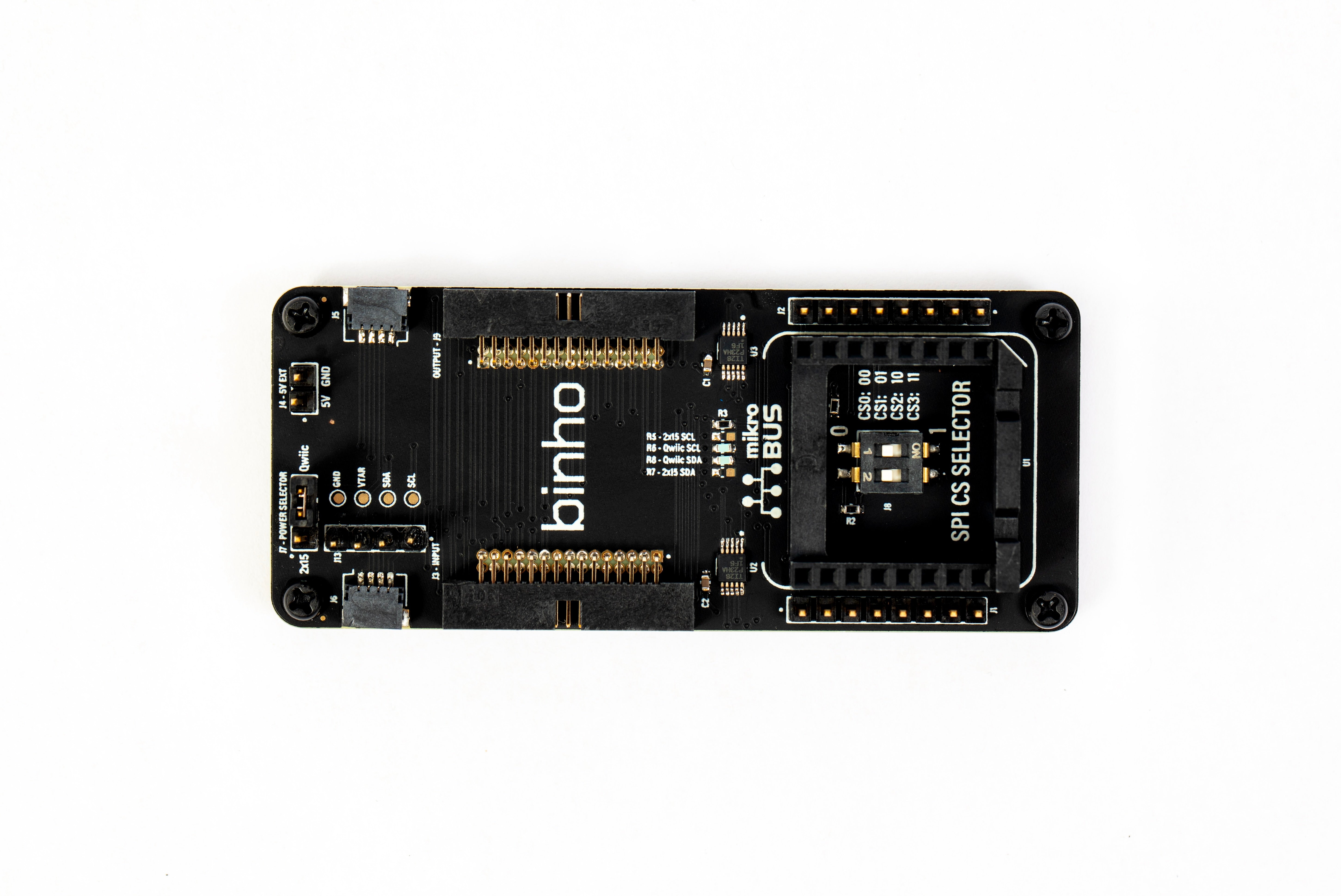

Our mikroBUS Adapter Board design breaks out all 18 pins to headers and allows for devices to be communicated with over I3C, I2C, SPI, and UART. GPIO pins are also available as needed.

// key features

Key features.

// click ecosystem

1700+ Click boards.

Compatible with extensive library of MikroE Click boards.

// multi-protocol

I3C. I2C. SPI. UART.

Communicate with Click boards over any of four bus protocols.

// pin access

All 18 pins broken out.

Full access to all mikroBUS socket pins via headers.

// qwiic

QWIIC connectors.

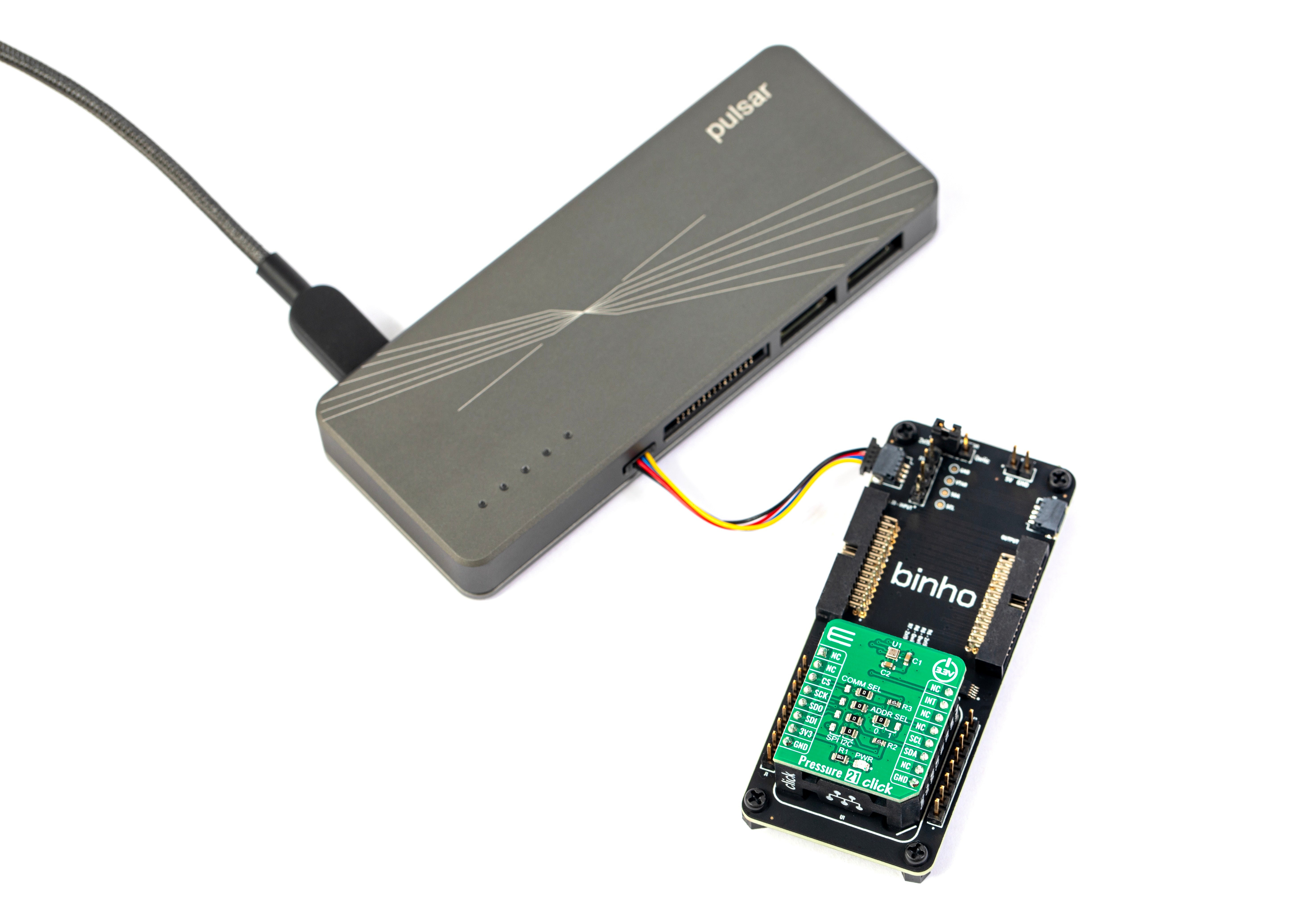

I2C/I3C bus available on QWIIC-compatible connectors.

// daisy chain

Daisy-chainable.

Connect up to 4 boards at a time with included cables.

// configurable

DIP-switch configuration.

Adjustable DIP switch for multiple SPI devices with proper INT and CS pin assignment.

// i3c-capable click boards

Verified Click boards.

The following boards featuring I3C devices are available from MikroE:

Bosch Sensortec

  • BMI323: 6DOF IMU 20 Click
  • BMA580: Accel 31 Click
  • BMP581: Pressure 21 Click
  • BMP585: Barometer 13 Click

TDK InvenSense

  • ICM-42688-P: 6DOF IMU 14 Click
  • ICM-42605: 6DOF IMU 18 Click
  • ICM-42670-P: 6DOF IMU 22 Click

STMicroelectronics

  • TSC1641: Current 12 Click
  • LPS28DFW: Barometer 10 Click
  • LSM6DSV16X: Smart DOF 2 Click
  • LIS2DUX12: Accel & Qvar Click
  • LPS27HHW: Pressure 15 Click
  • ST1VAFE6AX: 6DOF IMU 25 Click
  • ILPS28QSW: PRESS Click

MEMSIC

  • MMC5633NJL: Compass 7 Click
View MikroE's full list of I3C-capable Click boards

// what's included

In the box.

  • mikroBUS Adapter Board with standard mikroBUS socket
  • 20 mm long ribbon cable for daisy-chaining multiple boards
  • QWIIC-to-QWIIC cable for I2C/I3C connections

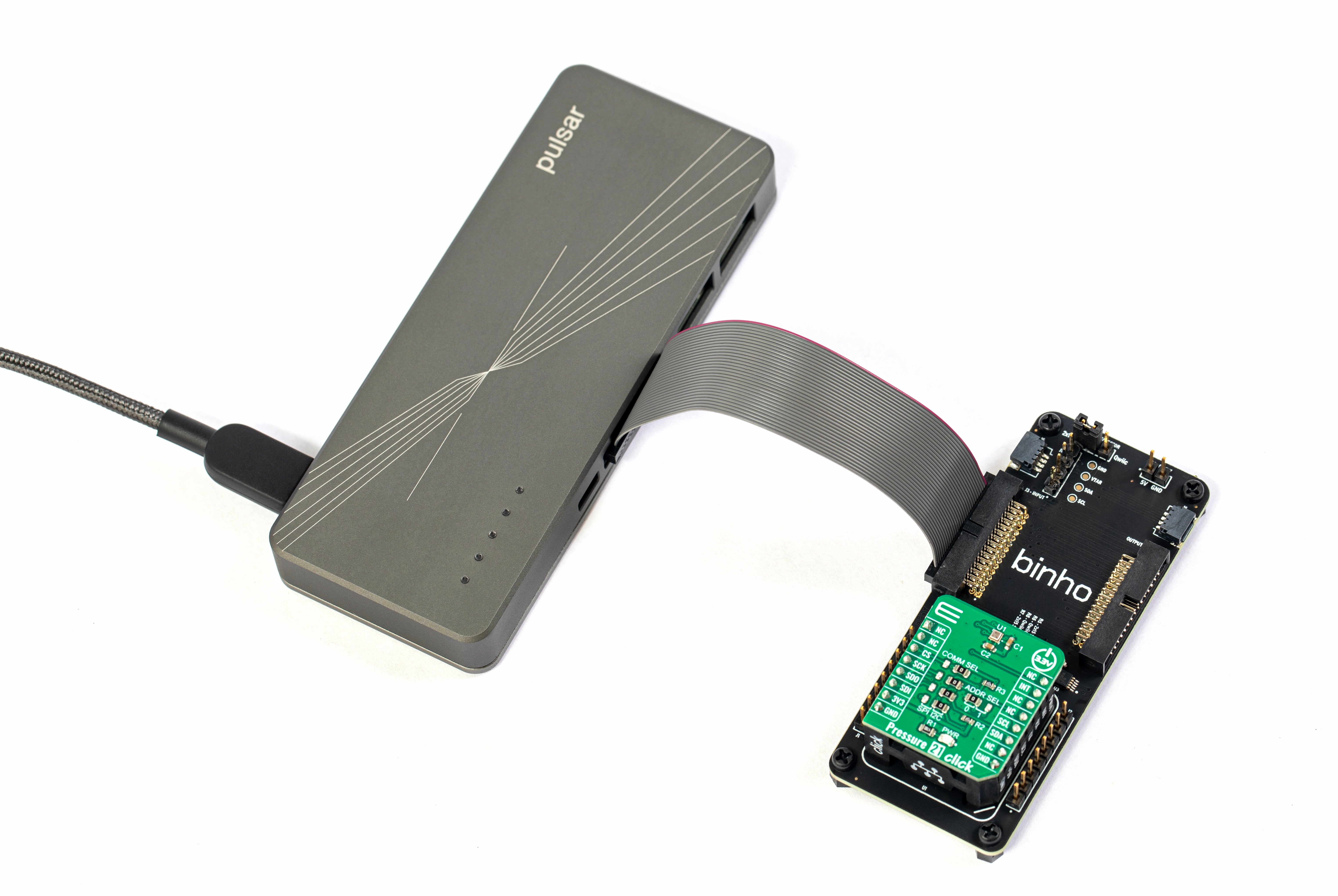

  • 2x15 IDC connector for connection to Supernova/Pulsar

Note: Click boards are sold separately. Pulsar & Supernova host adapters include the ribbon cable needed for the 2x15 IDC connection.
