I3C Target Board
// works with

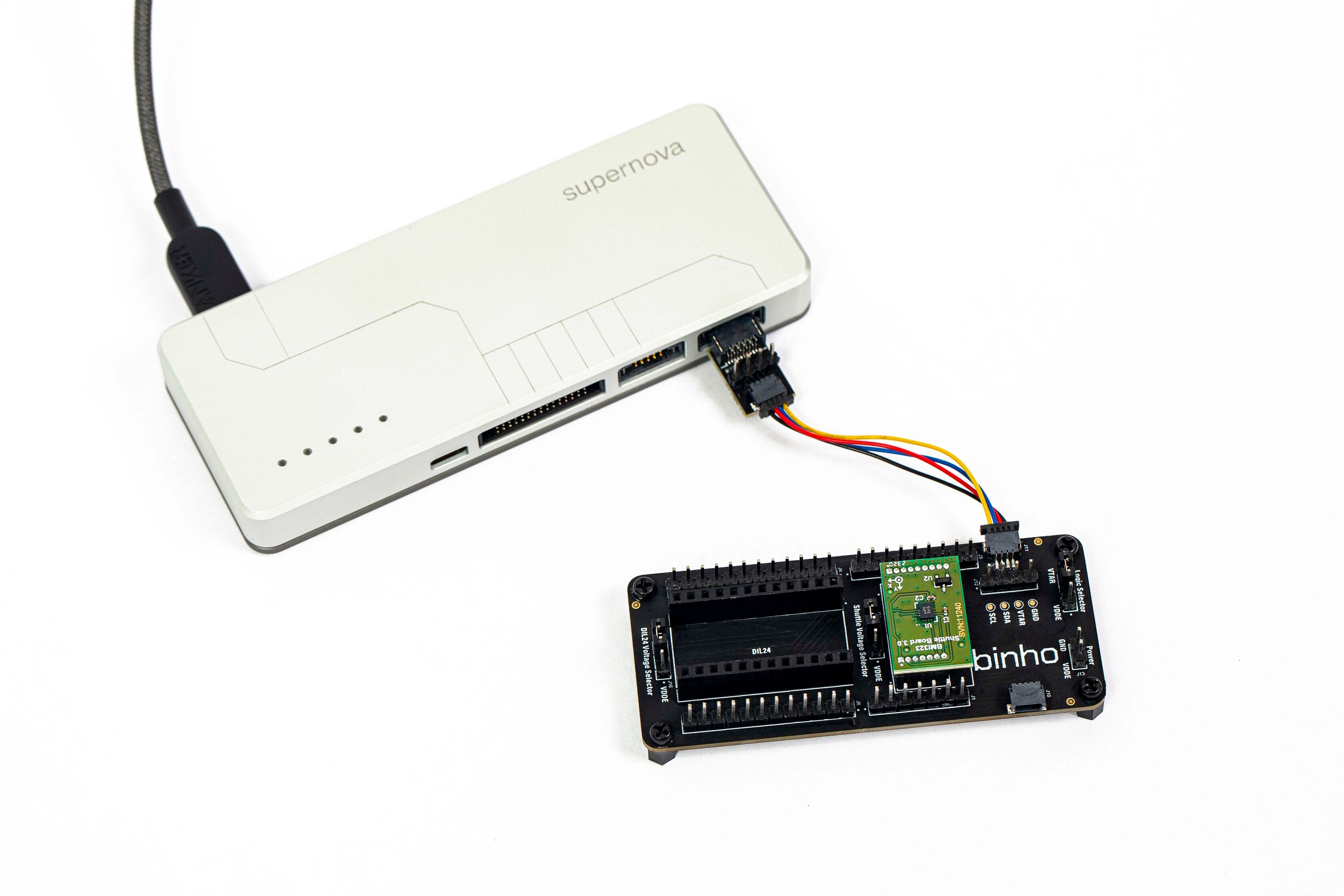

The I3C Target Board makes it quick and easy to get up and running with popular I3C Target devices from Bosch and STMicro. The I3C Target Board can be easily connected to Supernova and has support for Bosch Shuttle 3.0 and STMicro's DIL24 form-factor evaluation boards.
// key features
Key features.
// dual sockets
Dual socket support.

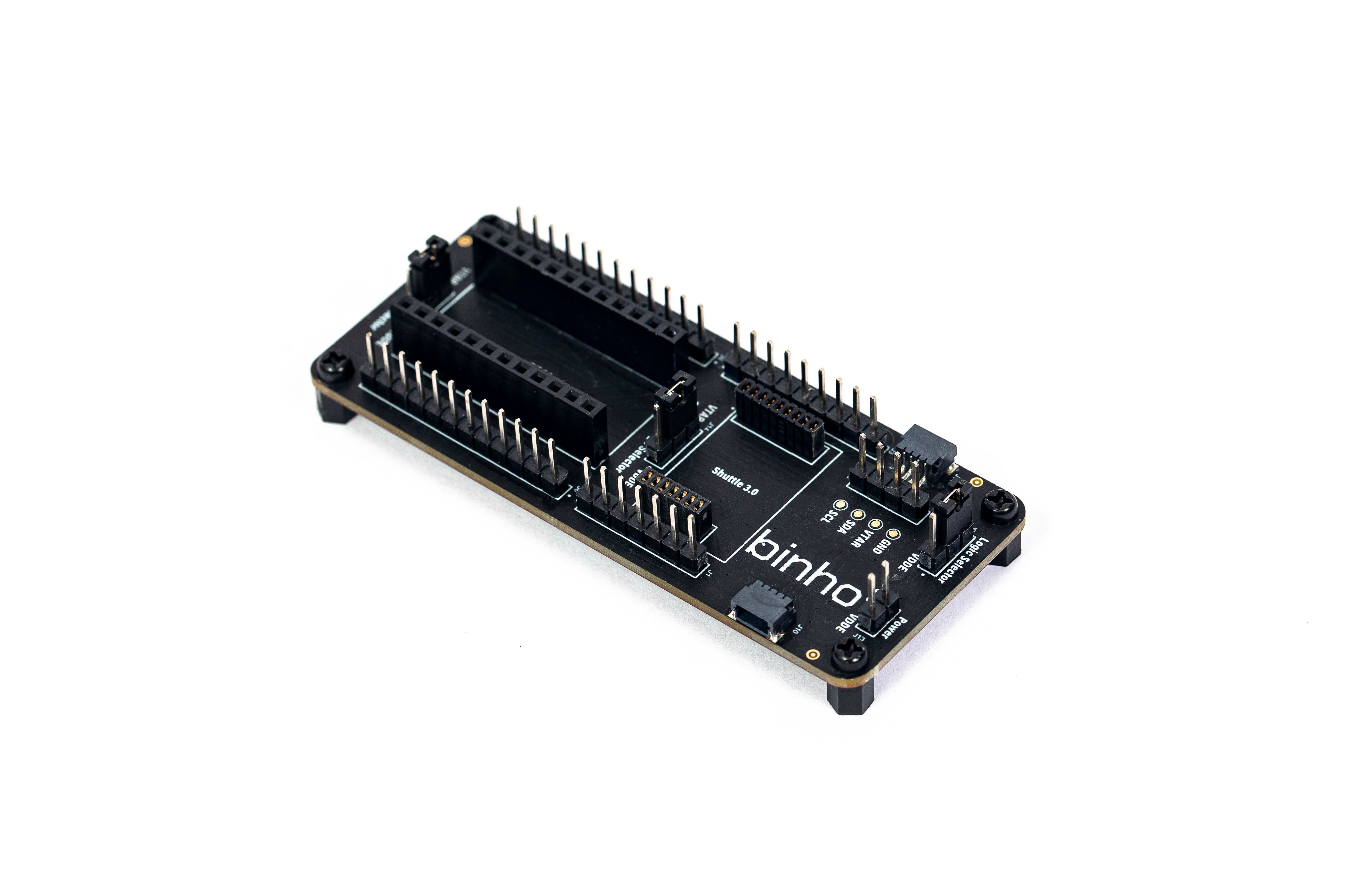

Compatible with both Bosch Shuttle 3.0 and STMicro DIL24 evaluation boards.
// pin access
All pins broken out.

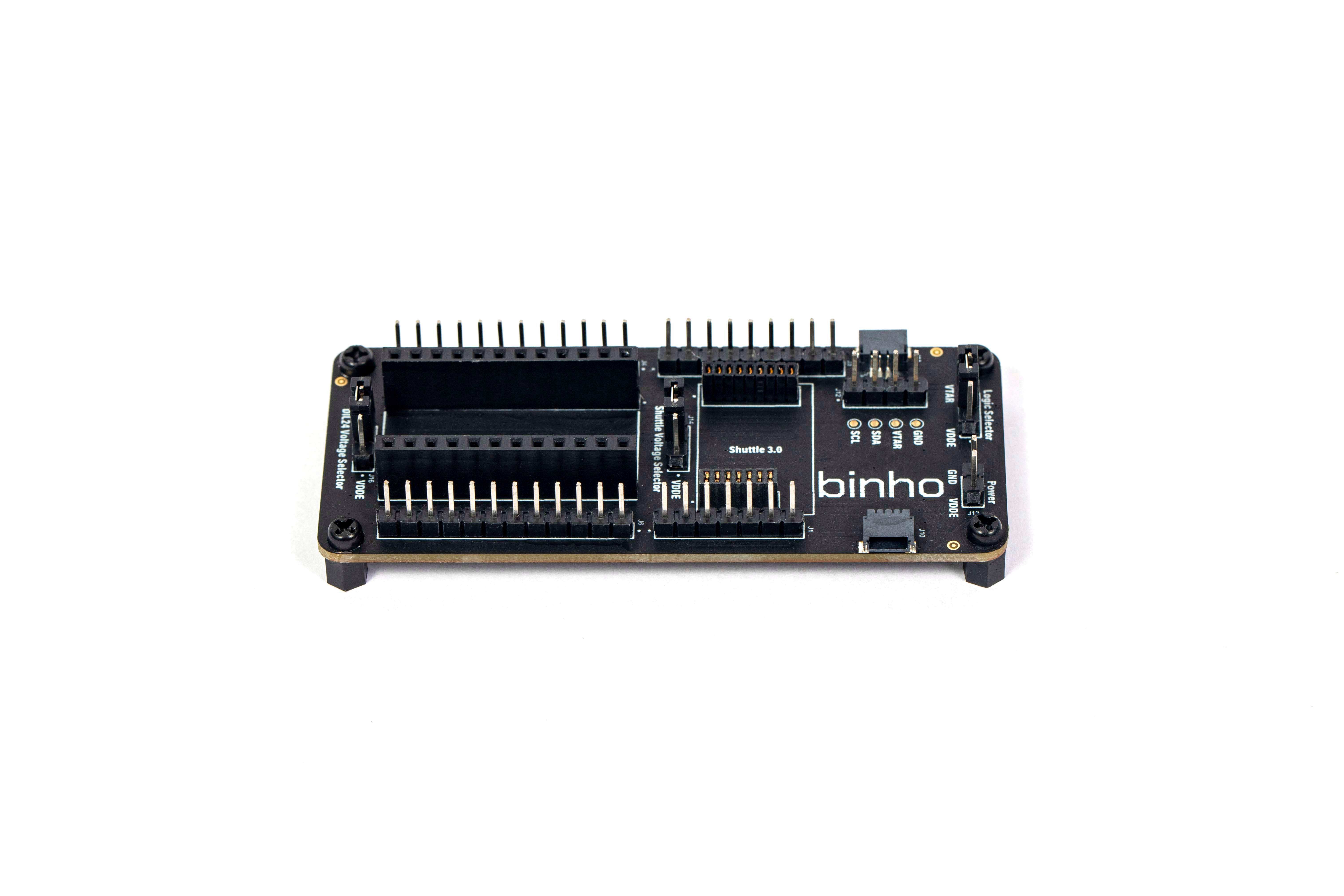

Standard 2.54 mm headers provide access to all I3C Target pins.
// logic analyzer
Logic analyzer headers.
Dedicated headers on SCL and SDA signals for easy bus monitoring.
// dual device
Dual device operation.
Both DIL-24 and Bosch Shuttle boards can be installed and operated simultaneously.
// daisy chain
Daisy-chainable.
I3C bus passes through the board for connecting multiple devices in series.
// power options
Flexible power.
Jumpers allow external power or power from Supernova.
// compatible targets
Verified I3C target devices.
// bosch shuttle 3.0

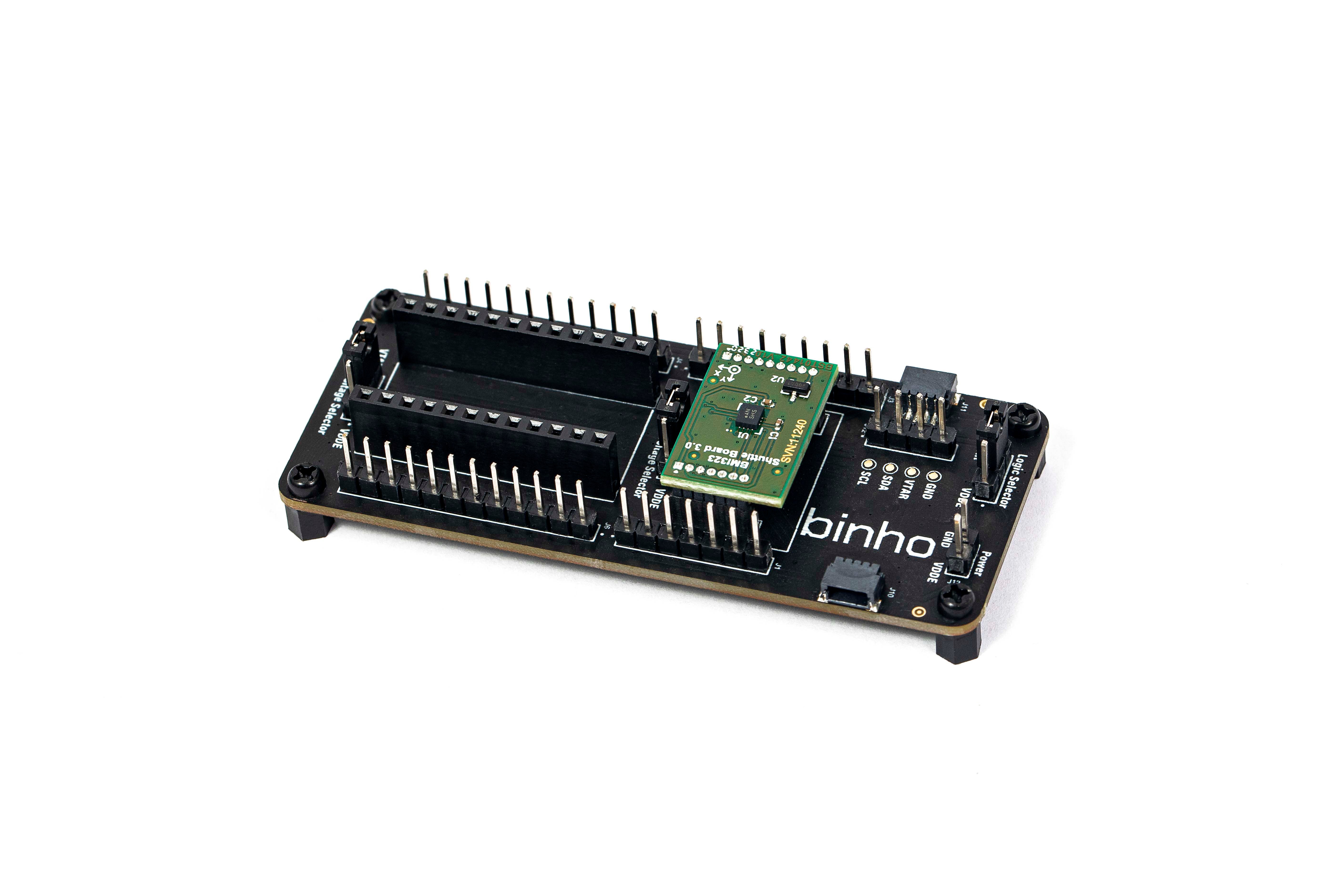

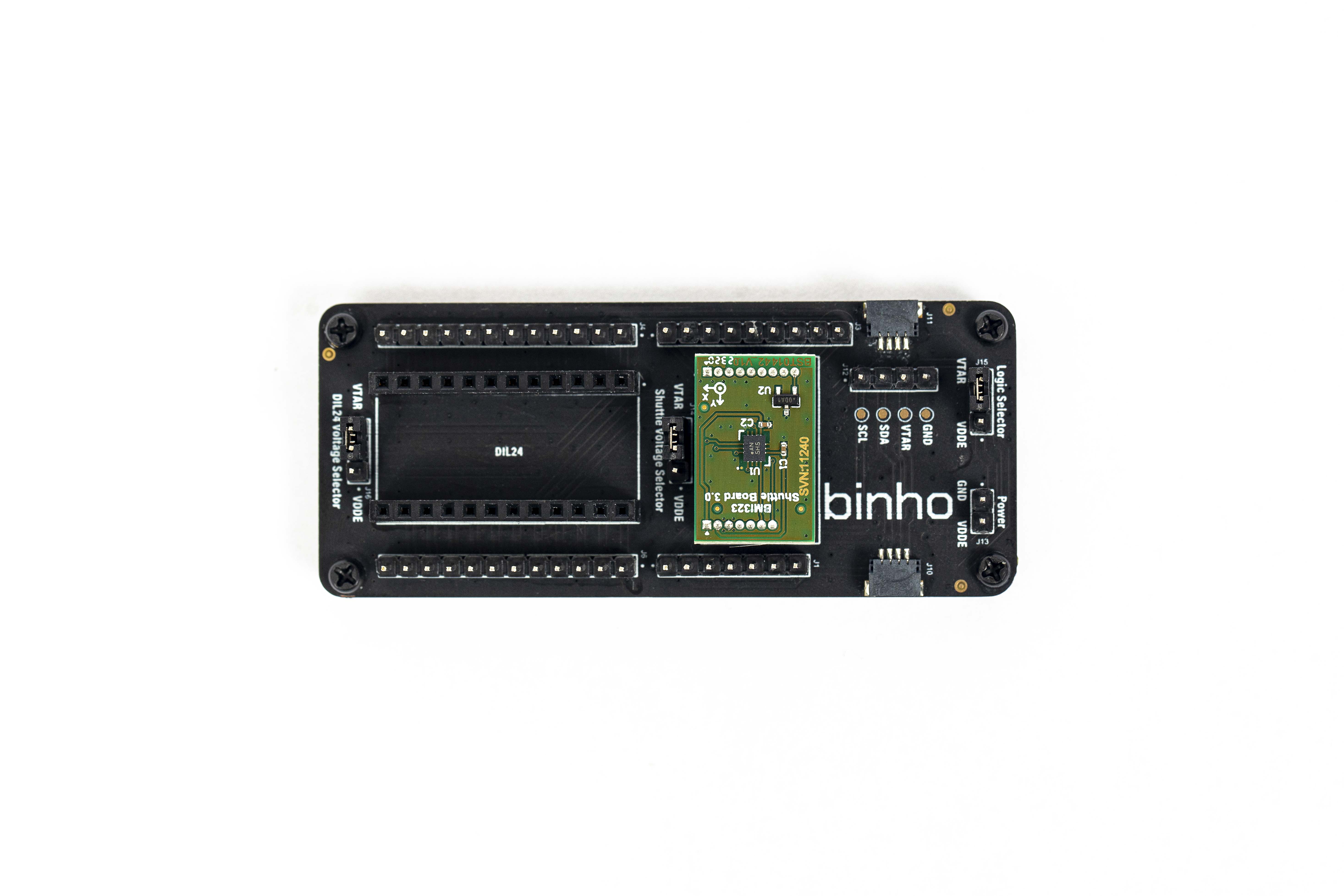

Bosch Shuttle 3.0 evaluation boards.
- BMI323
- BMM350
- BMP581
- BMP585
- BMA530
- BMA580
// stmicro dil24

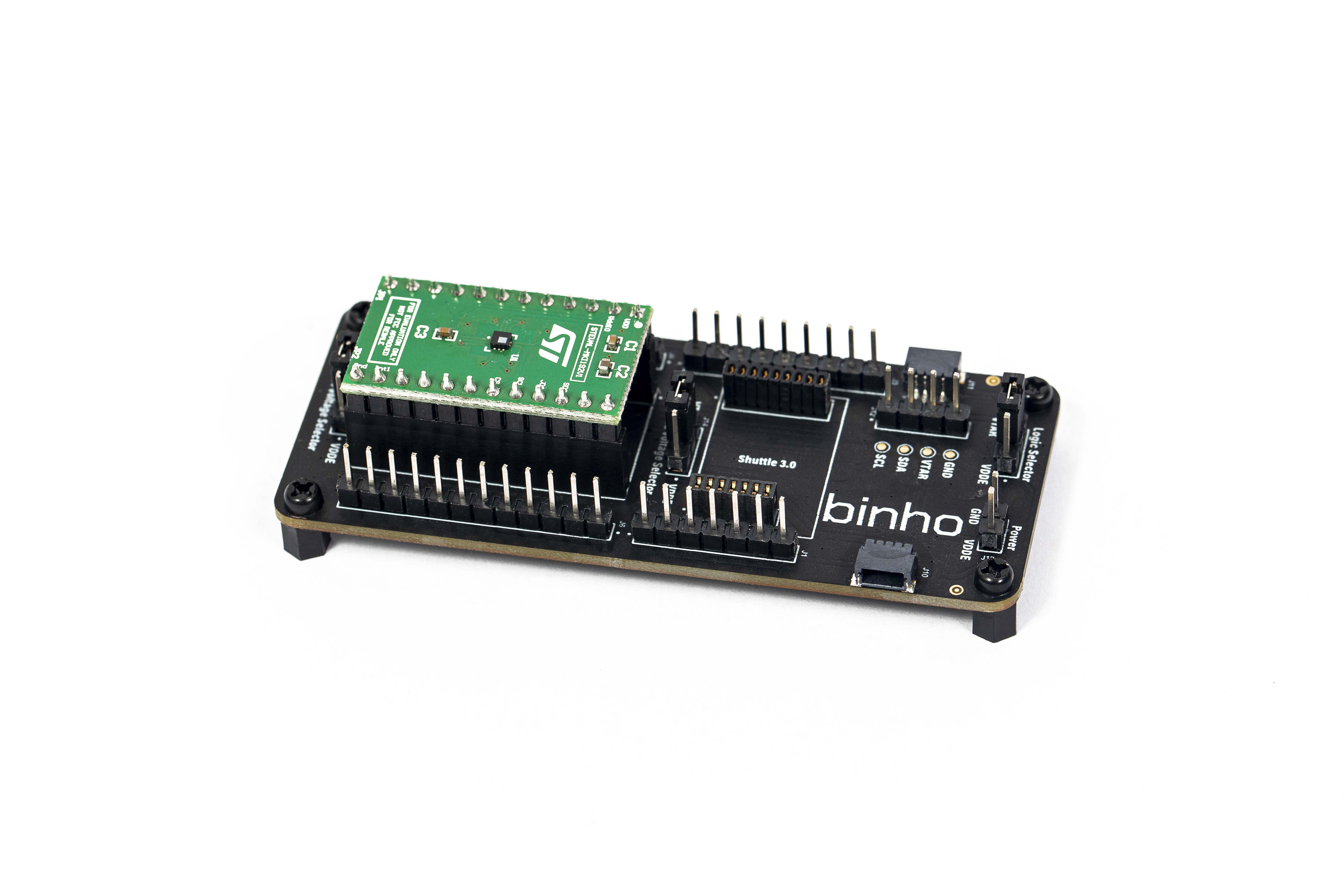

STMicro DIL24 evaluation boards.
- LPS22HH
- LSM6DSV
- LSM6DSV16B
- LSM6DSV16BX
- LSM6DSV16X
- LSM6DSV32X
- LPS28DFW
- ILPS28QSW
- LIS2DUX12
Note: The evaluation boards listed above are NOT included with this board and must be purchased separately.
Ready to Get Started?
Add the I3C Target Board to your Supernova toolkit for easy testing with popular I3C target devices.
