PIC18F16Q20 Curiosity Nano I3C Target Demo Board
// works with

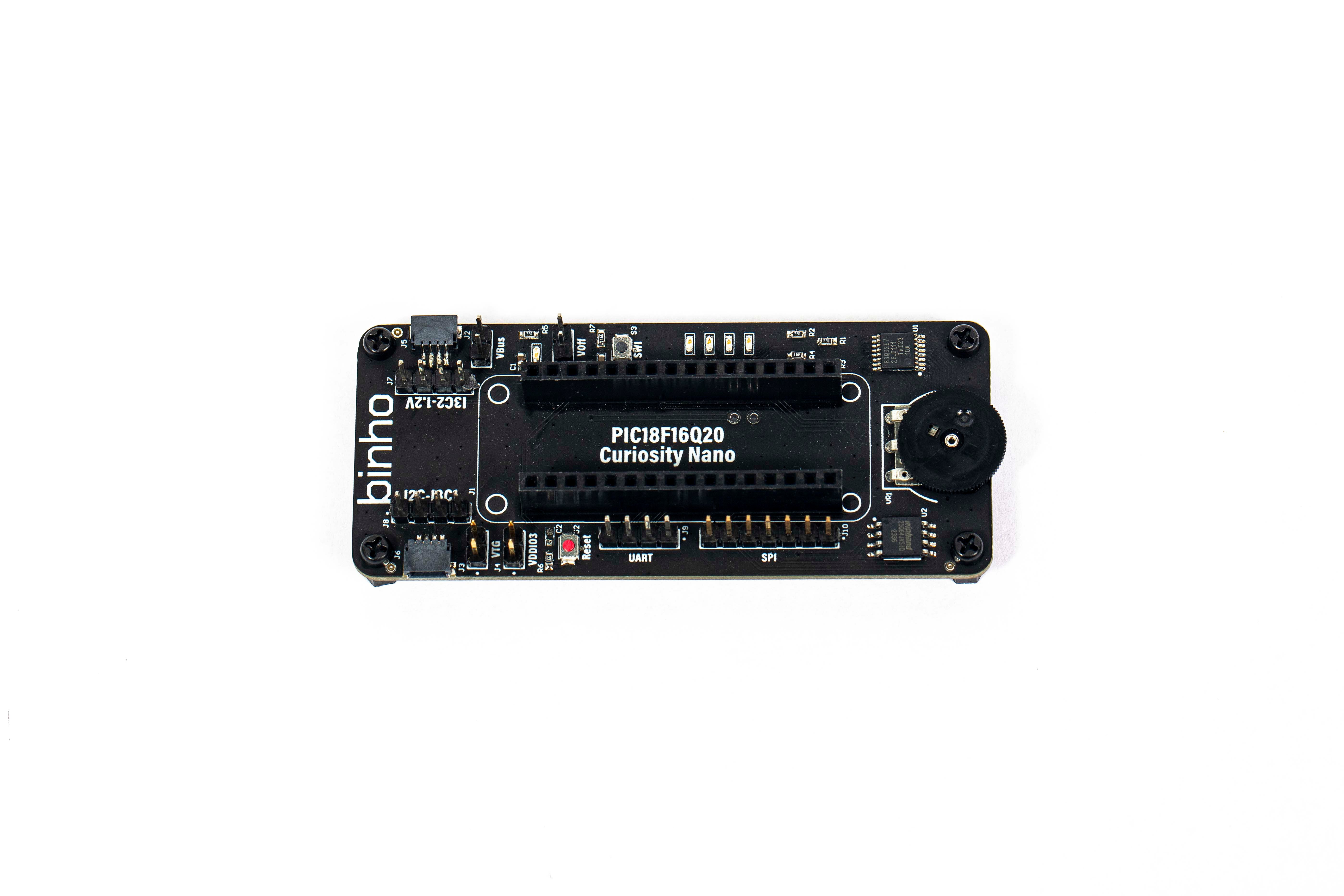

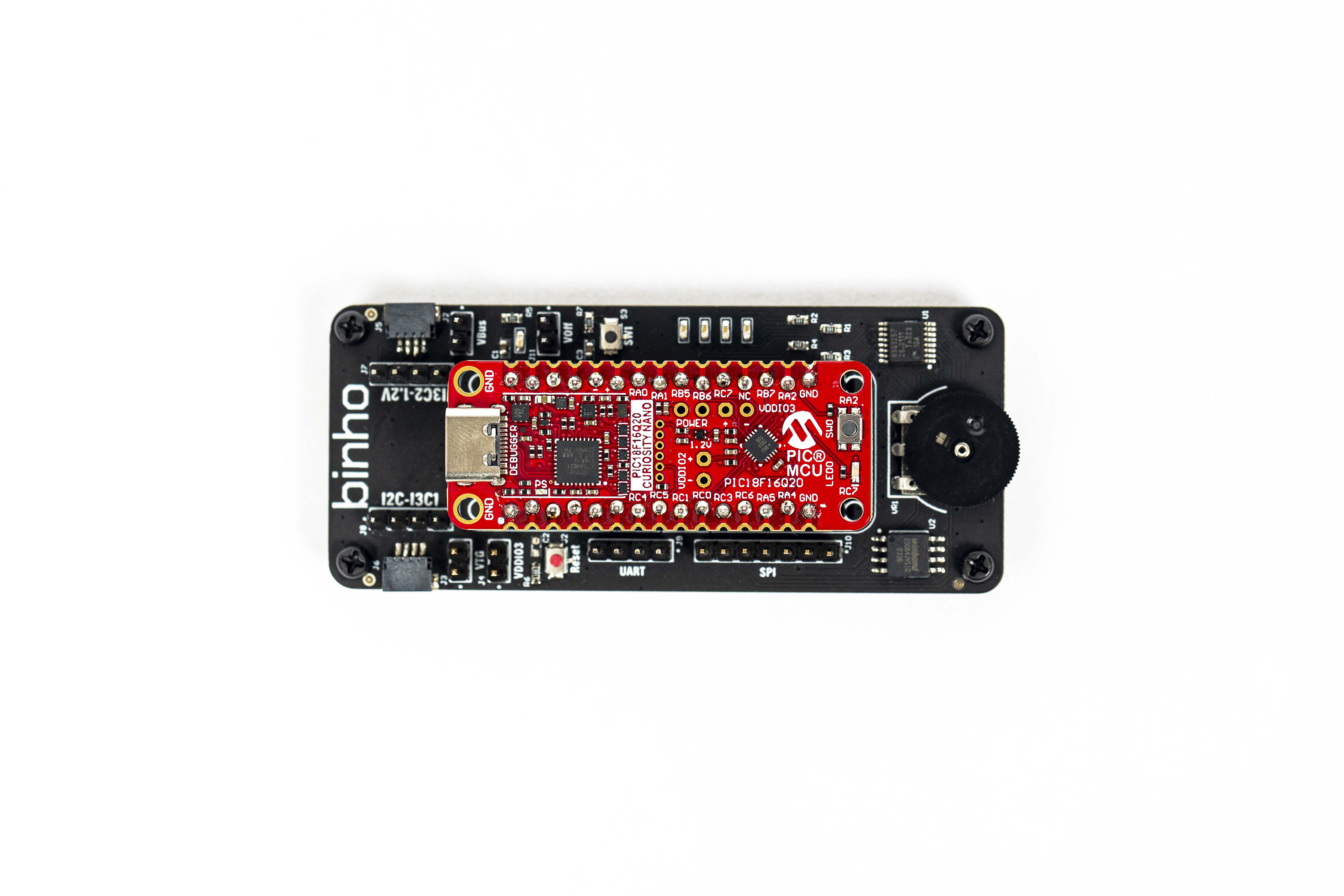

This accessory board was designed for use with Microchip's PIC18F16Q20 Curiosity Nano evaluation board (not included) and is perfectly designed to complement their I3C Multi-Protocol Translator example project. This application example demonstrates the implementation of an I3C Target in their 8-bit PIC microcontroller. As this MCU is an I3C Target-only implementation, the Supernova is a perfect companion for the I3C Controller.
// key features
Key features.
// pin access

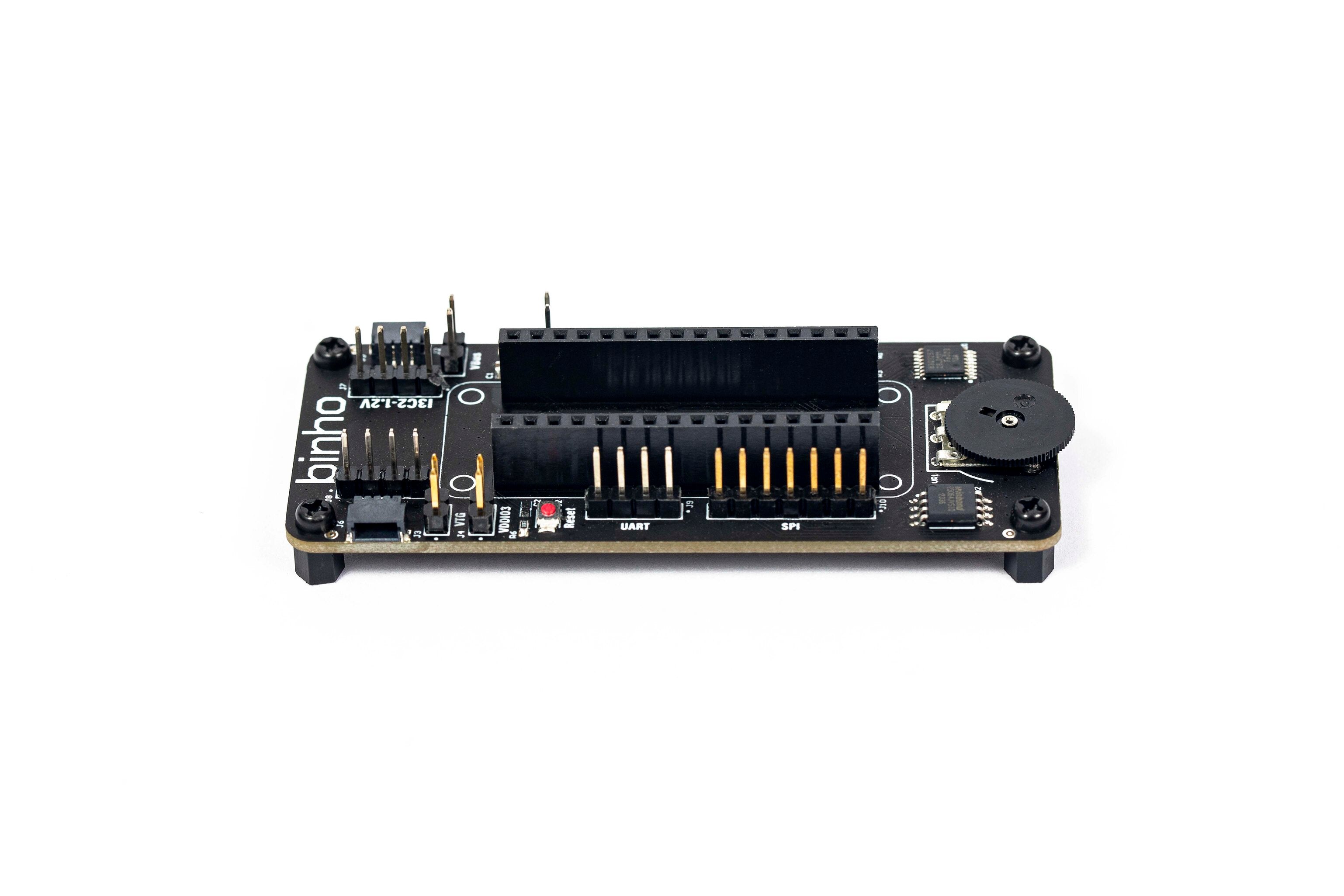

All pins broken out.
Standard 2.54 mm headers provide access to all pins.
// logic analyzer
Logic analyzer headers.
Dedicated headers on I3C SCL and SDA signals for easy bus monitoring.
// spi flash
Integrated SPI Flash memory.
W25Q64JV SPI Flash for demonstrating I3C-to-SPI protocol translation.
// analog input
Rotary potentiometer.
Integrated potentiometer for analog readings.
// visual feedback
Integrated LEDs.
Built-in LEDs for I3C GPIO Expander demo.
// expansion
External connections.
External connections for I2C Target devices and UART interface.
// technical details
What's on the board.
// included
Included components.
- W25Q64JV SPI Flash Memory (64 Mbit)
- Rotary potentiometer for analog input
- Multiple LEDs for GPIO demonstrations
- Standard 2.54 mm pin headers
// requirements
Requirements.
- Required (not included): Microchip PIC18F16Q20 Curiosity Nano evaluation board
- Binho Supernova USB Host Adapter (for I3C Controller functionality)
Ready to Get Started?
Add the PIC18F16Q20 Curiosity Nano I3C Target Demo Board to your Supernova toolkit and explore I3C multi-protocol translation.
