Binho Supernova

$1,999.00 SKU: BIN102

In Stock - Ships within 48 hours!

Quantity

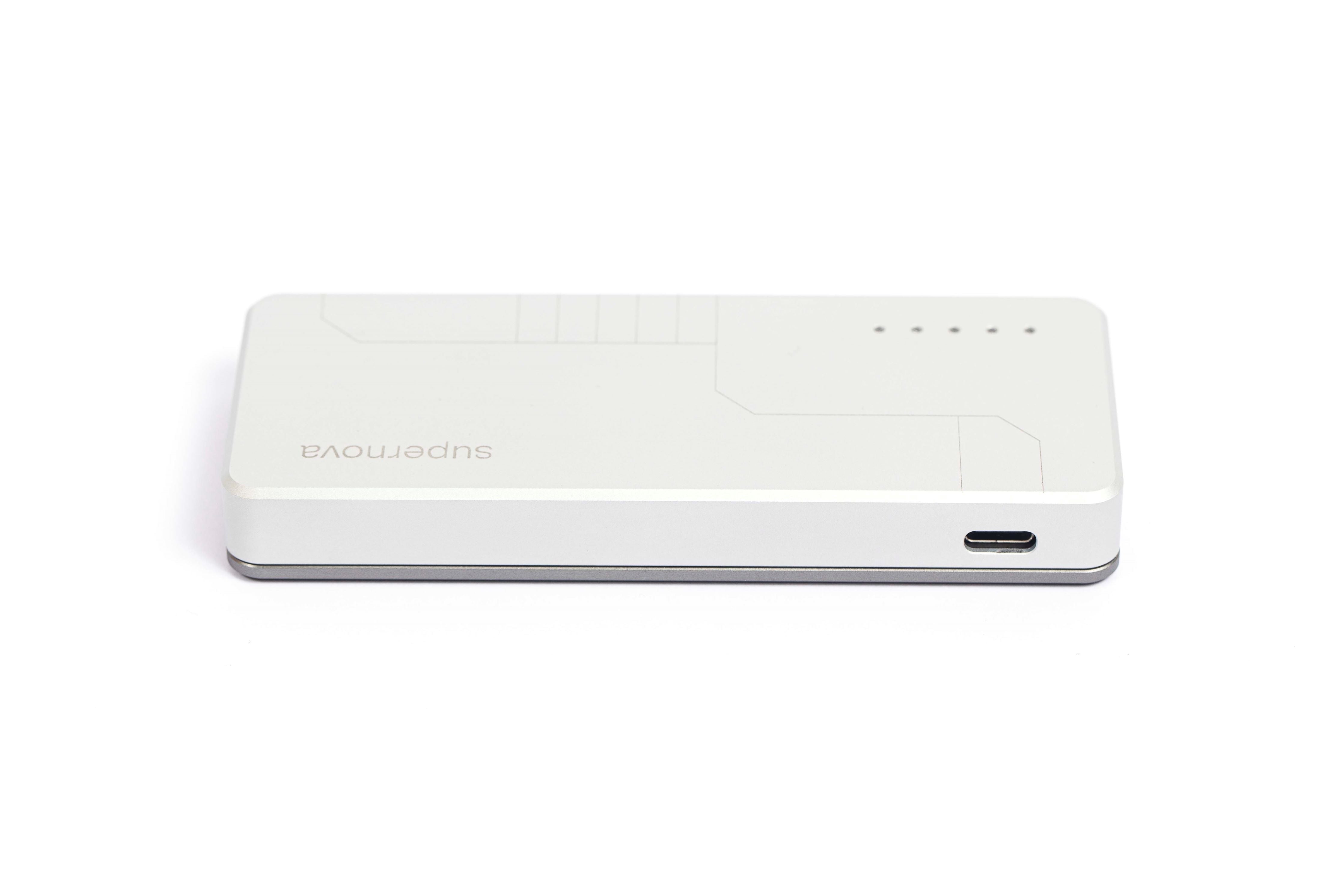

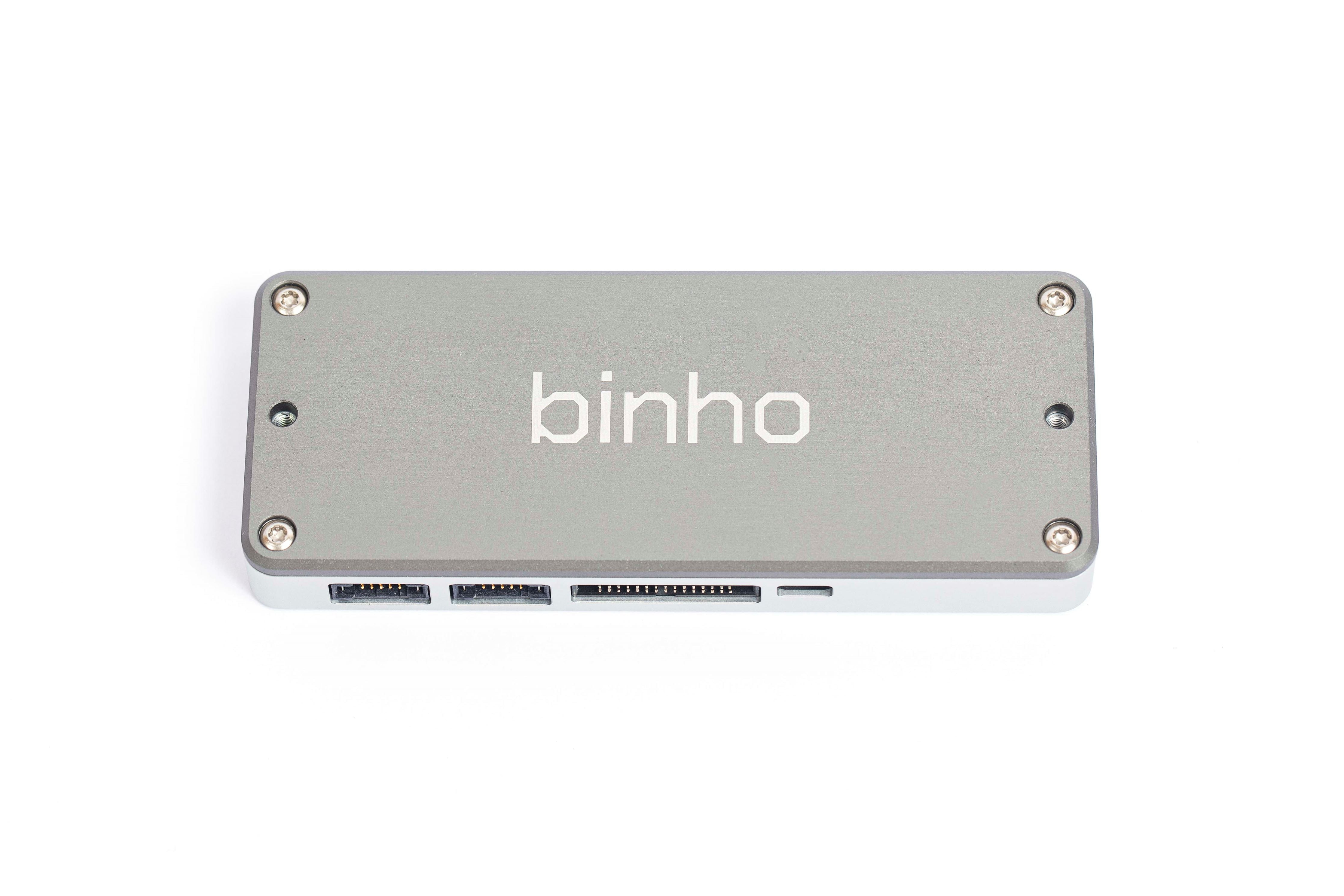

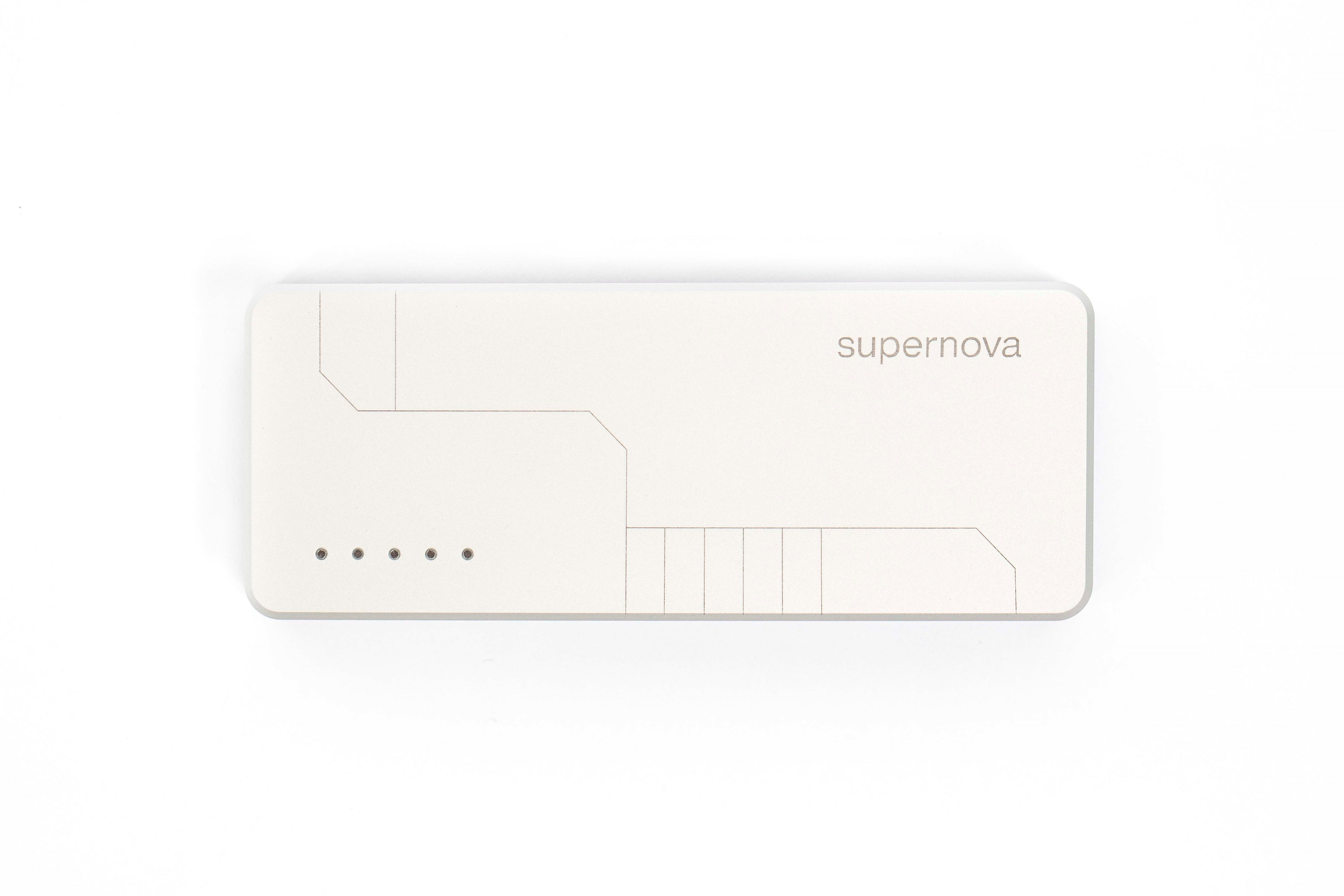

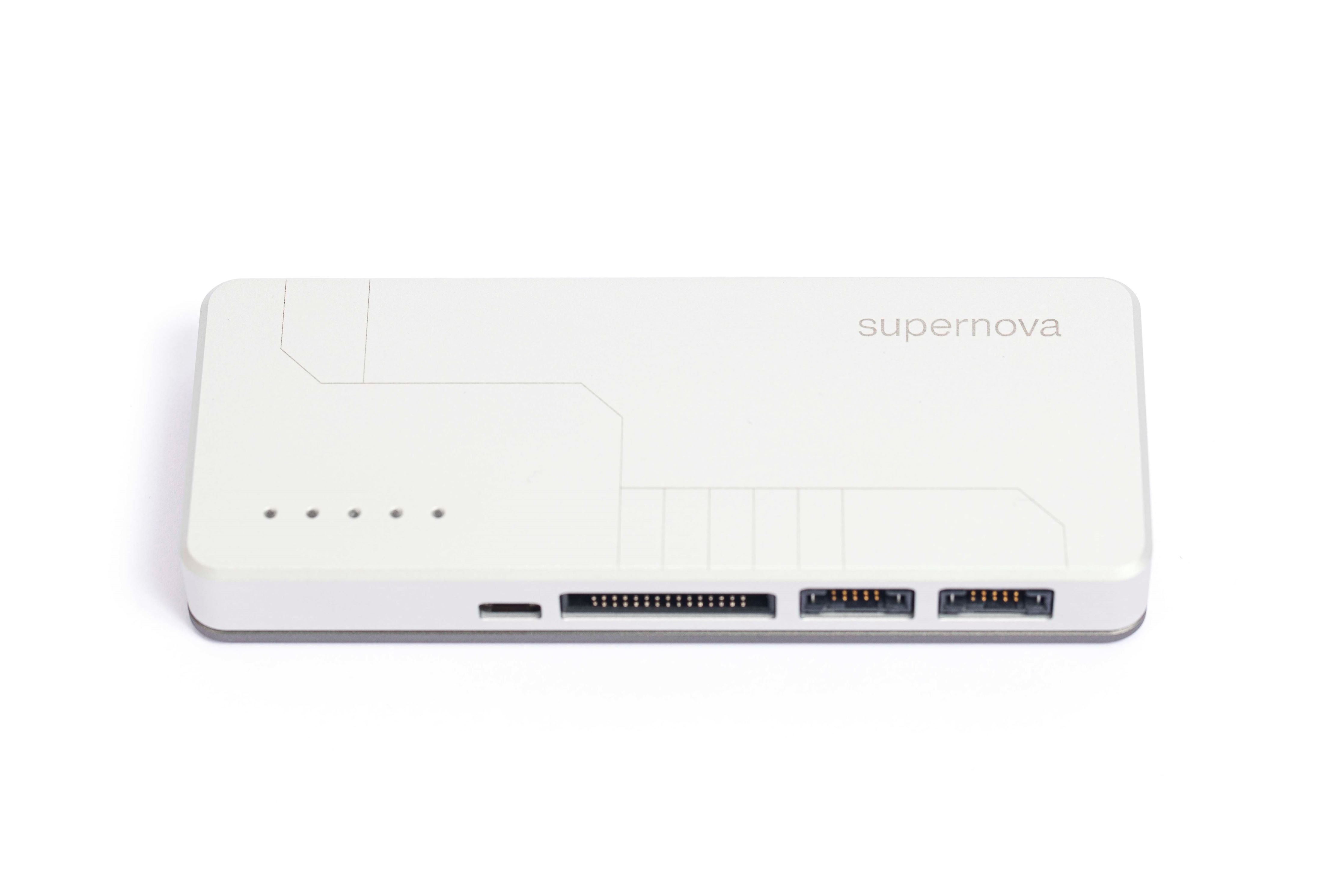

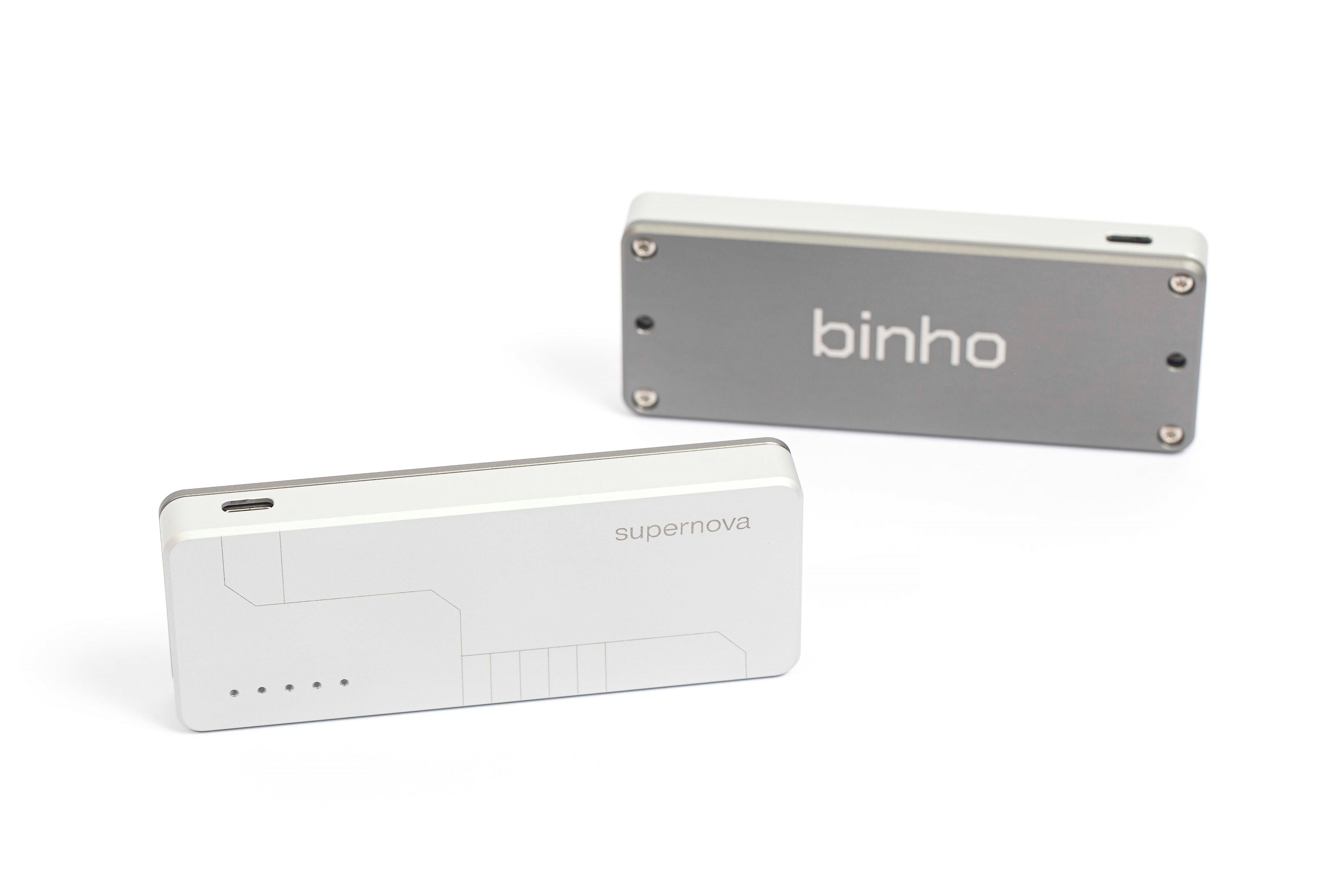

The Binho Supernova USB Host Adapter allows one to interface their computer directly to hardware circuits. Featuring support for MIPI I3C Protocol v1.0, v1.1.1, and v1.2, the Supernova offers an unmatched value proposition in the test tool market. The Supernova features a modern USB Type-C port for connection to the host PC, 5 x RGB LEDs for visual status indication, and a variety of DUT-facing connections all in a compact, robust machined-aluminum enclosure including integrated mounting holes.

Beyond I3C, the host adapter is able to communicate on several other digital buses: I2C, SPI, and UART. All of these protocols are implemented on their own dedicated pins and can be operated simultaneously. A bank of 6 x dedicated digital GPIO pins can be assigned to other related or unrelated purposes such as GPIO, interrupts, resets, chip selects, etc, as well as operating as digital PWM outputs (coming soon).

Key Features

Protocol Support

MIPI I3C Support

I3C Basic v1.0, v1.1.1, and v1.2
Controller or Target role
SDR mode, HDR-DDR
Support for IBI, HotJoin and all CCCs
Voltage range from 0.8V to 3.3V

SPI Protocol

SPI Controller
All 4 SPI Modes Supported
Up to 50 MHz max clock speed
Up to 4 x CS signals
Configurable MSB/LSB
SPI Peripheral (coming soon)
Voltage range from 1.2V to 3.3V

I2C Protocol

I2C Controller
1 MHz max clock speed
7-bit Addressing, Clock Stretching
Configurable Pull-up Resistors
10-bit Addressing (coming soon)
I2C Peripheral (coming soon)
Voltage range from 1.2V to 3.3V

UART Protocol

115200 max baud
Support for Hardware Flow Control
Voltage range from 1.2V to 3.3V

GPIO Pins

6 x Digital IO pins
Voltage range from 1.2V to 3.3V
Configurable as Interrupts
PWM Support (coming soon)

Additional Features

Power & Connectivity

Provides downstream power to DUT
Programmable from 1.2V to 3.3V

Enclosure & Design

Robust Machined Aluminum Enclosure
5 x RGB Status LEDs
Integrated mounting holes
Silent, Fanless design

Software & Support

Full-featured Software Support
Point-and-Click GUI
Cross-Platform: Windows, Mac, Linux
Python, C/C#/C++ SDKs
Field-Upgradeable Device Firmware

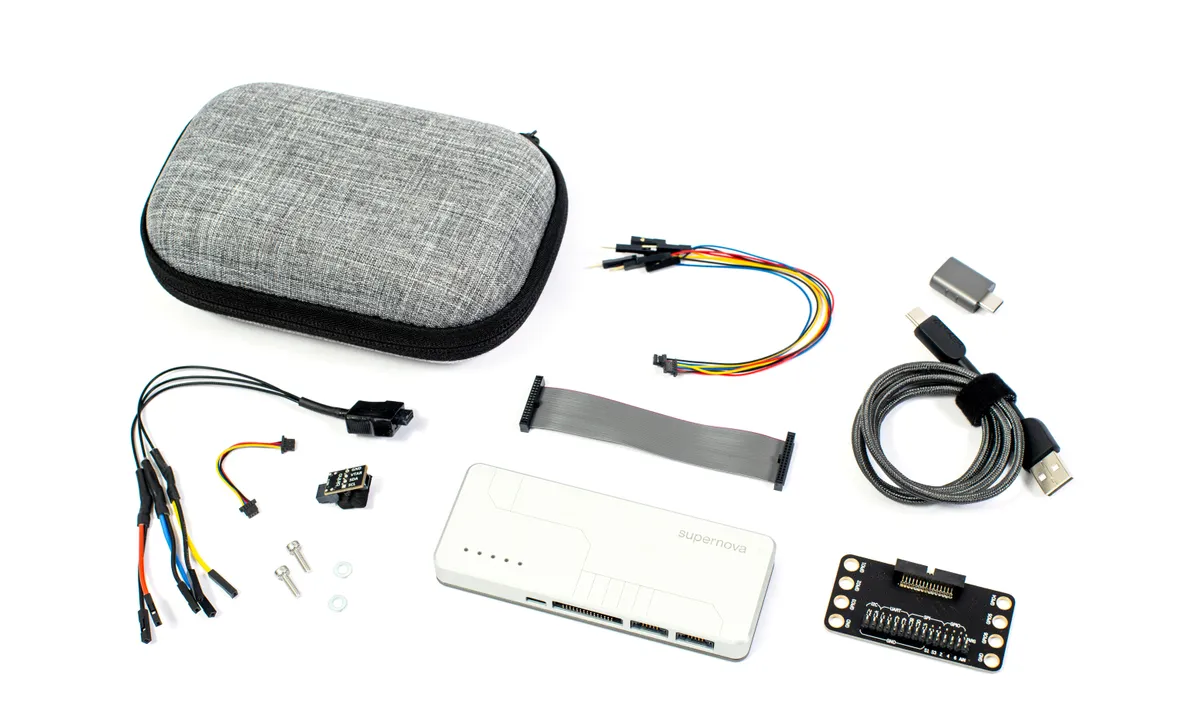

Package Contents

All cables and accessories included

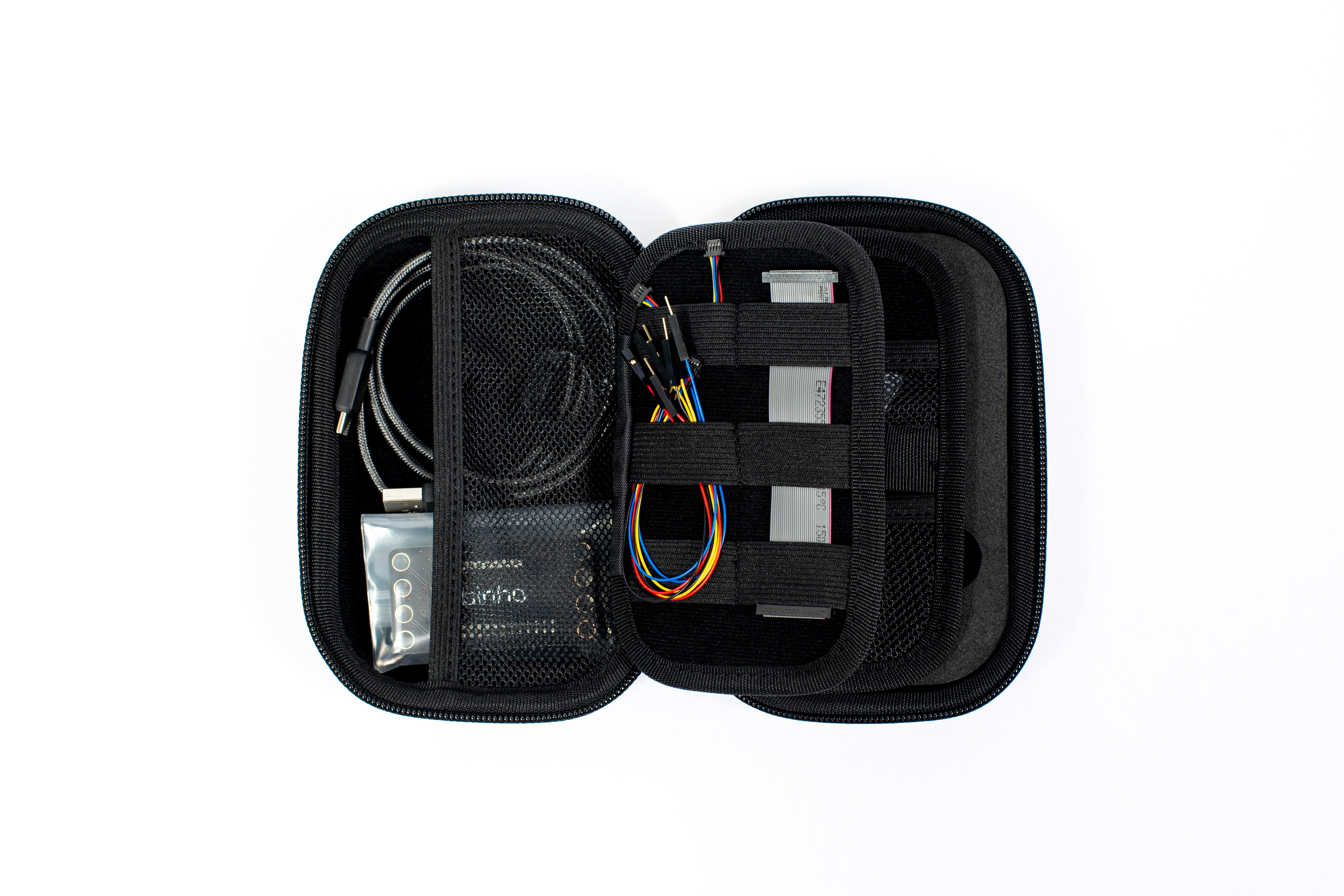

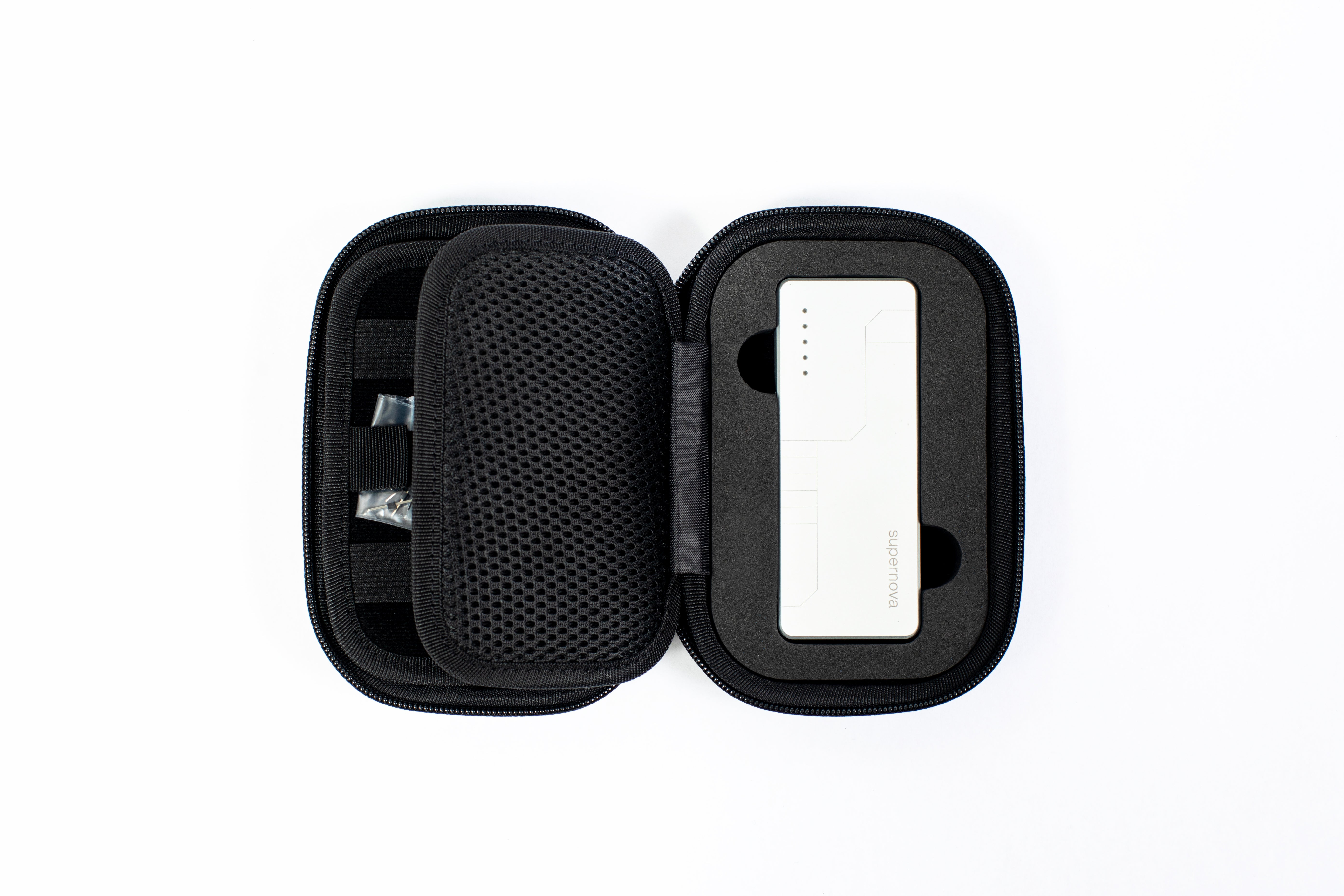

Stored in custom zippered case

Target Applications

Device Driver Development
Firmware Development & Verification
Proof of Concept Development
Automated HW/FW Testing
FLASH & EEPROM Programming
NVMe-MI (MCTP over I3C) & JESD300-5 SPD Applications

Download Product Datasheet

Software Support

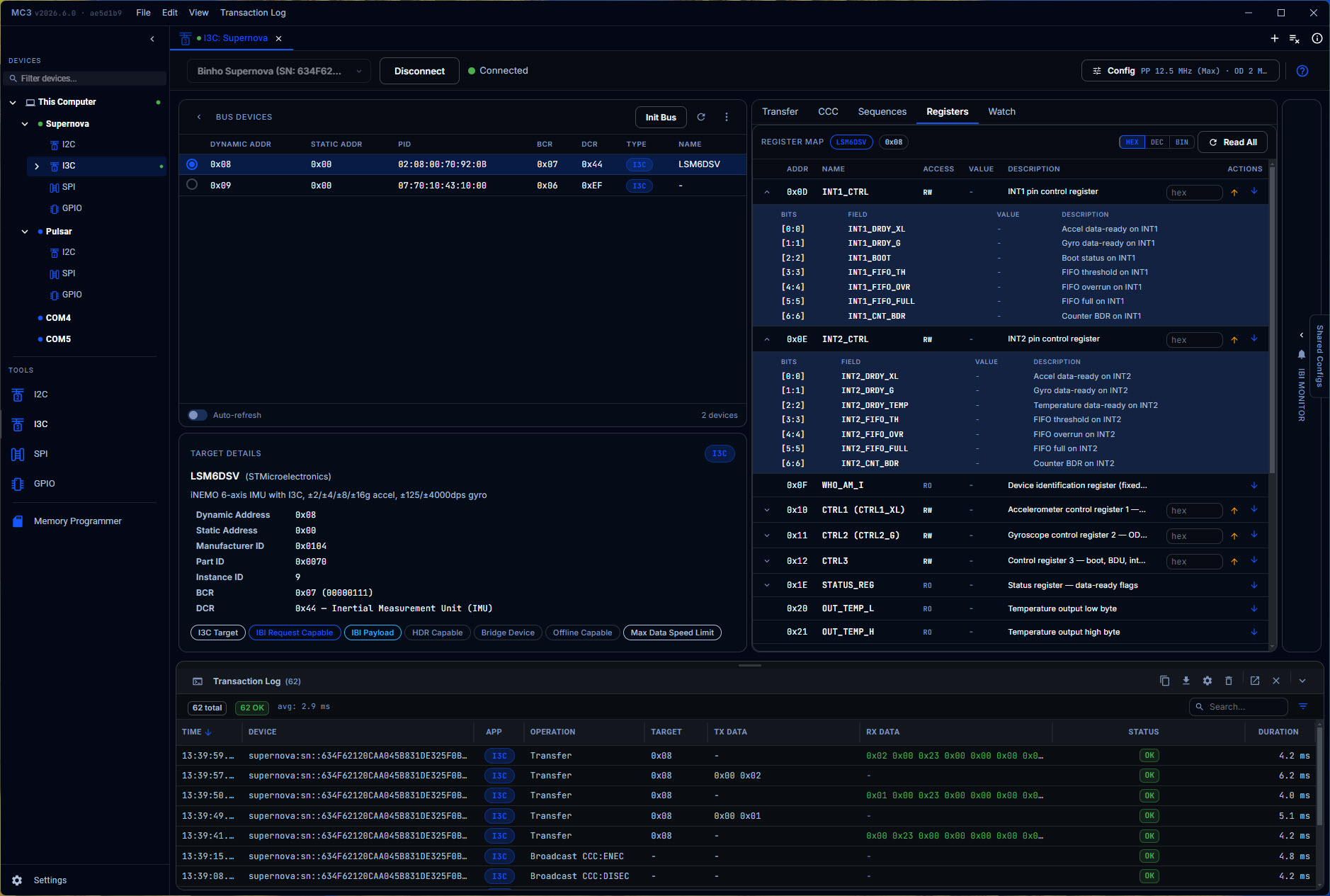

Use our Binho Mission Control cross-platform desktop GUI software to point-and-click to send I3C Transactions. Supernova also comes with a fully-baked python library to make automated testing a breeze. We even provide examples for real-time data streaming from I3C Targets using Jupyter Notebooks. For those looking to implement Supernova into their own software applications, we also offer a C/C++ SDK for direct device access.

Learn About Mission Control View Downloads

Try the Online Demo

The team at Microchip has produced an interactive online demo that pairs up their PIC18F16Q20 MCU acting as an I3C Target with the Binho Supernova serving as the I3C Controller. This demo highlights Supernova's I3C protocol capabilities, as well as its ability to be integrated into test fixtures and custom software stacks such as the framework that conducts this online demo in a web browser.

View Microchip TRY: I3C Protocol Features
