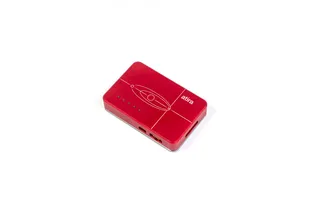

Binho Atira
More than just an SWD/JTAG debug probe, the Binho Atira puts the target embedded system under software control, from programmable downstream power with real-time voltage/current/power monitoring to an enhanced serial console, and built-in level shifting across 1.2 to 5.0 V.
The Binho Atira is an all-in-one development tool for modern embedded developers. It debugs over SWD, JTAG, SWO, and RTT, programs SPI flash and EEPROM at up to 24 MHz, and bridges an enhanced UART console, with integrated level shifting and configurable downstream power featuring real-time voltage, current, and power monitoring. Together these enable highly-productive workflows legacy tools cannot facilitate, and automated test and coding agents can drive Atira on their own, so teams ship better hardware, faster.

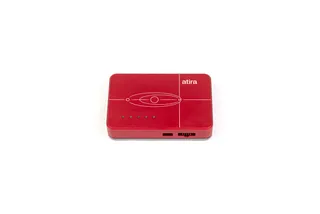

Atira connects with our Mission Control desktop GUI software for a point-and-click experience and is fully supported by our CosmicSDK for integrations with Python, C/C#/C++, and Java, all fully cross-platform for Windows, macOS, and Linux. The device comes with a modern USB Type-C connector and 5× RGB LEDs for visual status indication, all in a compact, machined-aluminum enclosure with integrated mounting holes.
// highlight
A probe for modern workflows.
From interactive debugging to automated test to agentic diagnostics, Atira fits every stage of modern development, from benchtop bring-up to mass production.
// debug
Debug any Arm Cortex-M.
SWD and JTAG with SWO trace and Real-Time Transfer (RTT), so stepping through code, watching live variables, and capturing event streams all run from Atira.
// program
Flash in seconds.
Program on-chip flash over SWD and JTAG, plus external SPI flash and EEPROM at up to 24 MHz, with read, write, verify, and erase.
// power
Power under software control.
A programmable 1.2 to 5.0 V supply feeds the target and power-cycles it on command, so bring-up and CI reset the hardware without reaching for a cable.
// measure
Real-time power insight.
Live voltage, current, and power on the target supply, streamed during debug, to show exactly what the firmware draws.
// level shift
Matches any logic level.
Bidirectional level shifting from 1.2 to 5.0 V on every line, so a modern low-voltage part wires straight to the probe with nothing extra on the bench.
// observe
An observable console.
Atira shows up as two virtual COM ports: one drives the target, one is a read-only tap that mirrors the traffic, so scripts and coding agents can observe every byte for diagnostics and reverse engineering.
// interfaces
A complete interface to the target.
From debug and trace to programming, serial, and a measured power rail, Atira covers the full connection to the hardware.
Debug
- SWD and JTAG for Arm Cortex-M
- Flash and verify MCUs for production
- Run control: halt, step, breakpoints, watchpoints
- Works with pyOCD, OpenOCD, and CMSIS-DAP-aware IDEs
- SWO trace and Real-Time Transfer (RTT)
- Cross-platform: Windows, macOS, and Linux
SPI Programming
- External SPI flash and EEPROM via a 24 MHz SPI controller
- Configurable SPI mode and clock rate
- Arbitrary SPI transfers to any device
- Read, write, verify, and erase
- Scriptable for production and CI programming
UART Bridge
- Full-duplex USB-UART bridge (CDC-ACM)
- Up to 2 Mbaud, optional RTS/CTS flow control
- Two virtual COM ports: one to drive, one to monitor
- Read-only tap for logging, diagnostics, reverse engineering, and coding agents
Downstream Power
- Source or reference downstream voltage, 1.2 to 5.0 V
- Real-time voltage, current, and power monitoring
- Software power-cycling on command
- Bidirectional level shifting referenced to the rail
// hardware
Made for real work.

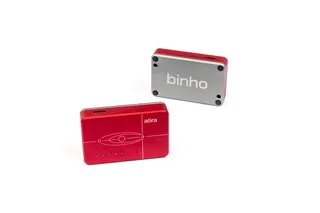

A robust, machined-aluminum instrument built to live on the bench and drop into production fixtures.
// enclosure
Machined aluminum.

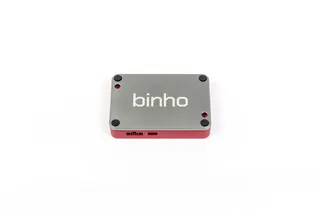

CNC-machined enclosure with two M3 mounting holes and fasteners included.
// status

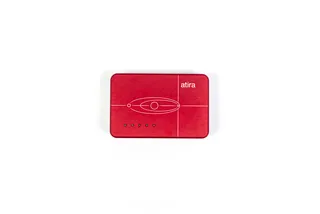

5× RGB status LEDs.
Device mode, operating state, and bus activity, visible across the bench.
// firmware
Easy firmware updates.
New capabilities load over USB, so the probe keeps improving over time.
// connection

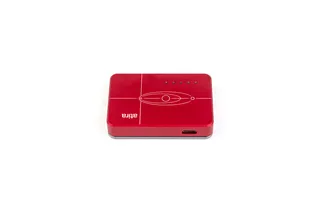

USB-C, driverless.
USB 2.0 Full-Speed, bus-powered, driverless on Windows, macOS, and Linux.
// software
From point-and-click to mass production.
Open the GUI for exploratory testing. Reach for Python to automate. Drop the SDK into the test stack when shipping product. It also works with pyOCD, OpenOCD, and CMSIS-DAP-aware IDEs.
// toolchains
Open toolchains.
Built on open CMSIS-DAP v2, so pyOCD, OpenOCD, and CMSIS-DAP-aware IDEs work out of the box, driverless and vendor-neutral.
// gui
Mission Control.
A cross-platform, point-and-click GUI for Windows, macOS, and Linux. Flash, debug, and run transactions with no code.
Explore Mission Control 3// sdk
Python & C/C++ SDK.
Automate flashing and debug from a documented Python library or the C/C#/C++ SDK, and gang many units for production.
View downloads// ai native
Ready for coding agents.
A scriptable, open interface lets an AI agent flash firmware, drive debug, watch serial traffic, and monitor voltage and power, all from a single prompt.
// the prompt
Use Atira to flash build/firmware.bin over SWD, halt the core, and read back the first 64 bytes to verify.
One prompt in. The agent runs it on real silicon and reports back.
// applications
Target use-cases.
Firmware development & debug
Rapid prototyping
USB to UART bridging
Automated HW / FW testing
FLASH & EEPROM programming
Production programming
// what's included

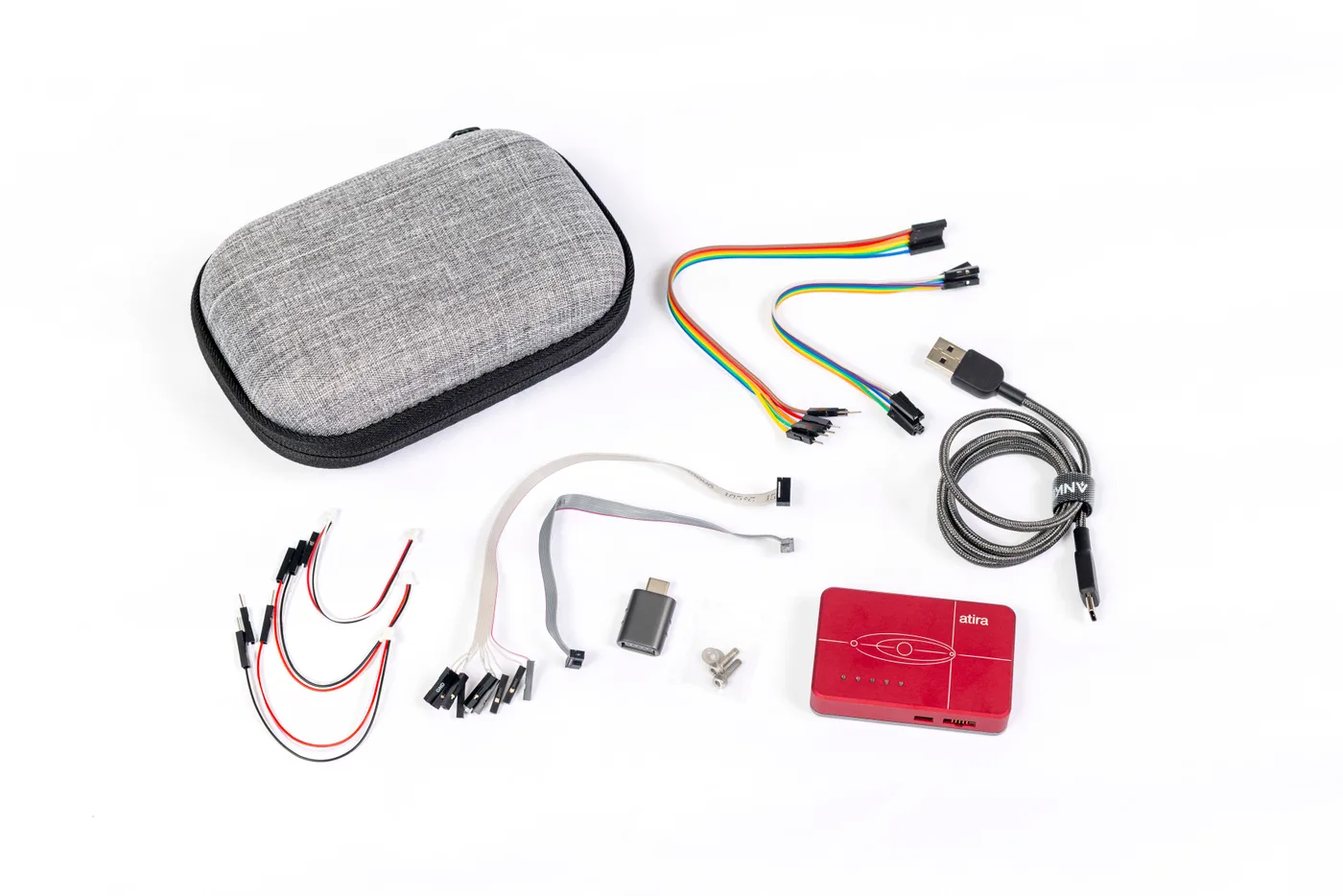

Everything to get started.

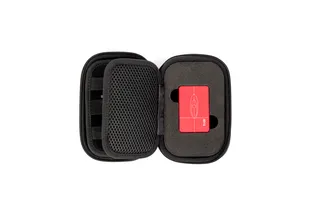

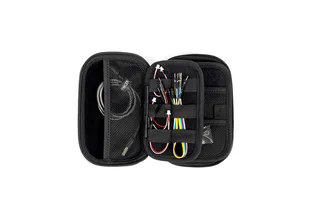

Atira ships with every cable and adapter needed to drop it onto the bench, in a custom protective carry case.
1× Binho Atira
Programming Port Kit
- 1× 2x5-pin 1.27 mm IDC ribbon cable
- 1× 2x5-pin 1.27 mm IDC ribbon cable with 2.54 mm female headers
6-pin Serial Interface Port Kit
- 1× 6-pin 2.54 mm cable with male headers
- 1× 6-pin 2.54 mm cable with female headers
3-pin UART Port Kit
- 1× 3-pin 1.0 mm JST SH cable with male headers
- 1× 3-pin 1.0 mm JST SH cable with female headers
- 1× 3-pin 1.0 mm JST SH plug-to-plug cable
USB Kit
- 1× USB Type-C to Type-A cable
- 1× USB Type-A to Type-C adapter
Mounting Kit
- 2× mounting screws
- 2× washers
1× Custom protective zippered carry case
// trusted by engineering teams at
+ hundreds more
Ready to Get Started?
Go beyond debugging. Programmable power, real-time monitoring, and serial for modern embedded development.
