You’ve outgrown the Aardvark. Meet the upgrade.
Don’t be held back by legacy tools that slow down your project. Modern development needs modern tools. For I²C and SPI, the Binho Pulsar delivers 40× the host bandwidth and up to 6× the SPI clock, plus a lot more than just I²C and SPI. Built to last, and ready for your AI agents.
Not ready to switch? Try Pulsar’s software in your browser →
Ships worldwide · Windows, macOS, Linux · Royalty-free SDK · US-based engineering support
// host link
Pulsar runs USB 2.0 High Speed. The Aardvark tops out at USB Full Speed, 12 Mbps. Your data reaches the host about 40 times faster.
// i²c + spi
Up to 50 MHz SPI and 1 MHz I²C, against 8 MHz and 800 kHz on the Aardvark. SPI runs up to 6× quicker, all driven by modern Mission Control 3 software, not aging Control Center.
// built to last
Machined-aluminum case, USB-C, integrated mounting holes. The Aardvark is a plastic housing with a USB-B port and a 10-pin ribbon.
// i²c and spi
Talk to any I²C or SPI device.
I²C
1 MHz max- Controller and Target
- Two independent I²C buses
- 7-bit and 10-bit addressing
- Clock stretching
- Configurable pull-up resistors
- 16 KB max transaction size
SPI
50 MHz max- Controller and Target
- Up to 16 MHz (peripheral mode)
- All four SPI modes
- Up to 4× chip-select signals
- Configurable MSB / LSB
- 16 KB max transaction size
// head to head
On I²C and SPI, point for point.
| Binho Pulsar | TP Aardvark | |
|---|---|---|
| // Hardware & protocols | ||
| Host link | USB 2.0 High Speed, 480 Mbps | USB Full Speed, 12 Mbps |
| SPI clock | 50 MHz Controller / 16 MHz Peripheral | 8 MHz master / 4 MHz slave |
| I²C clock | 1 MHz | 800 kHz |
| Signal voltage | 1.2 to 3.3 V | 3.3 V only |
| Programmable DUT power | 1.2 to 3.3 V rail | Fixed +5 V only |
| Pull-up resistors | Programmable resistance | On / off only |
| Host connector | USB-C | USB-B |
| Target connection | Dedicated connectors | Integrated ribbon cable |
| Enclosure | Machined aluminum, 5× RGB LEDs | Plastic housing |
| Mounting | Integrated mounting holes | None |
| Additional protocols | UART, RS-485, 1-Wire, CAN-FD | I²C / SPI only |
| I²C target / SPI peripheral | Yes, SPI to 16 MHz | Yes, SPI to 4 MHz |
| // Software support | ||
| I²C / SPI transactions GUI Tool | Mission Control 3 · Win / macOS / Linux | Control Center · Win / macOS / Linux |
| Memory programming GUI Tool | Mission Control 3 · Win / macOS / Linux | Flash Center · Windows / Linux only |
| Installs & drivers | One app, no driver. Zero installs via the web app. | Two apps plus a device driver |
| Web version available | Yes, try it here | No |
| Device SDK | Python · Java · C / C++ / C# | C / Python / .NET |
| // Pricing | ||
| Price | $349 | $375 |
// trusted by engineering teams at
+ hundreds more
Ready to accelerate development?
or keep scrolling to learn more
// see it in action
Drive I²C without writing code.
Mission Control 3 turns bus work into point-and-click. Compose a transaction and run it, then chain a whole sequence and fire it in one go.
// point and click
Run a transaction with a click.
Compose an I²C read or write in the GUI and send it straight to your device.
// sequences
Chain them into a sequence.
Line up a series of transactions and run them together, repeatable and ready to replay whenever you need them.
// memory programming
Program EEPROM and SPI FLASH memories with ease.
Reading and writing I²C EEPROMs and SPI flash is one of the top use-cases for host adapters. Mission Control 3’s Memory Programmer does it with a visual hex editor, per-chip presets, read / write / verify / blank-check / erase, and binary file load and save, then goes places Total Phase’s Flash Center can’t.
// every os
macOS included.
Runs natively on Windows, macOS, and Linux. Flash Center is Windows and Linux only, so Mac users are stuck in a VM.
// in your browser
Or no install at all.
Program straight from a browser tab. Nothing to download, nothing to license, on any machine.
// try it now
Test drive it today.
Launch a simulated device in the web app and read, write, and verify right now, before your Pulsar even ships.
// get mission control 3
Get Mission Control 3.
Try it right now in your browser with a simulated device, no hardware required, or install the desktop app for Windows, macOS, or Linux.
Launch in your browser// or download the desktop app · v2026.6.1
// in the box
Everything you need. Running in under a minute.
Every cable, adapter, breakout, and mounting accessory ships in a protective case. Plug in over USB-C and you are on the bus, with no extra parts to source.
1× Binho Pulsar USB Host Adapter
Differential Port Kit
- 1× 4-pin JST PH cable with female headers
- 1× 4-pin JST PH cable with male headers
Dedicated I2C Port Kit
- 1× 4-pin JST SH (Qwiic-compatible) to 4-pin JST SH cable
- 1× 4-pin JST SH (Qwiic-compatible) cable with male headers
- 1× 4-pin JST SH (Qwiic-compatible) cable with female headers
Multifunction Port Breakout Kit
- 1× 30-conductor IDC ribbon cable
- 1× ribbon cable to 2.54 mm pitch header breakout board
USB Kit
- 1× USB Type-C to Type-A cable
- 1× USB Type-A to Type-C adapter
Mounting Kit
- 2× mounting screws
- 2× washers
1× Custom protective zippered carry case
// keep your fixtures
Your fixtures come with you.

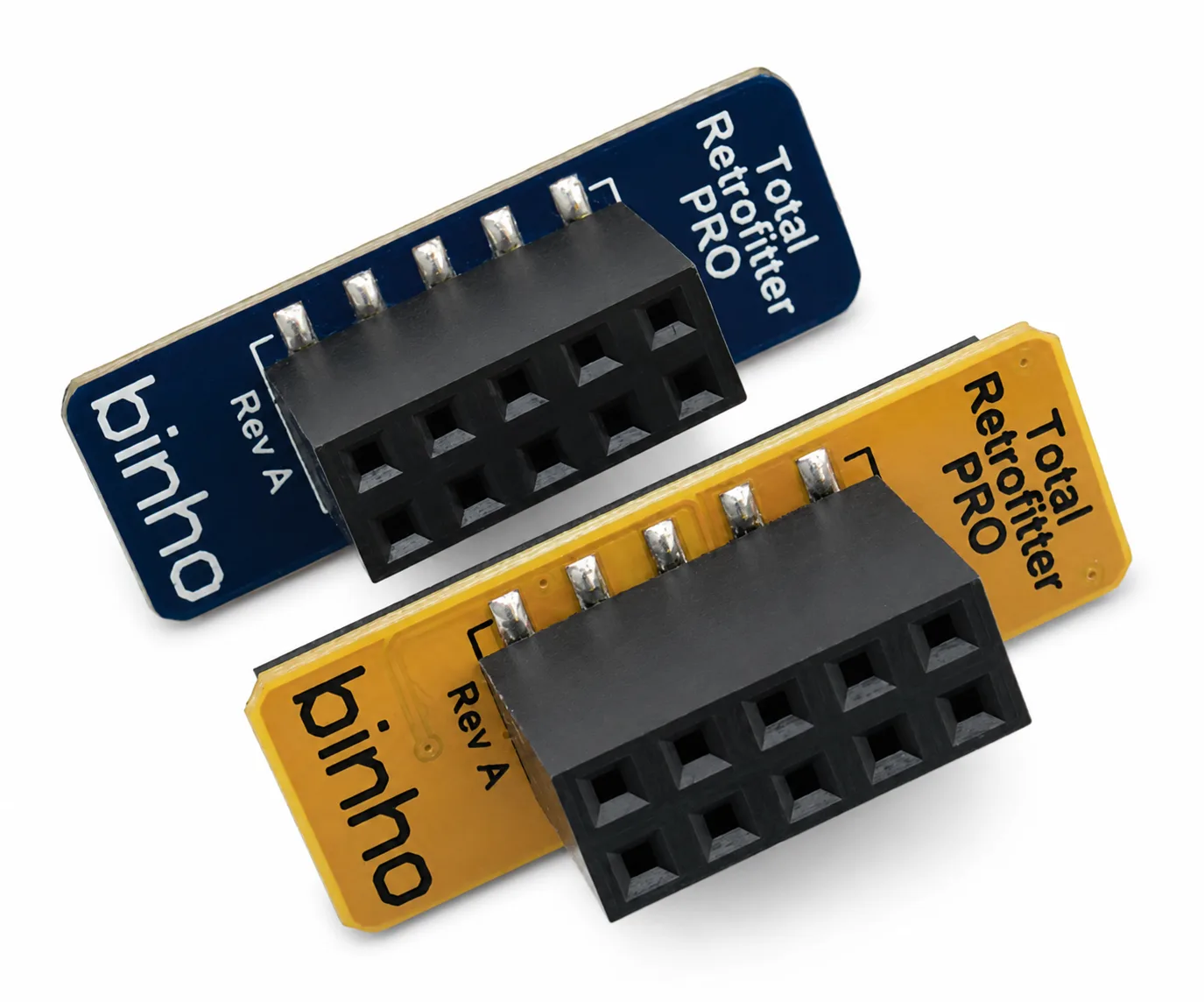

Every Pulsar ships with two Total Retrofitter Pro adapters, one for I²C and one for SPI, that drop straight onto the 10-pin headers your Aardvark boards and fixtures already use. Same cable, same board. All-new capabilities.
Supercharge embedded development!
// and there's more
Pulsar goes beyond two protocols.
Everything above already wins on I²C and SPI. The Aardvark stops at those two. Pulsar keeps going, so the next board that needs another bus does not cost you another tool.
// ai native
Ready for your agents.
An open, fully documented SDK lets an AI agent drive real silicon over I2C, SPI, UART, RS-485, and CAN-FD, learning the whole API from a single prompt. It is the kind of modern workflow a legacy adapter was never built for.
// the prompt
Use the Pulsar to scan the I2C bus, read the EEPROM at 0x50, and tell me what is stored there.
One sentence in. The agent learns the API, runs it on real silicon, and reports back.
// faq
Common questions.
How can I elegantly connect a Pulsar to a header designed for Aardvark?
Every Pulsar includes an adapter to enable it to directly interface with connectors designed for Aardvark's harness.
Is the Binho Pulsar a good upgrade from the Total Phase Aardvark?
Yes, and then some. The Pulsar handles the same I²C and SPI work you rely on the Aardvark for, controller and target alike, but over USB 2.0 High Speed at 480 Mbps instead of the Aardvark's USB Full Speed 12 Mbps, and at up to 6 times the SPI clock. Built-in level shifters let it talk to 1.2 to 3.3 V logic with no external level-shifting circuitry, and a programmable voltage output can power your downstream device directly. With a machined-aluminum enclosure you can mount, the Pulsar is a genuine, premium upgrade over an aging legacy device.
Does the Pulsar do I²C and SPI like the Aardvark?
Yes, as both controller and target. Pulsar is an I²C controller to 1 MHz and an SPI controller to 50 MHz, with up to four chip-selects and all four SPI modes. It also does I²C target and SPI peripheral operation, and better than the Aardvark: the target logic runs on the adapter itself, so it behaves like a real device with no host round-trip latency, at up to 16 MHz versus the Aardvark’s 4 MHz SPI slave.
What does the Pulsar add beyond I²C and SPI?
UART and RS-485, six dedicated GPIO, and a programmable 1.2 to 3.3 V DUT-power rail, plus CAN-FD and 1-Wire. One tool for the whole bench instead of a single-purpose adapter.
Does the Pulsar support MIPI I3C?
No. The Pulsar covers I²C, SPI, UART, and RS-485, but not I3C. If you need MIPI I3C, reach for the Binho Supernova: it adds I3C alongside I²C, SPI, UART, and GPIO, and runs on the very same Mission Control 3 software and SDKs as the Pulsar, so moving between them is seamless.
Explore the Binho Supernova How do I control it?
The Mission Control 3 desktop app (Windows, macOS, Linux) gives you a full GUI with no code, plus Python, Java, and C/C++/C# SDKs for automated test. Nothing to license.
Move past the Aardvark.
Same I²C and SPI, controller and target. Faster to the host, sturdier on the bench, ready for whatever your next board needs.
Buying for a team? Request a quote
