// total phase cheetah upgrade
Keep the fast SPI. Lose the limits.
Keep the high-speed SPI you bought the Cheetah for. Then get I²C, UART, RS-485, GPIO, and more from one tool. The Binho Pulsar is a modern, cross-platform host adapter built to last and ready for your AI agents.
Ships worldwide · Windows, macOS, Linux · Royalty-free SDK · US-based engineering support
// every bus
The Cheetah speaks SPI and nothing else. Pulsar adds I²C, UART, RS-485, GPIO, CAN-FD, and 1-Wire, all in the same tool.
// spi speed
You keep the high-speed SPI you bought the Cheetah for: a 50 MHz SPI controller with four chip-selects, over the same USB 2.0 High Speed link.
// built to last
Machined-aluminum case, USB-C, and integrated mounting holes, against the Cheetah’s plastic housing and USB-B port.
// i²c and spi
Talk to any I²C or SPI device.
I²C
1 MHz maxcontroller, configurable pull-ups
- I²C controller
- 7-bit addressing, clock stretching
- Configurable pull-up resistors
- 1.2 V to 3.3 V
SPI
50 MHz maxcontroller, 4× chip-select
- SPI controller
- All four SPI modes
- Up to 4× chip-select signals
- 1.2 V to 3.3 V
// head to head
High-speed SPI, and everything after it.
| Binho Pulsar | TP Cheetah | |
|---|---|---|
| // Hardware & protocols | ||
| Host link | USB 2.0 High Speed, 480 Mbps | USB 2.0 High Speed, 480 Mbps |
| SPI clock | 50 MHz | 40 MHz |
| SPI chip-selects | 4 | 3 |
| I²C | 1 MHz controller | Not supported |
| Additional protocols | UART, RS-485, GPIO, CAN-FD, 1-Wire | SPI only |
| Signal voltage | 1.2 to 3.3 V | 3.3 V only |
| Programmable DUT power | 1.2 to 3.3 V rail | Fixed +5 V only |
| Host connector | USB-C | USB-B |
| Target connection | Dedicated connectors | Integrated ribbon cable |
| Enclosure | Machined aluminum, 5× RGB LEDs | Plastic housing |
| Mounting | Integrated mounting holes | None |
| // Software support | ||
| SPI transactions GUI Tool | Mission Control 3 · Win / macOS / Linux | Control Center · Win / macOS / Linux |
| Memory programming GUI Tool | Mission Control 3 · Win / macOS / Linux | Flash Center · Windows / Linux only |
| Installs & drivers | One app, no driver. Zero installs via the web app. | Two apps plus a device driver |
| Web version available | Yes, try it here | No |
| Device SDK | Python · Java · C / C++ / C# | C / Python / .NET |
Credit where it is due. The Cheetah is a proven, purpose-built high-speed SPI adapter, and it is fast. But that is all it does. Pulsar matches its SPI headroom and then covers every other bus on your board, with one app, Mission Control 3, that handles transactions and memory programming instead of the separate tools you juggle for the Cheetah.
// trusted by engineering teams at
+ hundreds more
Ready to accelerate development?
or keep scrolling to learn more

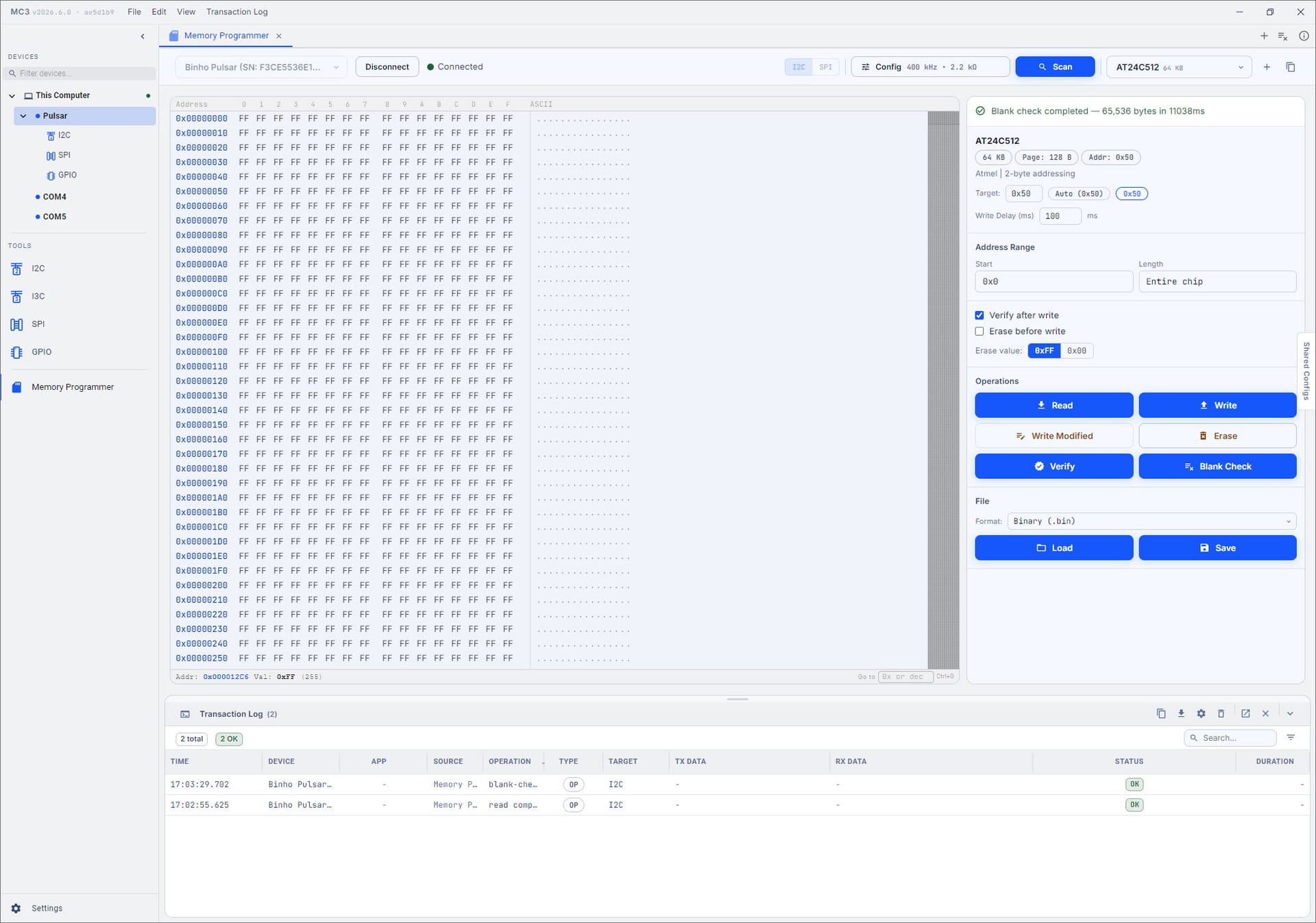

// memory programming
Program EEPROM and SPI FLASH memories with ease.
Reading and writing I²C EEPROMs and SPI flash is one of the top use-cases for host adapters. Mission Control 3’s Memory Programmer does it with a visual hex editor, per-chip presets, read / write / verify / blank-check / erase, and binary file load and save, then goes places Total Phase’s Flash Center can’t.
// every os
macOS included.
Runs natively on Windows, macOS, and Linux. Flash Center is Windows and Linux only, so Mac users are stuck in a VM.
// in your browser
Or no install at all.
Program straight from a browser tab. Nothing to download, nothing to license, on any machine.
// try it now
Test drive it today.
Launch a simulated device in the web app and read, write, and verify right now, before your Pulsar even ships.
// see it in action
Drive I²C without writing code.
Mission Control 3 turns bus work into point-and-click. Compose a transaction and run it, then chain a whole sequence and fire it in one go.
// point and click
Run a transaction with a click.
Compose an I²C read or write in the GUI and send it straight to your device.
// sequences
Chain them into a sequence.
Line up a series of transactions and run them together, repeatable and ready to replay whenever you need them.
// get mission control 3
Get Mission Control 3.
Try it right now in your browser with a simulated device, no hardware required, or install the desktop app for Windows, macOS, or Linux.
Launch in your browser// or download the desktop app · v2026.6.0
// in the box
Everything you need. Running in under a minute.
Every cable, adapter, breakout, and mounting accessory ships in a protective case. Plug in over USB-C and you are on the bus, with no extra parts to source.

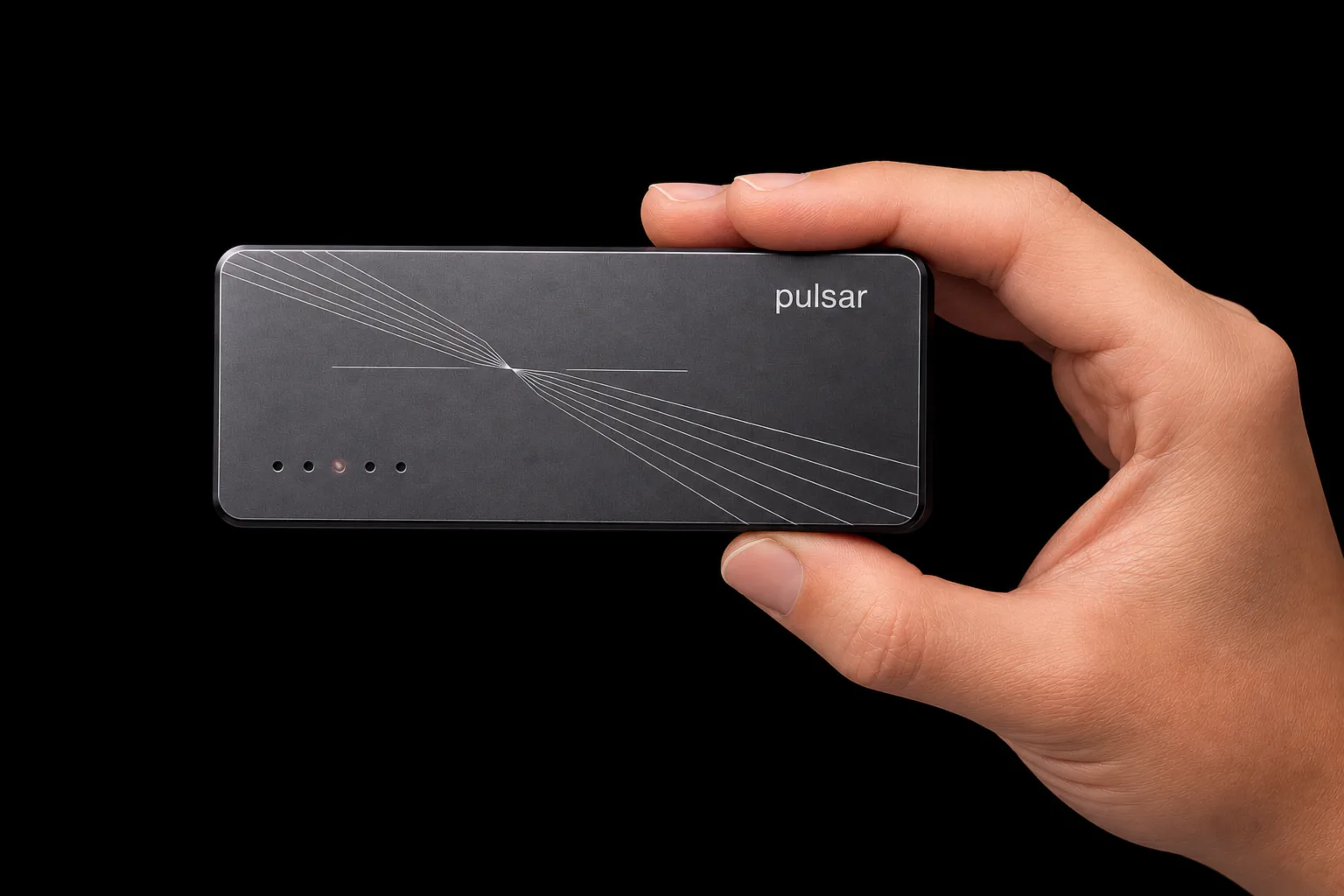

1× Binho Pulsar USB Host Adapter
Differential Port Kit
- 1× 4-pin JST PH cable with female headers
- 1× 4-pin JST PH cable with male headers
Dedicated I2C Port Kit
- 1× 4-pin JST SH (Qwiic-compatible) to 4-pin JST SH cable
- 1× 4-pin JST SH (Qwiic-compatible) cable with male headers
- 1× 4-pin JST SH (Qwiic-compatible) cable with female headers
Multifunction Port Breakout Kit
- 1× 30-conductor IDC ribbon cable
- 1× ribbon cable to 2.54 mm pitch header breakout board
USB Kit
- 1× USB Type-C to Type-A cable
- 1× USB Type-A to Type-C adapter
Mounting Kit
- 2× mounting screws
- 2× washers
1× Custom protective zippered carry case
Supercharge embedded development!
// and there's more
Pulsar goes beyond one protocol.
You keep the high-speed SPI the Cheetah is known for. The Cheetah stops there. Pulsar keeps going, so the next board that needs another bus does not cost you another tool.
// ai native
Ready for your agents.
An open, fully documented SDK lets an AI agent drive real silicon over I2C, SPI, UART, RS-485, and CAN-FD, learning the whole API from a single prompt. It is the kind of modern workflow a legacy adapter was never built for.
// the prompt
Use the Pulsar to scan the I2C bus, read the EEPROM at 0x50, and tell me what is stored there.
One sentence in. The agent learns the API, runs it on real silicon, and reports back.
// faq
Common questions.
How can I elegantly connect a Pulsar to a header designed for the Cheetah?
Every Pulsar includes an adapter to enable it to directly interface with connectors designed for the Cheetah's harness.
Is the Binho Pulsar a good upgrade from the Total Phase Cheetah?
Yes. The Pulsar keeps the high-speed SPI you bought the Cheetah for, a 50 MHz SPI controller with four chip-selects and all four modes over USB 2.0 High Speed, then adds every bus the Cheetah can't touch: I²C, UART, RS-485, GPIO, CAN-FD, and 1-Wire. All in a machined-aluminum enclosure with one modern, cross-platform app.
Does the Pulsar do high-speed SPI like the Cheetah?
Yes. Pulsar is an SPI controller to 50 MHz with up to four chip-selects and all four SPI modes, over the same USB 2.0 High Speed link, so you keep the SPI performance the Cheetah is known for.
Can the Pulsar program SPI flash like the Cheetah?
Yes. Mission Control 3's Memory Programmer reads, writes, verifies, and blank-checks SPI flash (and I²C EEPROMs) with a visual hex editor, on Windows, macOS, and Linux. Total Phase's Flash Center is Windows and Linux only.
What does the Pulsar add beyond SPI?
I²C, UART, RS-485, and six dedicated GPIO, plus CAN-FD and 1-Wire, and a programmable 1.2 to 3.3 V DUT-power rail. The Cheetah speaks SPI and nothing else.
Does the Pulsar support MIPI I3C?
No. The Pulsar covers SPI, I²C, UART, and RS-485, but not I3C. If you need MIPI I3C, reach for the Binho Supernova: it adds I3C alongside I²C, SPI, UART, and GPIO, and runs on the very same Mission Control 3 software and SDKs as the Pulsar, so moving between them is seamless.
Explore the Binho Supernova How do I control it?
The Mission Control 3 desktop app (Windows, macOS, Linux) gives you a full GUI with no code, plus Python, Java, and C/C++/C# SDKs for automated test. Nothing to license.
Move past the Cheetah.
Keep the high-speed SPI. Add every other bus, sturdier on the bench, ready for whatever your next board needs.
